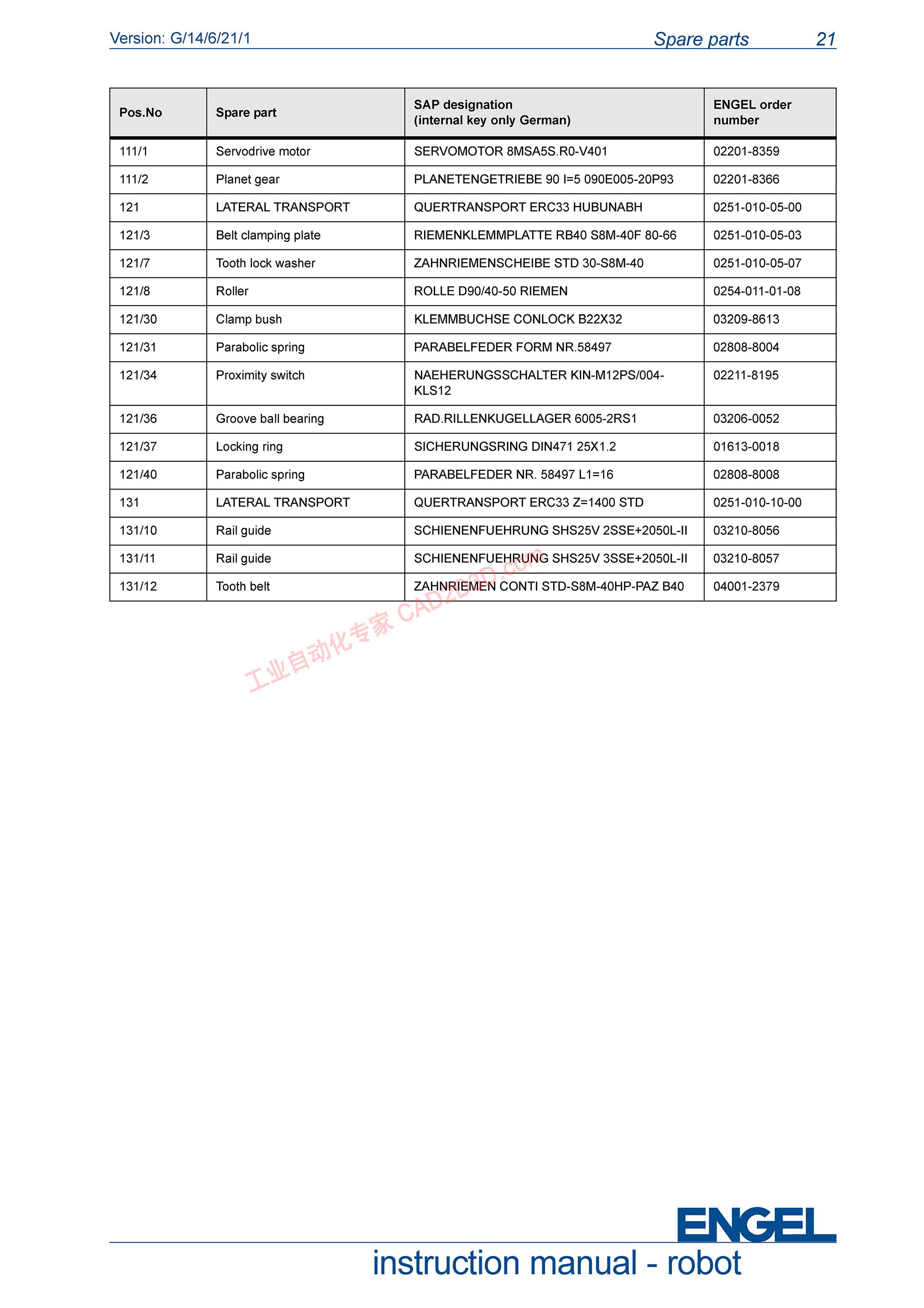

SPARE PARTS
Version: G/14/6/21/1 Spare parts 21
oS o SEareipart (si:t:;?aslilggya tci(r)\:;/ German) 52::5;0””
1111 Servodrive motor SERVOMOTOR 8MSA5S.R0-V401 02201-8359
111/2 Planet gear PLANETENGETRIEBE 90 1=5 090E005-20P93 02201-8366
121 LATERAL TRANSPORT QUERTRANSPORT ERC33 HUBUNABH 0251-010-05-00
121/3 Belt clamping plate RIEMENKLEMMPLATTE RB40 S8M-40F 80-66 0251-010-05-03
121/7 Tooth lock washer ZAHNRIEMENSCHEIBE STD 30-S8M-40 0251-010-05-07
121/8 Roller ROLLE D90/40-50 RIEMEN 0254-011-01-08
121/30 Clamp bush KLEMMBUCHSE CONLOCK B22X32 03209-8613
121/31 Parabolic spring PARABELFEDER FORM NR.58497 02808-8004
121/34 Proximity switch NAEHERUNGSSCHALTER KIN-M12PS/004- 02211-8195
KLS12
121/36 Groove ball bearing RAD.RILLENKUGELLAGER 6005-2RS1 03206-0052
121/37 Locking ring SICHERUNGSRING DIN471 25X1.2 01613-0018
121/40 Parabolic spring PARABELFEDER NR. 58497 L1=16 02808-8008
131 LATERAL TRANSPORT QUERTRANSPORT ERC33 Z=1400 STD 0251-010-10-00
131/10 Rail guide SCHIENENFUEHRUNG SHS25V 2SSE+2050L-II 03210-8056
131/11 Rail guide SCHIENENFUEHRUNG SHS25V 3SSE+2050L-lI 03210-8057
131/12 Tooth belt ZAHNRIEMEN CONTI STD-S8M-40HP-PAZ B40 04001-2379
ENGEL
instruction manual - robot
