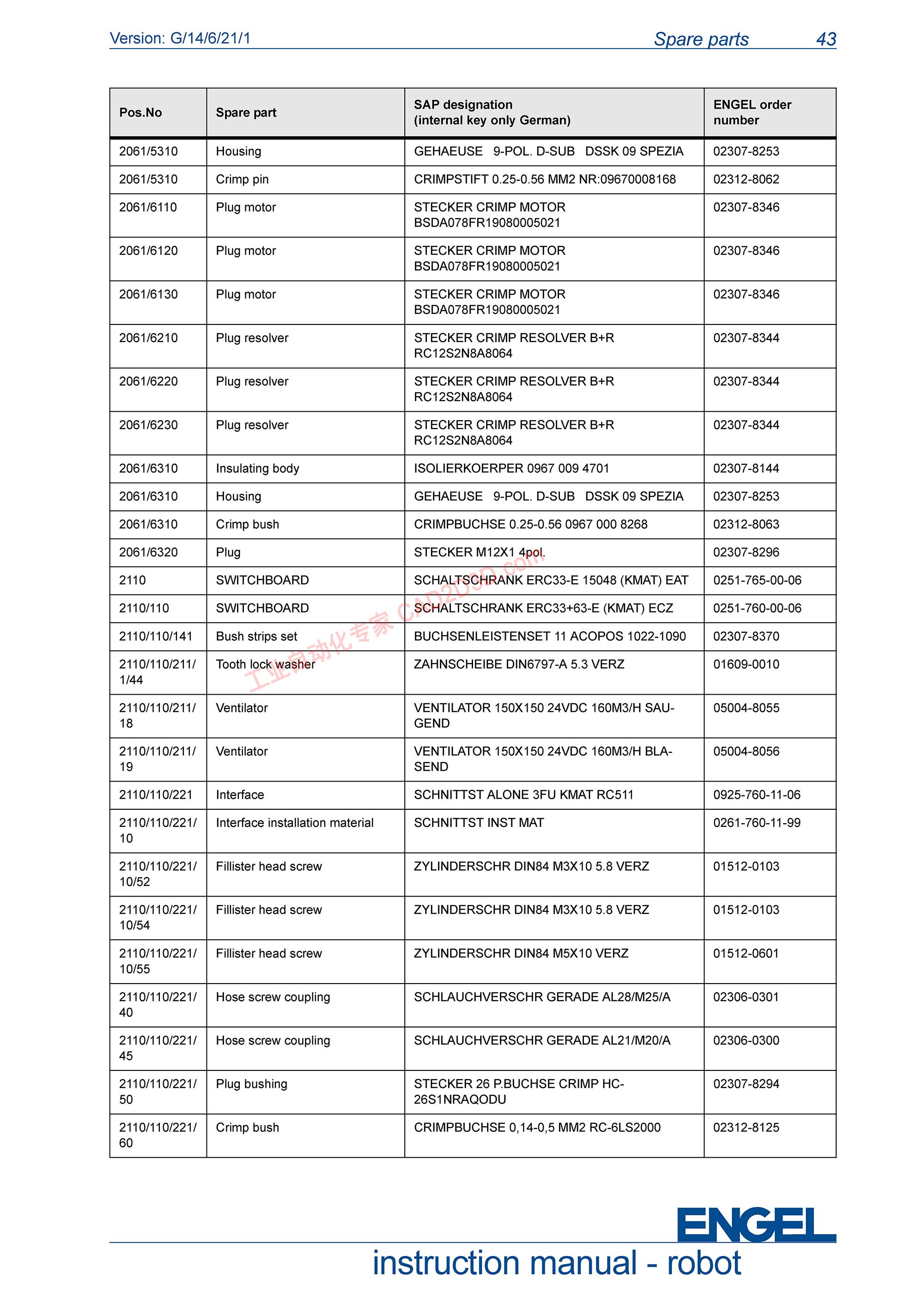

SPARE PARTS
Version: G/14/6/21/1 Spare parts 43
SAP designation ENGEL order
el Se (internal key only German) number
2061/5310 Housing GEHAEUSE 9-POL. D-SUB DSSK 09 SPEZIA 02307-8253
2061/5310 Crimp pin CRIMPSTIFT 0.25-0.56 MM2 NR:09670008168 02312-8062
2061/6110 Plug motor STECKER CRIMP MOTOR 02307-8346
BSDA078FR19080005021
2061/6120 Plug motor STECKER CRIMP MOTOR 02307-8346
BSDA078FR19080005021
2061/6130 Plug motor STECKER CRIMP MOTOR 02307-8346
BSDA078FR19080005021
2061/6210 Plug resolver STECKER CRIMP RESOLVER B+R 02307-8344
RC12S2N8A8064
2061/6220 Plug resolver STECKER CRIMP RESOLVER B+R 02307-8344
RC12S2N8A8064
2061/6230 Plug resolver STECKER CRIMP RESOLVER B+R 02307-8344
RC12S2N8A8064
2061/6310 Insulating body ISOLIERKOERPER 0967 009 4701 02307-8144
2061/6310 Housing GEHAEUSE 9-POL. D-SUB DSSK 09 SPEZIA 02307-8253
2061/6310 Crimp bush CRIMPBUCHSE 0.25-0.56 0967 000 8268 02312-8063
2061/6320 Plug STECKER M12X1 4pol. 02307-8296
2110 SWITCHBOARD SCHALTSCHRANK ERC33-E 15048 (KMAT) EAT 0251-765-00-06
2110/110 SWITCHBOARD SCHALTSCHRANK ERC33+63-E (KMAT) ECZ 0251-760-00-06
2110/110/141 Bush strips set BUCHSENLEISTENSET 11 ACOPOS 1022-1090 02307-8370
2110/110/211/ | Tooth lock washer ZAHNSCHEIBE DIN6797-A 5.3 VERZ 01609-0010
1/44
2110/110/211/ | Ventilator VENTILATOR 150X150 24VDC 160M3/H SAU- 05004-8055
18 GEND
2110/110/211/ | Ventilator VENTILATOR 150X150 24VDC 160M3/H BLA- 05004-8056
19 SEND
2110/110/221 Interface SCHNITTST ALONE 3FU KMAT RC511 0925-760-11-06
2110/110/221/ | Interface installation material SCHNITTST INST MAT 0261-760-11-99
10
2110/110/221/ | Fillister head screw ZYLINDERSCHR DIN84 M3X10 5.8 VERZ 01512-0103
10/52
2110/110/221/ | Fillister head screw ZYLINDERSCHR DIN84 M3X10 5.8 VERZ 01512-0103
10/54
2110/110/221/ | Fillister head screw ZYLINDERSCHR DIN84 M5X10 VERZ 01512-0601
10/55
2110/110/221/ | Hose screw coupling SCHLAUCHVERSCHR GERADE AL28/M25/A 02306-0301
40
2110/110/221/ | Hose screw coupling SCHLAUCHVERSCHR GERADE AL21/M20/A 02306-0300
45
2110/110/221/ | Plug bushing STECKER 26 P.BUCHSE CRIMP HC- 02307-8294
50 26S1NRAQODU
2110/110/221/ | Crimp bush CRIMPBUCHSE 0,14-0,5 MM2 RC-6LS2000 02312-8125
60
