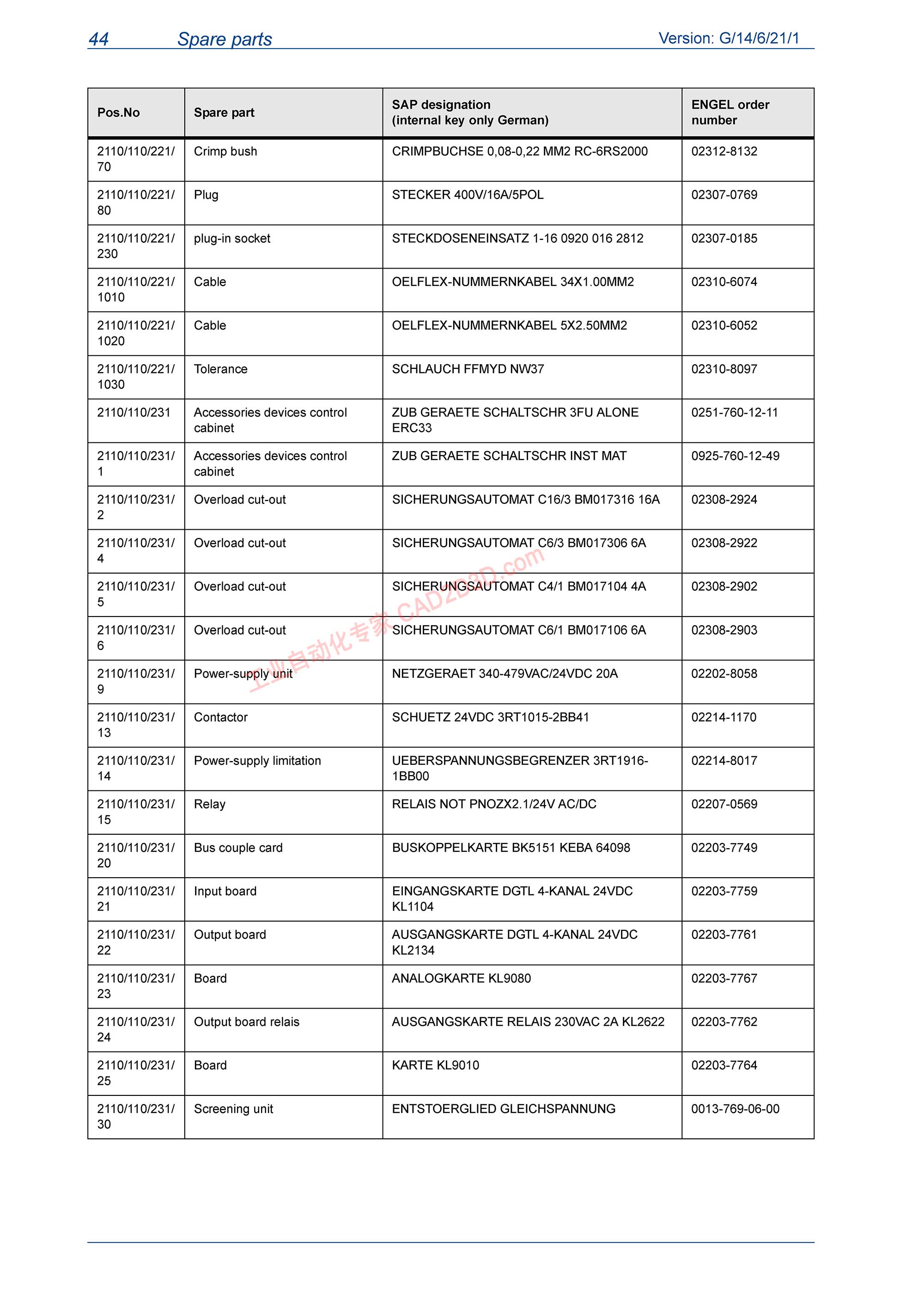

SPARE PARTS
44 Spare parts Version: G/14/6/21/1
SAP designation ENGEL order
FS Sa (internal key only German) number
2110/110/221/ | Crimp bush CRIMPBUCHSE 0,08-0,22 MM2 RC-6RS2000 02312-8132
70
2110/110/221/ | Plug STECKER 400V/16A/5POL 02307-0769
80
2110/110/221/ | plug-in socket STECKDOSENEINSATZ 1-16 0920 016 2812 02307-0185
230
2110/110/221/ | Cable OELFLEX-NUMMERNKABEL 34X1.00MM2 02310-6074
1010
2110/110/221/ | Cable OELFLEX-NUMMERNKABEL 5X2.50MM2 02310-6052
1020
2110/110/221/ | Tolerance SCHLAUCH FFMYD NW37 02310-8097
1030
2110/110/231 | Accessories devices control ZUB GERAETE SCHALTSCHR 3FU ALONE 0251-760-12-11
cabinet ERC33
2110/110/231/ | Accessories devices control ZUB GERAETE SCHALTSCHR INST MAT 0925-760-12-49
1 cabinet
2110/110/231/ | Overload cut-out SICHERUNGSAUTOMAT C16/3 BM017316 16A 02308-2924
2
2110/110/231/ | Overload cut-out SICHERUNGSAUTOMAT C6/3 BM017306 6A 02308-2922
4
2110/110/231/ | Overload cut-out SICHERUNGSAUTOMAT C4/1 BM017104 4A 02308-2902
5
2110/110/231/ | Overload cut-out SICHERUNGSAUTOMAT C6/1 BM017106 6A 02308-2903
6
2110/110/231/ | Power-supply unit NETZGERAET 340-479VAC/24VDC 20A 02202-8058
9
2110/110/231/ | Contactor SCHUETZ 24VDC 3RT1015-2BB41 02214-1170
13
2110/110/231/ | Power-supply limitation UEBERSPANNUNGSBEGRENZER 3RT1916- 02214-8017
14 1BB00
2110/110/231/ | Relay RELAIS NOT PNOZX2.1/24V AC/DC 02207-0569
15
2110/110/231/ | Bus couple card BUSKOPPELKARTE BK5151 KEBA 64098 02203-7749
20
2110/110/231/ | Input board EINGANGSKARTE DGTL 4-KANAL 24VDC 02203-7759
21 KL1104
2110/110/231/ | Output board AUSGANGSKARTE DGTL 4-KANAL 24VDC 02203-7761
22 KL2134
2110/110/231/ | Board ANALOGKARTE KL9080 02203-7767
23
2110/110/231/ | Output board relais AUSGANGSKARTE RELAIS 230VAC 2A KL2622 02203-7762
24
2110/110/231/ | Board KARTE KL9010 02203-7764
25
2110/110/231/ | Screening unit ENTSTOERGLIED GLEICHSPANNUNG 0013-769-06-00
30
