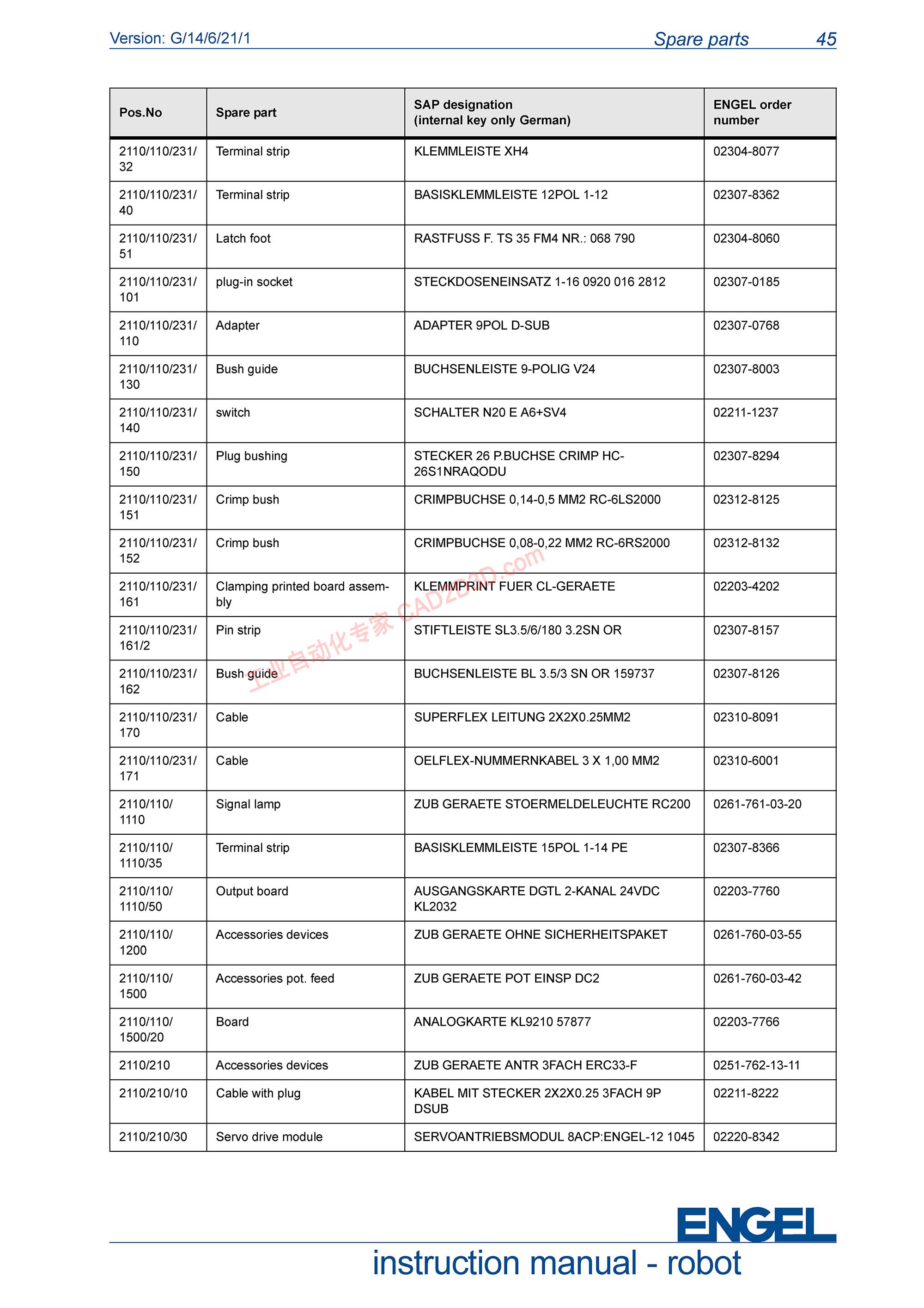

SPARE PARTS
Version: G/14/6/21/1 Spare parts 45
SAP designation ENGEL order
el Se (internal key only German) number
2110/110/231/ | Terminal strip KLEMMLEISTE XH4 02304-8077
32
2110/110/231/ | Terminal strip BASISKLEMMLEISTE 12POL 1-12 02307-8362
40
2110/110/231/ | Latch foot RASTFUSS F. TS 35 FM4 NR.: 068 790 02304-8060
51
2110/110/231/ | plug-in socket STECKDOSENEINSATZ 1-16 0920 016 2812 02307-0185
101
2110/110/231/ | Adapter ADAPTER 9POL D-SUB 02307-0768
110
2110/110/231/ | Bush guide BUCHSENLEISTE 9-POLIG V24 02307-8003
130
2110/110/231/ | switch SCHALTER N20 E A6+SV4 02211-1237
140
2110/110/231/ | Plug bushing STECKER 26 PBUCHSE CRIMP HC- 02307-8294
150 26S1NRAQODU
2110/110/231/ | Crimp bush CRIMPBUCHSE 0,14-0,5 MM2 RC-6LS2000 02312-8125
151
2110/110/231/ | Crimp bush CRIMPBUCHSE 0,08-0,22 MM2 RC-6RS2000 02312-8132
152
2110/110/231/ | Clamping printed board assem- KLEMMPRINT FUER CL-GERAETE 02203-4202
161 bly
2110/110/231/ | Pin strip STIFTLEISTE SL3.5/6/180 3.2SN OR 02307-8157
161/2
2110/110/231/ | Bush guide BUCHSENLEISTE BL 3.5/3 SN OR 159737 02307-8126
162
2110/110/231/ | Cable SUPERFLEX LEITUNG 2X2X0.25MM2 02310-8091
170
2110/110/231/ | Cable OELFLEX-NUMMERNKABEL 3 X 1,00 MM2 02310-6001
171
2110/110/ Signal lamp ZUB GERAETE STOERMELDELEUCHTE RC200 | 0261-761-03-20
1110
2110/110/ Terminal strip BASISKLEMMLEISTE 15POL 1-14 PE 02307-8366
1110/35
2110/110/ Output board AUSGANGSKARTE DGTL 2-KANAL 24VDC 02203-7760
1110/50 KL2032
2110/110/ Accessories devices ZUB GERAETE OHNE SICHERHEITSPAKET 0261-760-03-55
1200
2110/110/ Accessories pot. feed ZUB GERAETE POT EINSP DC2 0261-760-03-42
1500
2110/110/ Board ANALOGKARTE KL9210 57877 02203-7766
1500/20
2110/210 Accessories devices ZUB GERAETE ANTR 3FACH ERC33-F 0251-762-13-11
2110/210/10 Cable with plug KABEL MIT STECKER 2X2X0.25 3FACH 9P 02211-8222
DSUB
2110/210/30 Servo drive module SERVOANTRIEBSMODUL 8ACP:ENGEL-12 1045 | 02220-8342
ENGEL
instruction manual - robot
