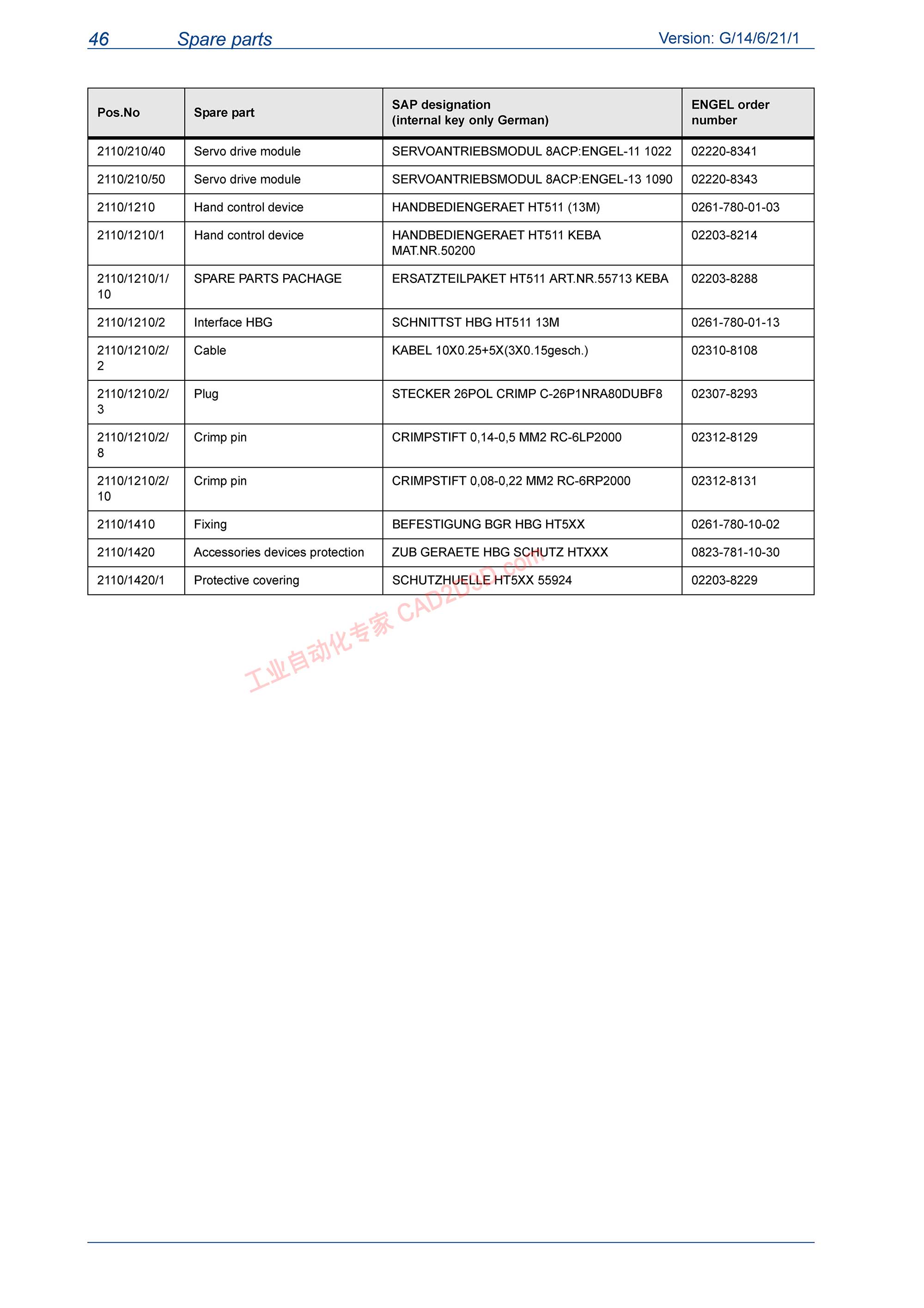

SPARE PARTS
46 Spare parts Version: G/14/6/21/1
SAP designation ENGEL order
FS Sa (internal key only German) number
2110/210/40 Servo drive module SERVOANTRIEBSMODUL 8ACP:ENGEL-11 1022 | 02220-8341
2110/210/50 Servo drive module SERVOANTRIEBSMODUL 8ACP:ENGEL-13 1090 | 02220-8343
2110/1210 Hand control device HANDBEDIENGERAET HT511 (13M) 0261-780-01-03
2110/1210/1 Hand control device HANDBEDIENGERAET HT511 KEBA 02203-8214
MAT.NR.50200
2110/1210/1/ SPARE PARTS PACHAGE ERSATZTEILPAKET HT511 ART.NR.55713 KEBA | 02203-8288
10
2110/1210/2 Interface HBG SCHNITTST HBG HT511 13M 0261-780-01-13
2110/1210/2/ Cable KABEL 10X0.25+5X(3X0.15gesch.) 02310-8108
2
2110/1210/2/ Plug STECKER 26POL CRIMP C-26P1NRA8SODUBF8 02307-8293
3
2110/1210/2/ Crimp pin CRIMPSTIFT 0,14-0,5 MM2 RC-6LP2000 02312-8129
8
2110/1210/2/ Crimp pin CRIMPSTIFT 0,08-0,22 MM2 RC-6RP2000 02312-8131
10
2110/1410 Fixing BEFESTIGUNG BGR HBG HT5XX 0261-780-10-02
2110/1420 Accessories devices protection ZUB GERAETE HBG SCHUTZ HTXXX 0823-781-10-30
2110/1420/1 Protective covering SCHUTZHUELLE HT5XX 55924 02203-8229
