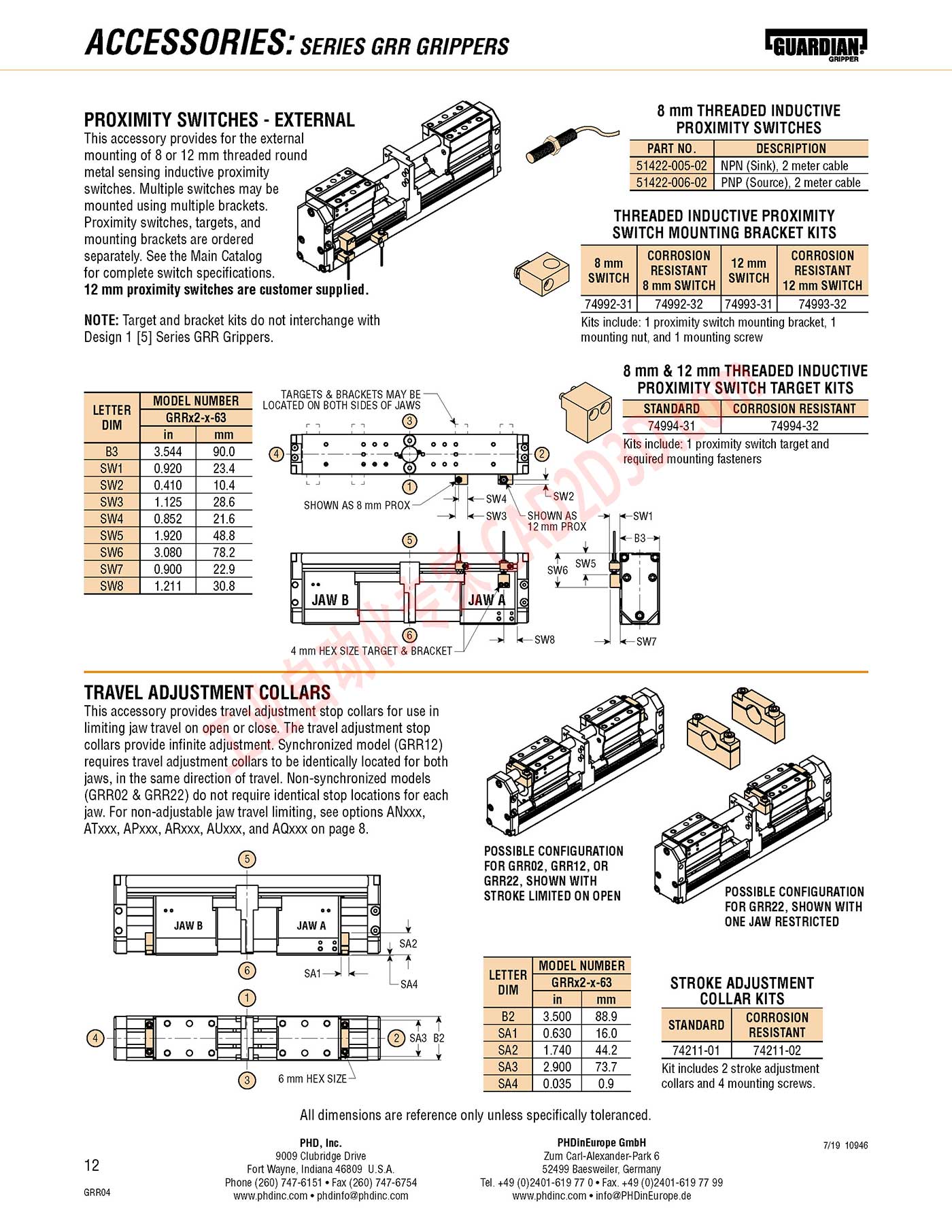

Accessories
ACCESSORIES: series GrR GRIPPERS [GUARDIAN]
8 mm THREADED INDUCTIVE
PROXIMITY SWITCHES
W PART N0 DESCRIPTION
51422-005-02 [ NPN (Sink), 2 meter cable
51422-006-02 P (Source), 2 meter cable
THREADED INDUCTIVE PROXIMITY
SWITCH MOUNTING BRACKET KITS
PROXIMITY SWITCHES - EXTERNAL
This accessory provides for the external
mounting of 8 or 12 mm threaded round
metal sensing inductive proximity
switches. Multiple switches may be
mounted using multiple brackets.
Proximity switches, targets, and
mounting brackets are ordered
separately. See the Main Catalog P 8 CORROSION 12 CORROSION
for complete switch specifications. S KD 局 RESISTANT RESISTANT
12 mm proximity switches are customer supplied. 8 mm SWITCH 12 mm SWITCH
74992-31 74992-32 [74993-31 74993-32
NOTE: Target and bracket kits do not interchange with Kits include: 1 proximity switch mounting bracket, 1
Design 1 [5] Series GRR Grippers. mounting nut, and 1 mounting screw
8 mm & 12 mm THREADED INDUCTIVE
PROXIMITY SWITCH TARGET KITS
TARGETS & BRACKETS MAY BE —
LETTER M%':‘E;xgflgm EOCATED N BOTHSIDES OF-IANE! 7 STANDARD | CORROSION RESISTANT
DIM = 74994-31 74994-32
in mm
B3 3.544 90.0
SW1 0.920 23.4
Kits include: 1 proximity switch target and
required mounting fasteners
SW2 | 0410 | 104 U e A B
SW3 1.125 286 SHOWN AS 8 mm PROX— 一 t” WAL .
SW4 | 0852 | 216 sw
w5 | 190 | 488 ;
SW6 3.080 78.2
SW7 0.900 22.9
SW8 1.211 30.8
4 mm HEX SIZE TARGET & BRACKET —
TRAVEL ADJUSTMENT COLLARS
This accessory provides travel adjustment stop collars for use in
limiting jaw travel on open or close. The travel adjustment stop
collars provide infinite adjustment. Synchronized model (GRR12)
requires travel adjustment collars to be identically located for both
jaws, in the same direction of travel. Non-synchronized models
(GRR02 & GRR22) do not require identical stop locations for each
jaw. For non-adjustable jaw travel limiting, see options ANxxx,
ATxxx, APxxx, ARxxx, AUxxx, and AQxxx on page 8.
@ POSSIBLE CONFIGURATION
- FOR GRRO02, GRR12, OR
GRR22, SHOWN WITH
T STROKE LIMITED ON OPEN POSSIBLE CONFIGURATION
| FOR GRR22, SHOWN WITH
ONE JAW RESTRICTED
LETTER MODEL NUMBER
DIM GRRx2-x-63 STROKE ADJUSTMENT
in mm COLLARKITS
B2 3500 | 889 CORROSION
6 © o 1
@ = @ w2 SA | 0630 | 160 STANDARD | RESISTANT
© o o v SA2 | 1740 | 442 74211-01 74211-02
1 \ SA3 2900 | 737 Kit includes 2 stroke adjustment
图 smmhEXSIE” SA4 | 0035 | 09 collars and 4 mounting screws.
All dimensions are reference only unless specifically toleranced.
