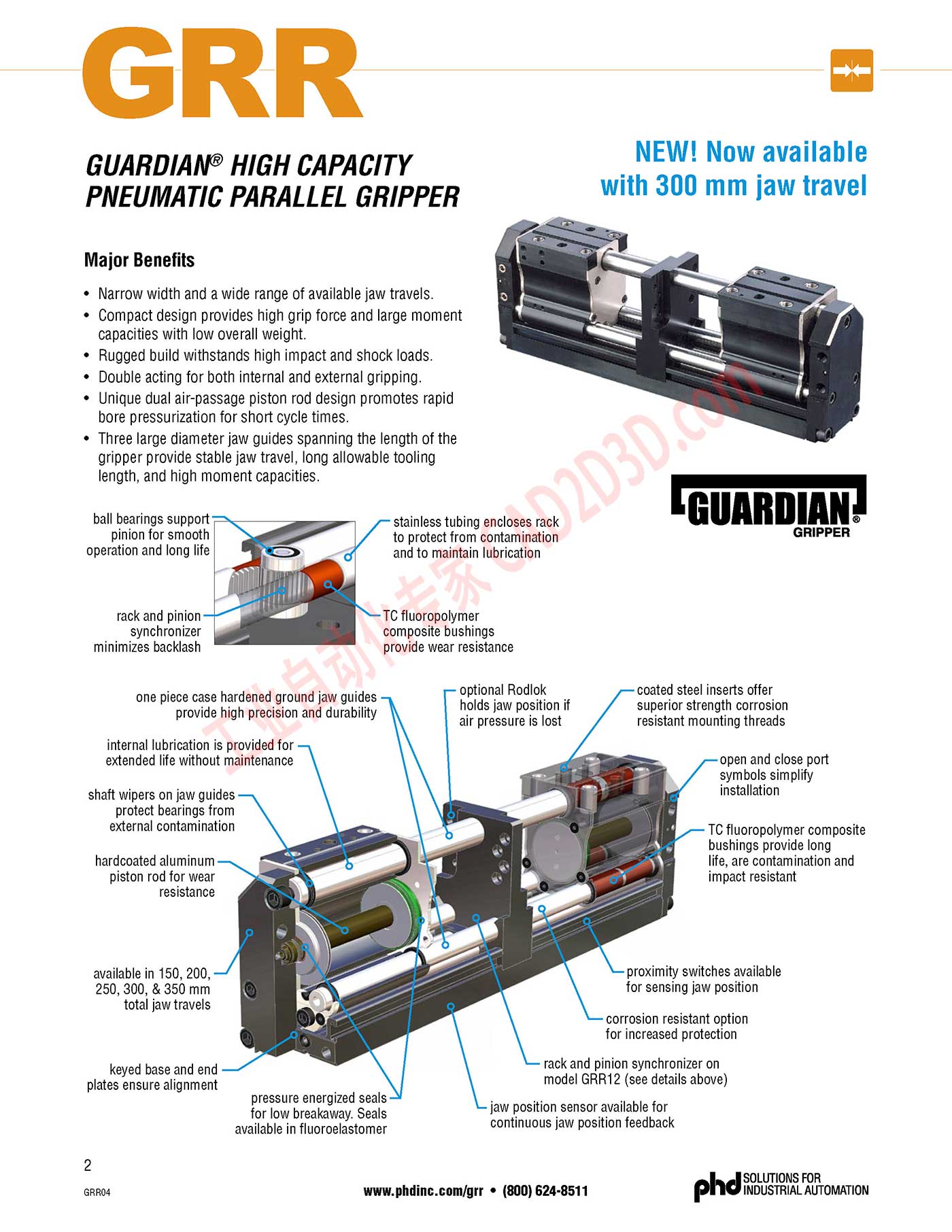

GUARDIAN® HIGH CAPACITY N
PNEUMATIC PARALLEL GRIPPER 有
Major Benefits
+ Narrow width and a wide range of available jaw travels.
* Compact design provides high grip force and large moment
capacities with low overall weight.
* Rugged build withstands high impact and shock loads.
+ Double acting for both internal and external gripping.
Unique dual air-passage piston rod design promotes rapid
bore pressurization for short cycle times.
Three large diameter jaw guides spanning the length of the
gripper provide stable jaw travel, long allowable tooling
length, and high moment capacities.
stainless tubing encloses rack G“Ann ANE
to protect from contamination GRIPPER
and to maintain lubrication
.
ball bearings support
pinion for smooth
operation and long life
rack and pinion
synchronizer
minimizes backlash
TC fluoropolymer
composite bushings
provide wear resistance
optional Rodlok coated steel inserts offer
holds jaw position if superior strength corrosion
air pressure is lost resistant mounting threads
one piece case hardened ground jaw guides
provide high precision and durability
internal lubrication is provided for
extended life without maintenance = open and close port
symbols simplify
shaft wipers on jaw guides ) installation
protect bearings from _
external contamination TC fluoropolymer composite
N bushings provide long
hardcoated aluminum b life, are contamination and
piston rod for wear impact resistant
resistance
available in 150, 200, proximity switches available
250, 300, & 350 mm 2 for sensing jaw position
total jaw travels
corrosion resistant option
for increased protection
rack and pinion synchronizer on
plat;;e{iglia:;%?]%eefi model GRR12 (see details above)
pressure energized seals
for low breakaway. Seals
available in fluoroelastomer
jaw position sensor available for
continuous jaw position feedback
