Models

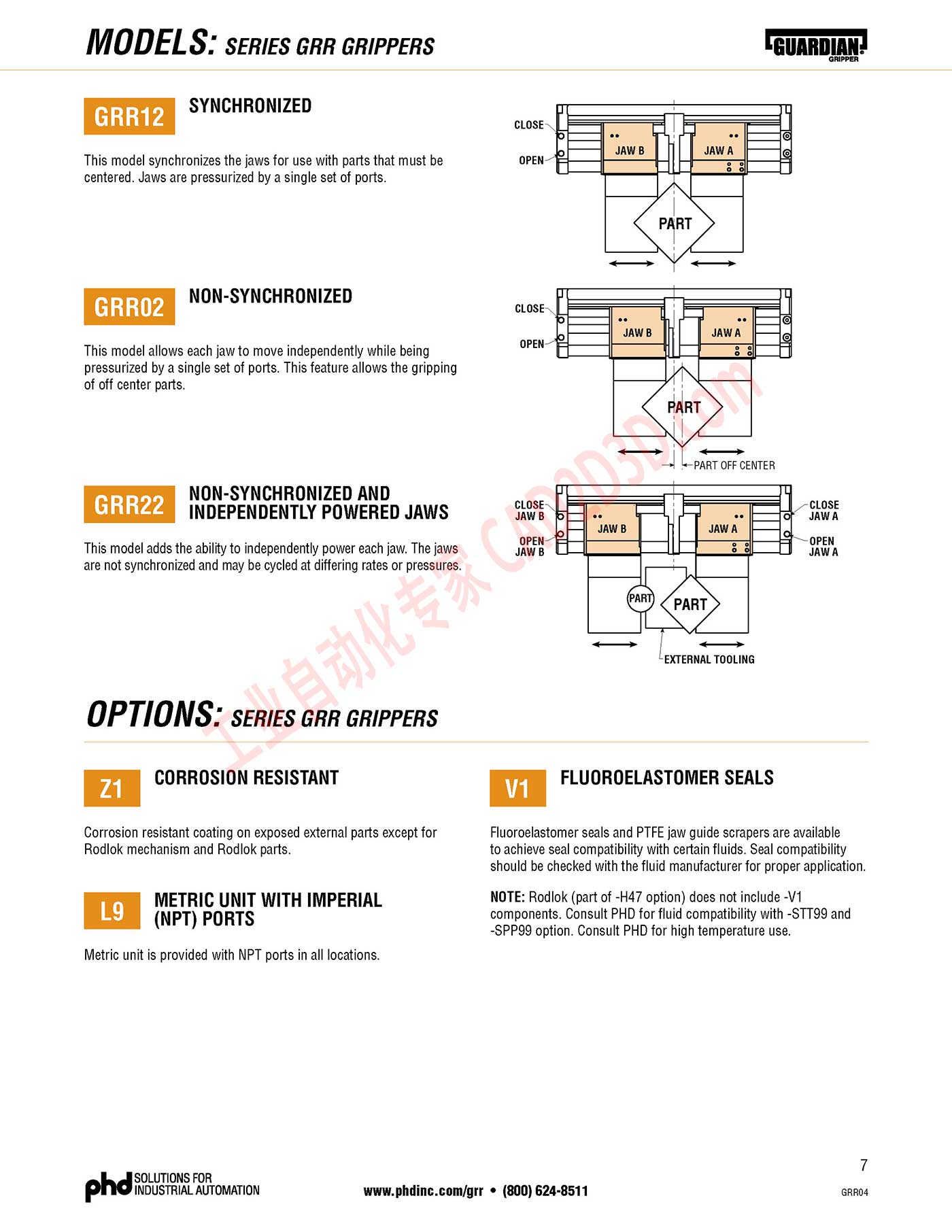

MODELS: series GRR GRIPPERS
T SYNCHRONIZED
This model synchronizes the jaws for use with parts that must be
centered. Jaws are pressurized by a single set of ports.
| GRR02 | NON-SYNCHRONIZED
This model allows each jaw to move independently while being
pressurized by a single set of ports. This feature allows the gripping
of off center parts.
NON-SYNCHRONIZED AND
INDEPENDENTLY POWERED JAWS
This model adds the ability to independently power each jaw. The jaws
are not synchronized and may be cycled at differing rates or pressures.
OPTIONS: stries GRR GRIPPERS
m CORROSION RESISTANT
Corrosion resistant coating on exposed external parts except for
Rodlok mechanism and Rodlok parts.
METRIC UNIT WITH IMPERIAL
(NPT) PORTS
Metric unit is provided with NPT ports in all locations.
SOLUTIONS FOR
INDUSTRIAL AUTOMATION
[GUARDIAN)
CLOSE-~
JAW A
OPEN 一
pr
— Y —
CLOSE
DOPEN 一 |
1
PART
|
SO —
PART OFF CENTER
CLOSE- | 一 CLOSE
JAW B .. i JAWA
JAW B JAW A
OPEN 一 3 0PEN
JAWB 二 JAWA
AR < PART
— | —
LEXTERNAL TOOLING
m FLUOROELASTOMER SEALS
Fluoroelastomer seals and PTFE jaw guide scrapers are available
to achieve seal compatibility with certain fluids. Seal compatibility
should be checked with the fluid manufacturer for proper application.
NOTE: Rodlok (part of -H47 option) does not include -V1
components. Consult PHD for fluid compatibility with -STT99 and
-SPP99 option. Consult PHD for high temperature use.
www.phdinc.com/grr * (800) 624-8511 GRRO4
