. Product Bulletin
easy-e Cryogenic Valves 51.1:easy-e Cryogenic
D102189X012 August 2012

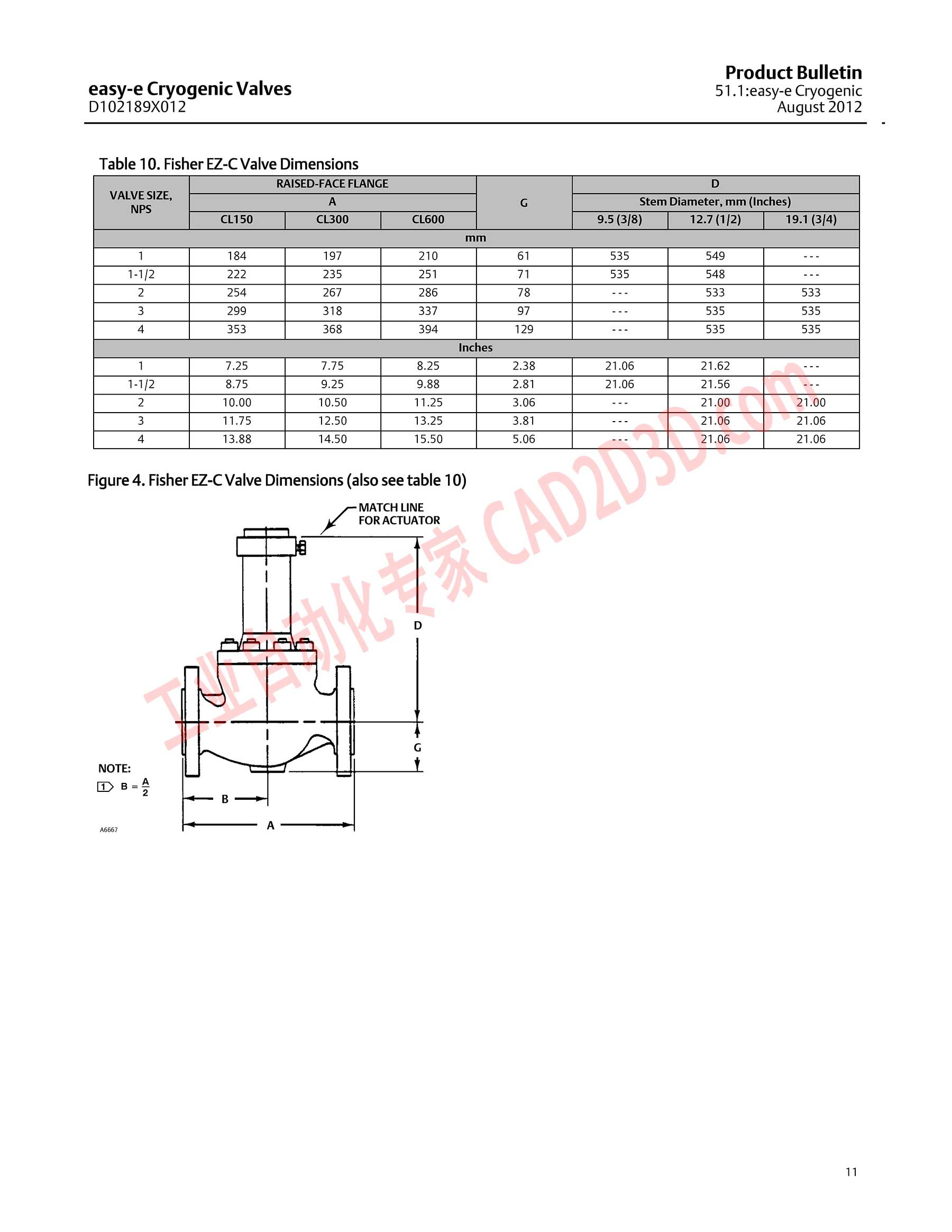

Table 10. Fisher EZ-C Valve Dimensions
RAISED-FACE FLANGE D
es LE A G Stem Diameter mm (Inches)
CL150 CL300 CL600 9.5 (3[8) 12.7(1]2) 19.1(3]4)
mm
1 184 197 210 61 535 549 ---
1-1/2 222 235; 251 71 535 548 ---
2 254 267 286 78 --- 533 533
299 318 337 97 --- 535 535
4 353 368 394 129 --- 535 535
Inches
1 7.29 7.75 8.25 2.38 21.06 21.62 ---
1-1/2 8.75 9.25 9.88 2.81 21.06 21.56 ---
2 10.00 10.50 11.25 3.06 = 21.00 21.00
11.75 12.50 13.25 3.81 21.06 21.06
4 13.88 14.50 15.50 5.06 - 21.06 21.06
Figure 4. Fisher EZ-C Valve Dimensions (also see table 10)
MATCH LINE
/_ FORACTUATOR
A6667
11
