装配图 Fisher EZ-C Valve Assembly Detail
Product Bulletin
easy-e Cryogenic Valves 51.1:easy-e Cryogenic
D102189X012 August 2012

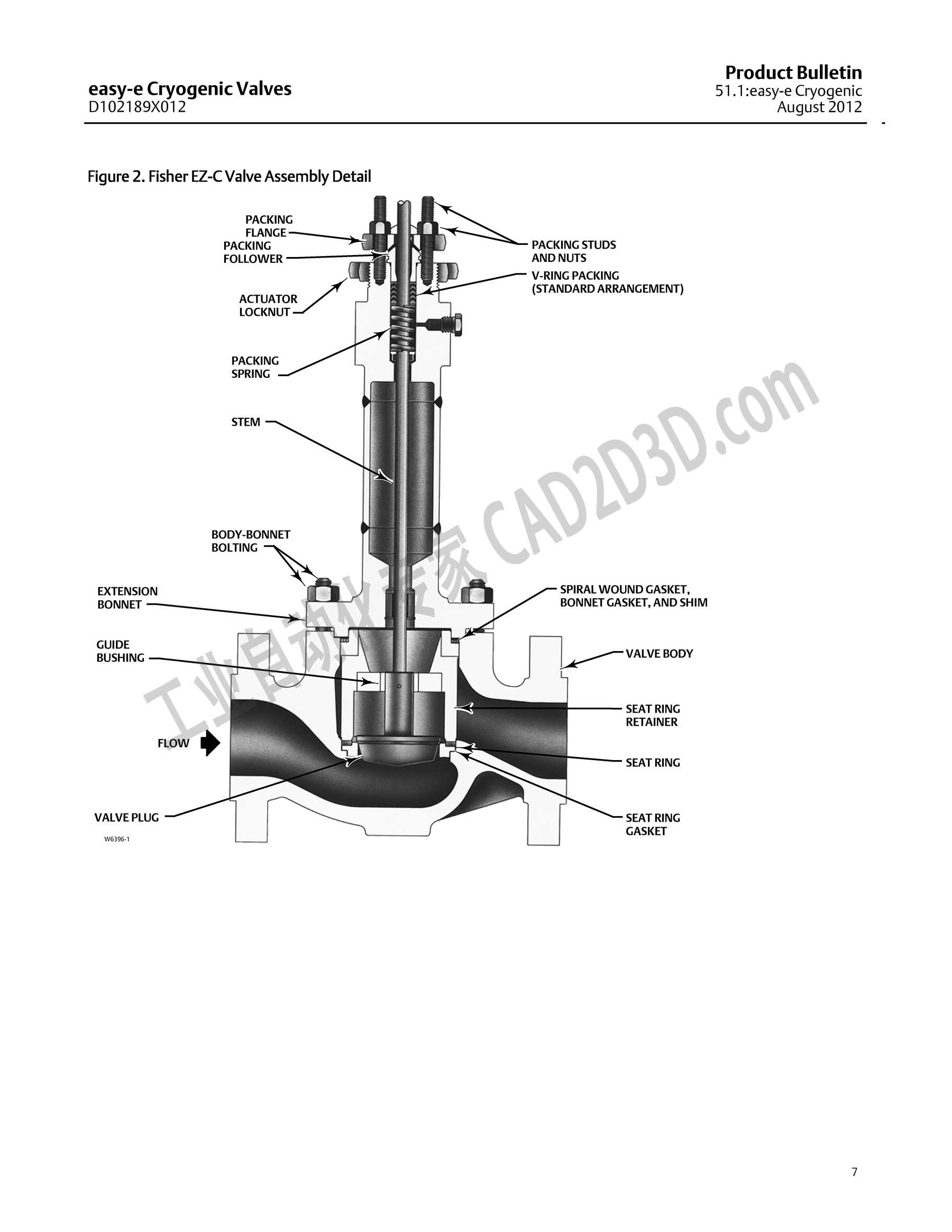

Figure 2. Fisher EZ-C Valve Assembly Detail
PACKING
FLANGE
PACKING PACKING STUDS
FOLLOWER AND NUTS
V-RING PACKING
(STANDARD ARRANGEMENT)
ACI'UATOR_/
LOCKNUT
PACKING
SPRING
STEM
BODY-BONNET
BOLTING
SPIRAL WOUND GASKET,
EXTENSION
BONNET GASKET, AND SHIM
BONNET \
GUIDE
BUSHING
| 一 一 VALVE BODY
SEAT RING
RETAINER
SEAT RING
VALVE PLUG
W6396-1
