螺栓连接侧装 6" 及以上 BOLTED BODY SIDE-ENTRY 6" AND LARGER - Mod VB3

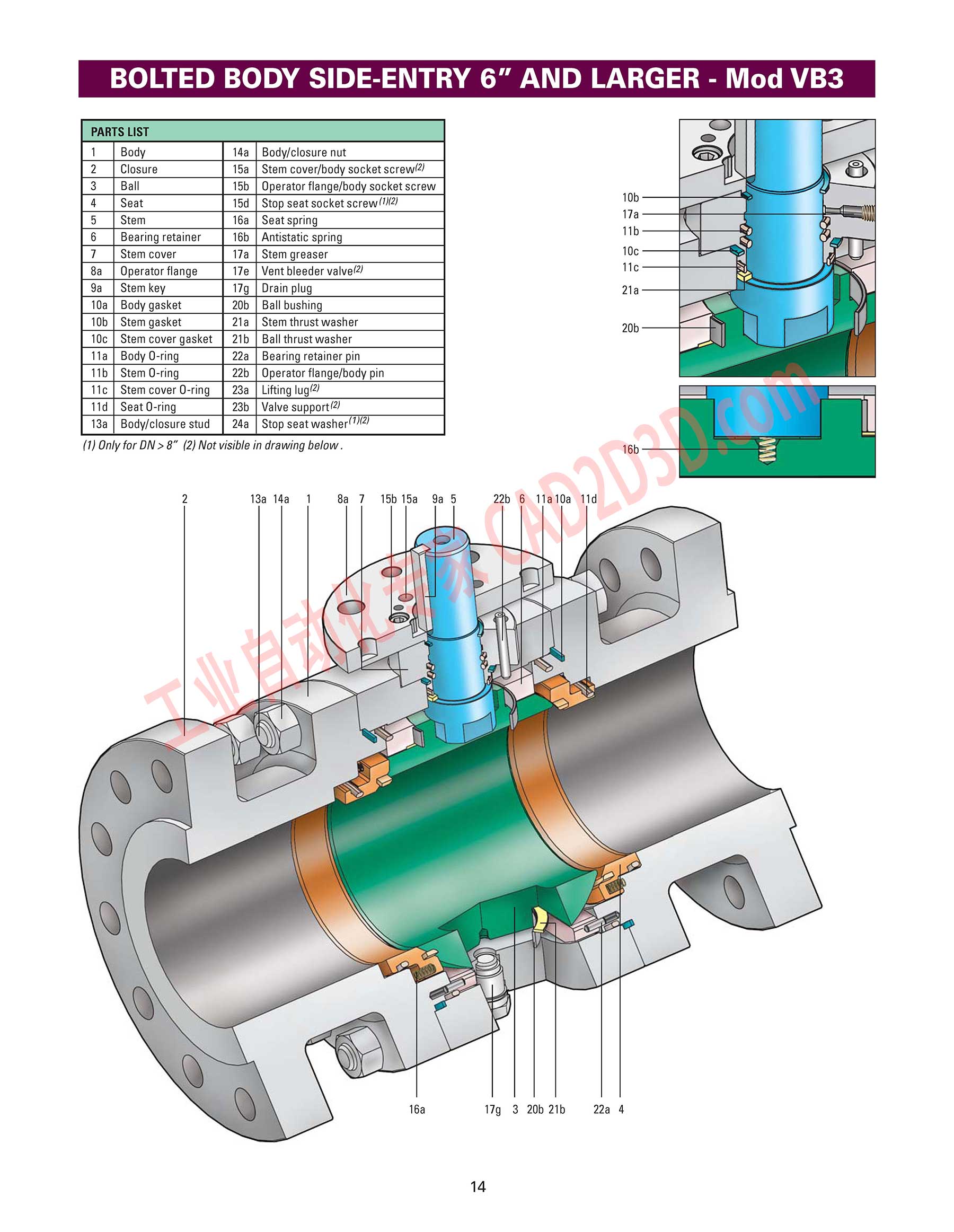

BOLTED BODY SIDE-ENTRY 6” AND LARGER - Mod VB3
Body/closure nut
Closure Stem cover/body socket screwf?
Ball Operator flange/body socket screw
Seat Stop seat socket screw (12)
Stem Seat spring
Bearing retainer Antistatic spring
Stem cover Stem greaser
Operator flange Vent bleeder valvel?
Stem key Drain plug
Body gasket Ball bushing
Stem gasket Stem thrust washer
Stem cover gasket Ball thrust washer
Body 0-ring Bearing retainer pin
Stem 0-ring Operator flange/body pin
Stem cover 0-ring Lifting lug/?/
Seat 0-ring 23b | Valve support/?
Body/closure stud | 24a | Stop seat washer(”?
(1) Only for DN > 8" (2) Not visible in drawing below .
13a 14a 1 8a 7 15b15a 9a 5 22b 6 11a10a 11d
17g9 3 20b 21b 22a 4
14
