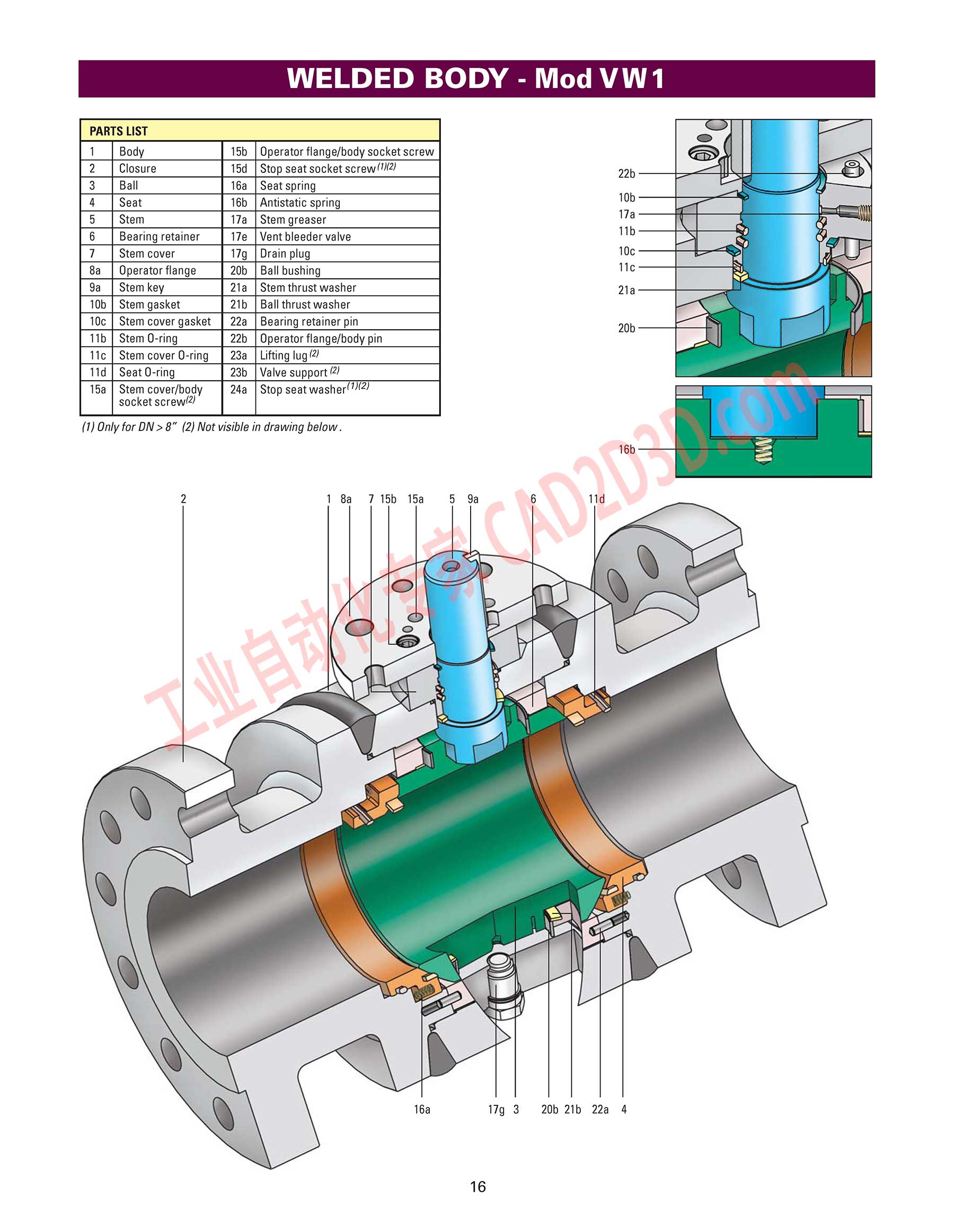

WELDED BODY - Mod VW1
Operator flange/body socket screw
Closure Stop seat socket screw (/2
Ball Seat spring
Seat Antistatic spring
Stem Stem greaser
Bearing retainer Vent bleeder valve
Stem cover Drain plug
Operator flange Ball bushing
Stem key Stem thrust washer
Stem gasket Ball thrust washer
Stem cover gasket Bearing retainer pin
Stem 0-ring Operator flange/body pin
Stem cover 0-ring Lifting lug 2/
Seat 0-ring Valve support 2/
Stem cover/body Stop seat washer(72/
socket screw(?
(1) Only for DN > 8” (2) Not visible in drawing below .
