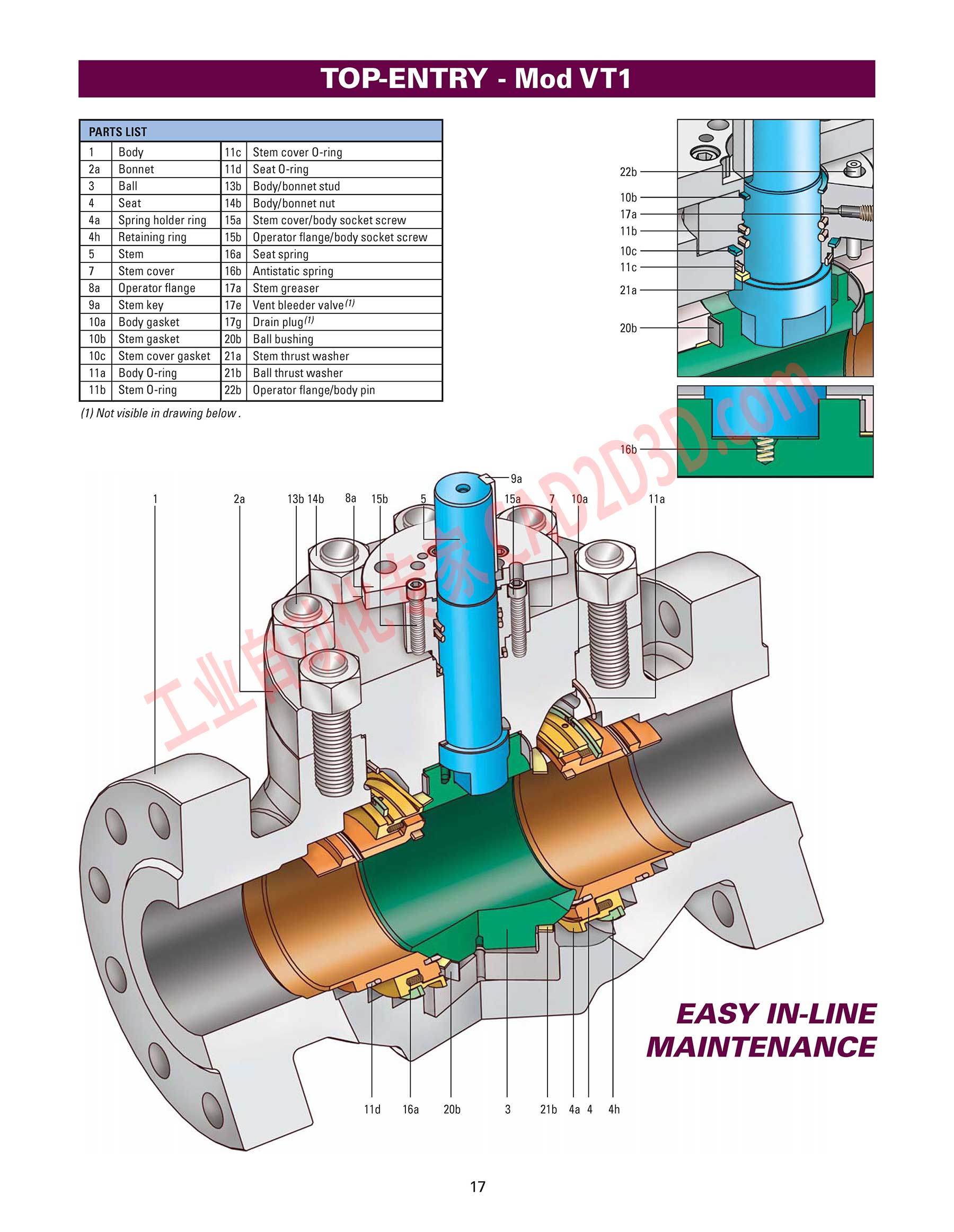

顶装 TOP-ENTRY -Mod VT1
-ENTRY - Mod VT1
Stem cover 0-ring
Bonnet Seat 0-ring
Ball Body/bonnet stud
Seat Body/bonnet nut
Spring holder ring Stem cover/body socket screw
Retaining ring Operator flange/body socket screw
Stem Seat spring
Stem cover Antistatic spring
Operator flange Stem greaser
Stem key Vent bleeder valve(!)
Body gasket Drain plug /"
Stem gasket Ball bushing
Stem cover gasket Stem thrust washer
Body 0-ring Ball thrust washer
Stem O-ring Operator flange/body pin
(1) Not visible in drawing below .
EASY IN-LINE
MAINTENANCE
21b 4a 4 4h
17
