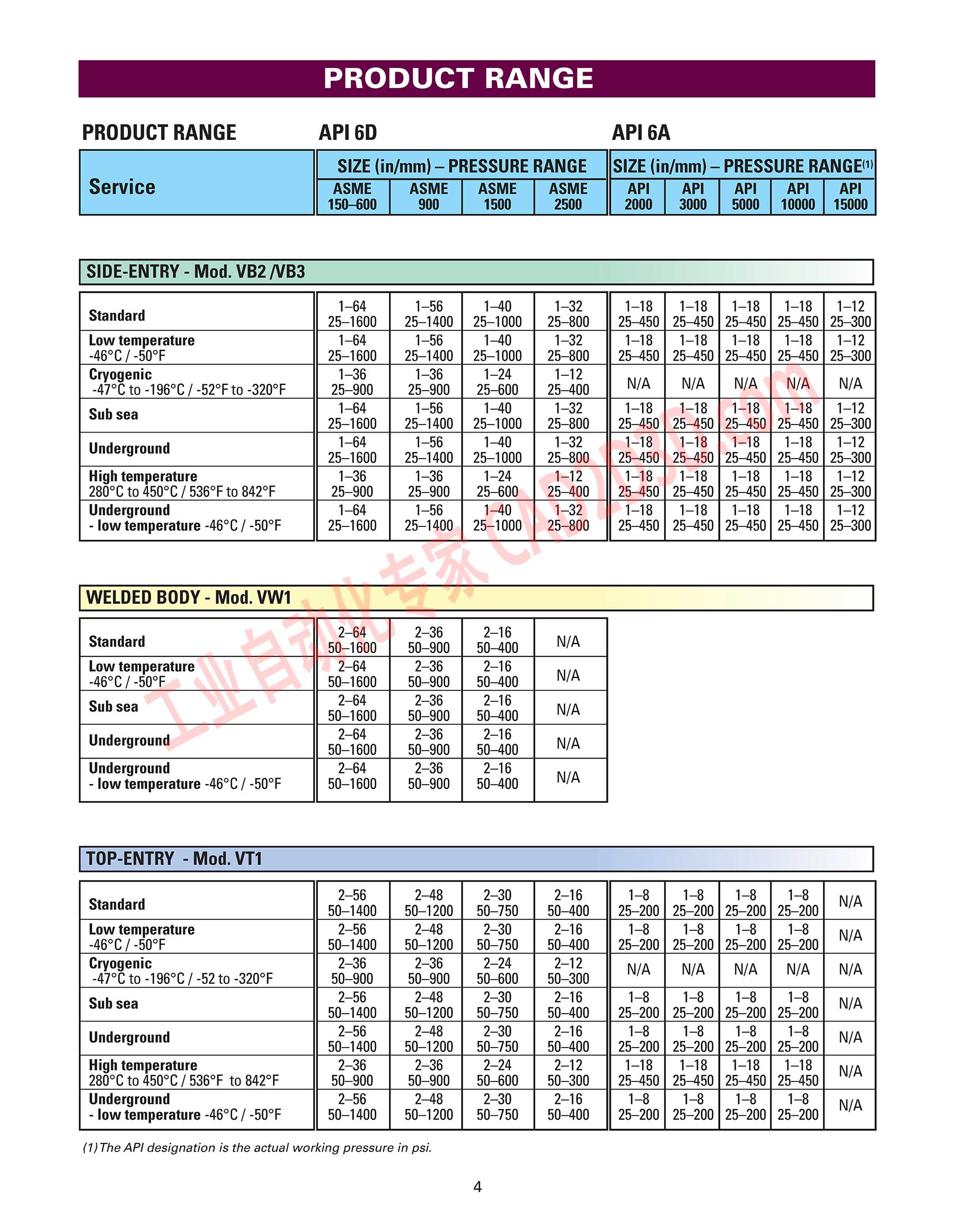

PRODUCT RANGE PRODUCT RANGE SIDE-ENTRY - Mod. VB2 /VB3 Standard API 6D 1-64 1-56 1-40 25-1600 | 25-1400 | 25-1000 Low temperature -46°C / -50°F 1-64 1-56 1-40 25-1600 | 25-1400 | 25-1000 Cryogenic -47°C to -196°C / -52°F to -320°F 1-36 1-36 1-24 25-900 25-900 | 25-600 Sub sea 1-64 1-56 1-40 25-1600 | 25-1400 | 25-1000 Underground 1-64 1-56 1-40 25-1600 | 25-1400 | 25-1000 High temperature 280°C to 450°C / 536°F to 842°F 1-36 1-36 1-24 25-900 25-900 | 25-600 Underground - low temperature -46°C / -50°F WELDED BODY - Mod. VW1 Standard 1-64 1-56 1-40 25-1600 | 25-1400 | 25-1000 2-64 50-1600 Low temperature -46°C / -50°F 2-64 50-1600 Sub sea 2-64 50-1600 Underground Underground - low temperature -46°C / -50°F TOP-ENTRY - Mod. VT1 Standard 2-64 50-1600 2-64 2-36 2-16 50-1600 50-900 | 50-400 2-56 50-1400 Low temperature -46°C / -50°F 2-56 50-1400 Cryogenic -47°C to -196°C / -52 to -320°F 2-36 50-900 Sub sea 2-56 50-1400 Underground 2-56 50-1400 High temperature 280°C to 450°C / 536°F to 842°F 2-36 50-900 Underground - low temperature -46°C / -50°F 2-56 50-1400 (1) The API designation is the actual working pressure in psi.
