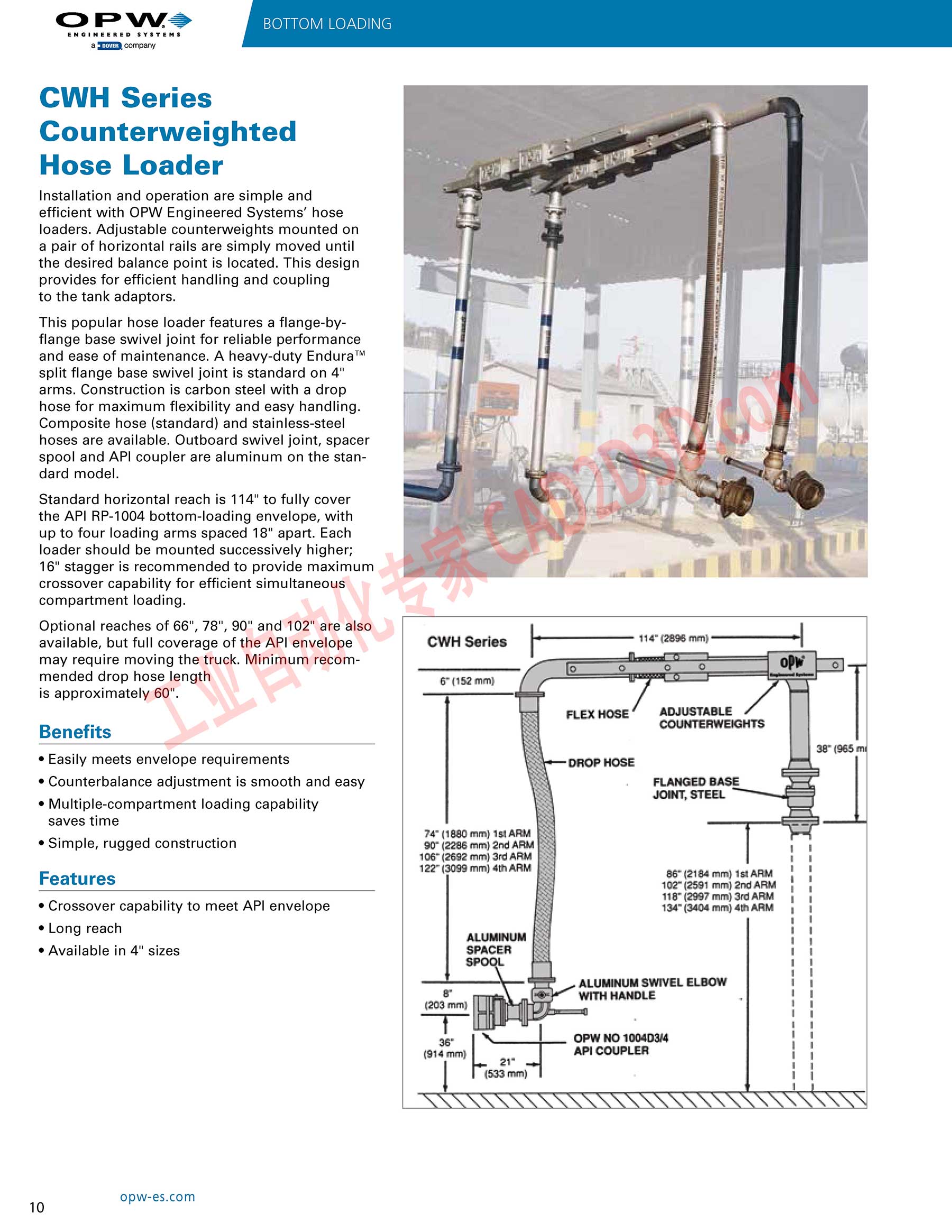

CWH Series
Counterweighted
Hose Loader
Installation and operation are simple and
efficient with OPW Engineered Systems' hose
loaders. Adjustable counterweights mounted on
a pair of horizontal rails are simply moved until
the desired balance point is located. This design
provides for efficient handling and coupling
to the tank adaptors.
This popular hose loader features a flange-by-
flange base swivel joint for reliable performance
and ease of maintenance. A heavy-duty Endura™
split flange base swivel joint is standard on 4"
arms. Construction is carbon steel with a drop
hose for maximum flexibility and easy handling.
Composite hose (standard) and stainless-steel
hoses are available. Outboard swivel joint, spacer
spool and API coupler are aluminum on the stan-
dard model.
Standard horizontal reach is 114" to fully cover
the API RP-1004 bottom-loading envelope, with
up to four loading arms spaced 18" apart. Each
loader should be mounted successively higher;
16" stagger is recommended to provide maximum
crossover capability for efficient simultaneous
compartment loading.
Optional reaches of 66", 78", 90" and 102" are also
available, but full coverage of the APl envelope
may require moving the truck. Minimum recom-
mended drop hose length
is approximately 60".
Benefits
* Easily meets envelope requirements
* Counterbalance adjustment is smooth and easy
* Multiple-compartment loading capability
saves time
* Simple, rugged construction
Features
* Crossover capability to meet APl envelope
* Long reach
® Available in 4" sizes
opw-es.com
10 P
747 (1880 mm}) 151 ARM
86" (2184 mm) 1t ARM
102" (2581 mm) 2nd ARM
118" (2997 mm) 3rd ARM
134" (3404 mm) 4th ARM
ALUMINUM SWIVEL ELBOW
WITH HANDLE
