底部装车对接接口 Bottom Loading Couplers
O P VW=
ENGINEERED SYSTEMS
BOTTIOM DING COUPLER
a TD company

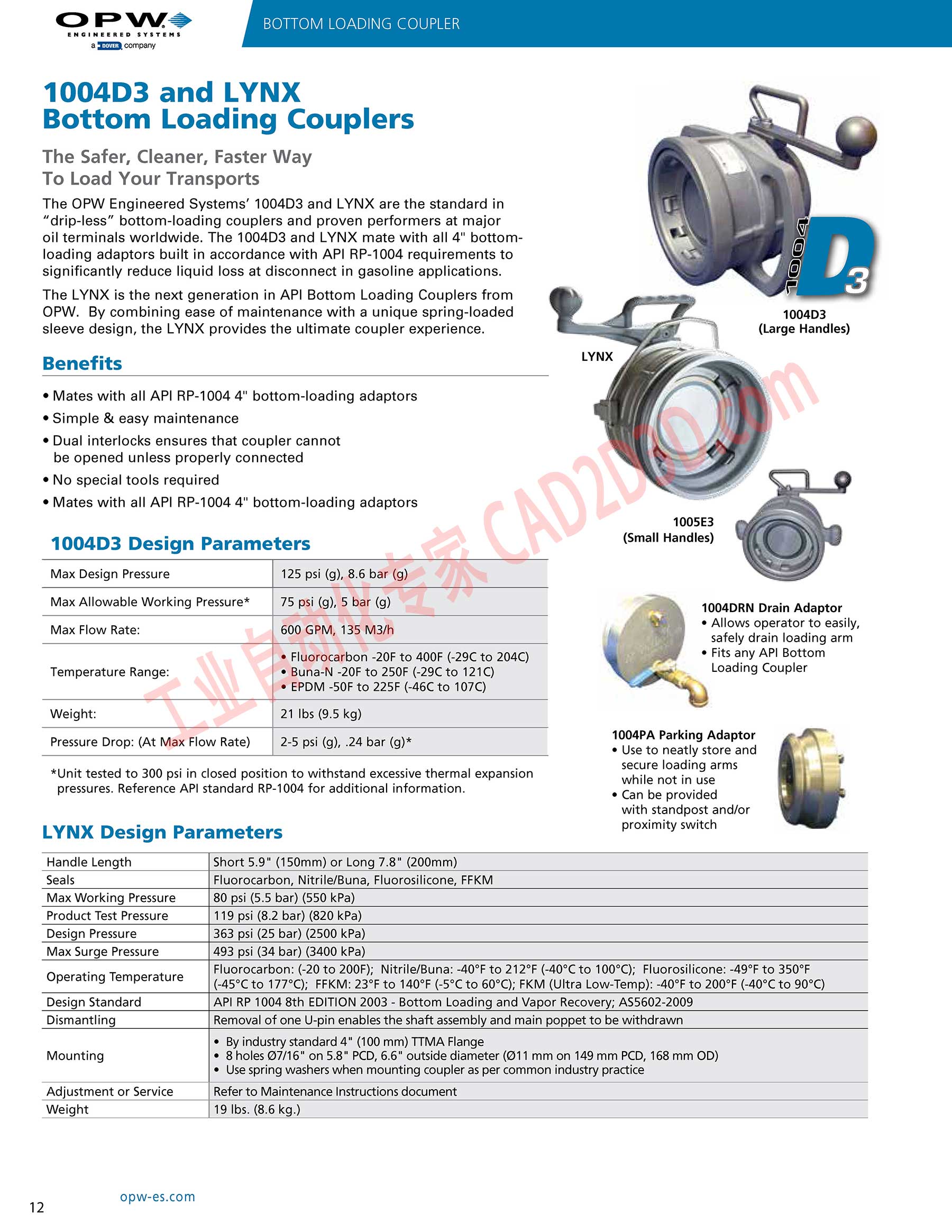

1004D3 and LYNX
Bottom Loading Couplers
The Safer, Cleaner, Faster Way
To Load Your Transports
The OPW Engineered Systems’ 1004D3 and LYNX are the standard in
“drip-less” bottom-loading couplers and proven performers at major
oil terminals worldwide. The 1004D3 and LYNX mate with all 4" bottom-
loading adaptors built in accordance with API RP-1004 requirements to
significantly reduce liquid loss at disconnect in gasoline applications.
The LYNX is the next generation in APl Bottom Loading Couplers from
OPW. By combining ease of maintenance with a unique spring-loaded
sleeve design, the LYNX provides the ultimate coupler experience.
1004D3
(Large Handles)
Benefits
* Mates with all API RP-1004 4" bottom-loading adaptors
¢ Simple & easy maintenance
¢ Dual interlocks ensures that coupler cannot
be opened unless properly connected
* No special tools required
* Mates with all APl RP-1004 4" bottom-loading adaptors
1005E3
1004D3 Design Parameters (Small Handles)
Max Design Pressure 125 psi (g), 8.6 bar (g)
Max Allowable Working Pressure* 75 psi (9) 5 bar (9)
600 GPM, 135 M3/h
1004DRN Drain Adaptor
* Allows operator to easily,
safely drain loading arm
Fits any APl Bottom
Loading Coupler
Max Flow Rate:
¢ Fluorocarbon -20F to 400F (-29C to 204C)
¢ Buna-N -20F to 250F (-29C to 121C)
¢ EPDM -50F to 225F (-46C to 107C)
Temperature Range:
Weight: 21 Ibs (9.5 kg)
1004PA Parking Adaptor
。 Use to neatly store and
secure loading arms
while not in use
。Can be provided
with standpost and/or
proximity switch
Pressure Drop: (At Max Flow Rate) 2-5 psi (9), .24 bar (g)*
*Unit tested to 300 psi in closed position to withstand excessive thermal expansion
pressures. Reference API standard RP-1004 for additional information.
LYNX Design Parameters
Handle Length
Seals
Short 5.9" (150mm) or Long 7.8" (200mm)
Fluorocarbon, Nitrile/Buna, Fluorosilicone, FFKM
Max Working Pressure
Product Test Pressure
Design Pressure
Max Surge Pressure
Operating Temperature
80 psi (5.5 bar) (550 kPa)
119 psi (8.2 bar) (820 kPa)
363 psi (25 bar) (2500 kPa)
493 psi (34 bar) (3400 kPa)
Fluorocarbon: (-20 to 200F); Nitrile/Buna: -40°F to 212°F (-40°C to 100°C); Fluorosilicone: -49°F to 350°F
(-45°C to 177°C); FFKM: 23°F to 140°F (-5°C to 60°C); FKM (Ultra Low-Temp): -40°F to 200°F (-40°C to 90°C)
Design Standard
API RP 1004 8th EDITION 2003 - Bottom Loading and Vapor Recovery; AS5602-2009
Dismantling Removal of one U-pin enables the shaft assembly and main poppet to be withdrawn
¢ By industry standard 4" (100 mm) TTMA Flange
Mounting * 8holes @7/16" on 5.8" PCD, 6.6" outside diameter (311 mm on 149 mm PCD, 168 mm OD)
。 Use spring washers when mounting coupler as per common industry practice
Adjustment or Service
Weight
opw-es.com
12 R
Refer to Maintenance Instructions document
19 Ibs. (8.6 kg.)
