剪刀式顶部装卸臂
TOP LOADING

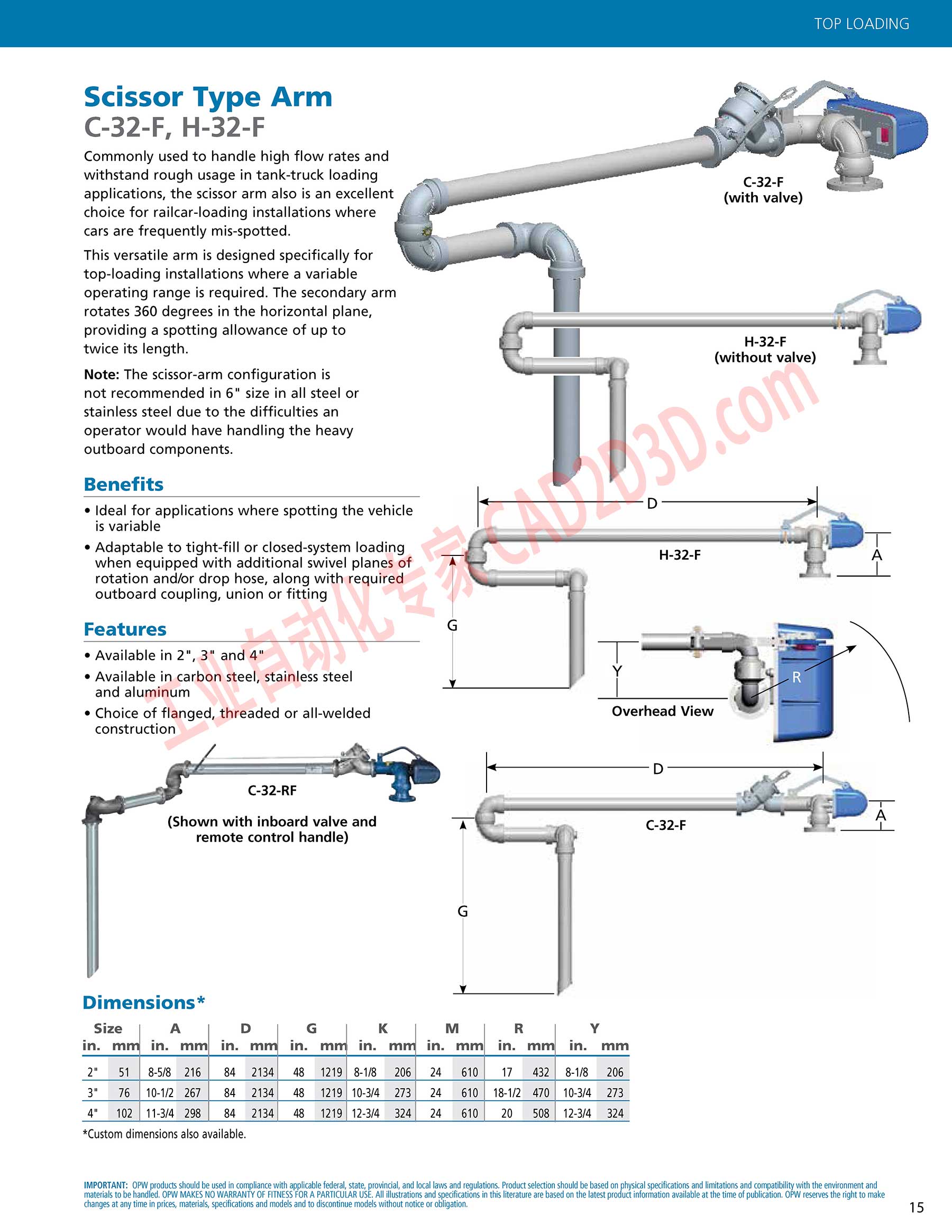

Scissor Type Arm
C-32-F, H-32-F
Commonly used to handle high flow rates and
withstand rough usage in tank-truck loading o
applications, the scissor arm also is an excellent #*
choice for railcar-loading installations where
cars are frequently mis-spotted.
(with valve)
This versatile arm is designed specifically for
top-loading installations where a variable
operating range is required. The secondary arm
rotates 360 degrees in the horizontal plane,
providing a spotting allowance of up to
twice its length.
H-32-F
(without valve)
Note: The scissor-arm configuration is
not recommended in 6" size in all steel or
stainless steel due to the difficulties an
operator would have handling the heavy
outboard components.
Benefits
o Ideal for applications where spotting the vehicle
is variable
* Adaptable to tight-fill or closed-system loading
when equipped with additional swivel planes of
rotation and/or drop hose, along with required
outboard coupling, union or fitting
Features
* Available in 2", 3" and 4"
* Available in carbon steel, stainless steel
and aluminum
¢ Choice of flanged, threaded or all-welded
construction
(Shown with inboard valve and
remote control handle)
A
in. mm|
858 216 8-18 206 8-1/8 206
3" 76 | 10-12 267| 84 2134| 48 1219|110-34 273| 24 610 | 18-1/2 470 | 10-3/4 273
4" 102 | 11-3/4 298 | 84 2134| 48 1219112-34 324| 24 610 | 20 508 | 12-3/4 324
*Custom dimensions also available.
