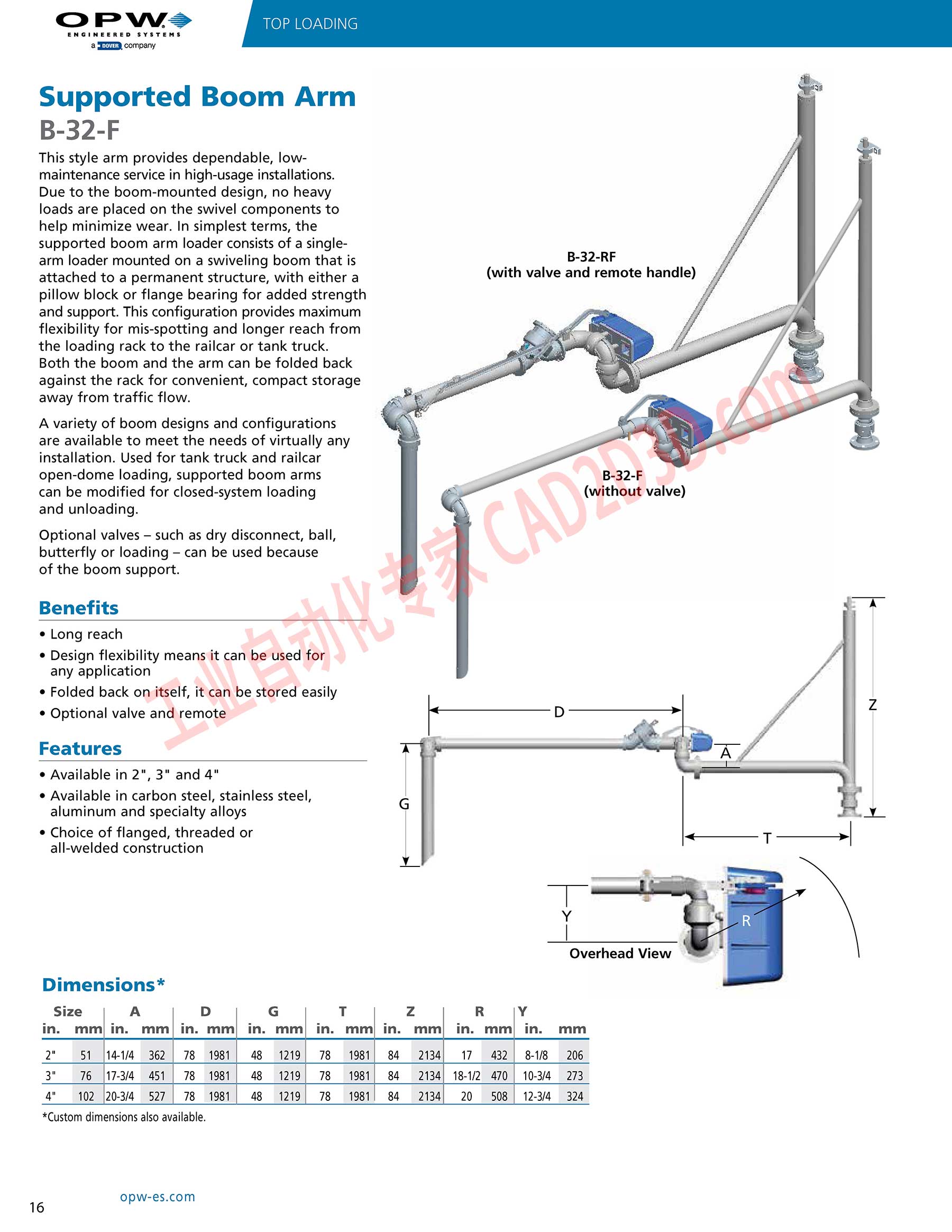

Supported Boom Arm
B-32-F
This style arm provides dependable, low-
maintenance service in high-usage installations.
Due to the boom-mounted design, no heavy
loads are placed on the swivel components to
help minimize wear. In simplest terms, the
supported boom arm loader consists of a single-
arm loader mounted on a swiveling boom that is . B-32-RF
attached to a permanent structure, with either a (with valve and remote handle)
pillow block or flange bearing for added strength
and support. This configuration provides maximum
flexibility for mis-spotting and longer reach from
the loading rack to the railcar or tank truck.
Both the boom and the arm can be folded back
against the rack for convenient, compact storage
away from traffic flow.
A variety of boom designs and configurations
are available to meet the needs of virtually any
installation. Used for tank truck and railcar
open-dome loading, supported boom arms
can be modified for closed-system loading
and unloading.
(without valve)
Optional valves — such as dry disconnect, ball,
butterfly or loading — can be used because
of the boom support.
Benefits
® Long reach
Design flexibility means it can be used for
any application
Folded back on itself, it can be stored easily
¢ Optional valve and remote
Features
¢ Available in 2", 3" and 4"
¢ Available in carbon steel, stainless steel,
aluminum and specialty alloys
* Choice of flanged, threaded or
all-welded construction
Overhead View
Dimensions*
Size A D G T z R Y
in. mm|in. mm|in. mm| in. mm| in. mm| in. mm| in. mm| in. mm
22 51 [14-1/4 362 | 78 1981 | 48 1219 78 1981| 84 2134 17 432 | 8-1/8 206
3" 76 17-34 451 | 78 1981 | 48 1219| 78 1981 84 2134| 1812 470 | 10-3/4 273
4" 102 [20-3/4 527 | 78 1981 | 48 1219| 78 1981/ 84 2134| 20 508 | 12-3/4 324
*Custom dimensions also available.
