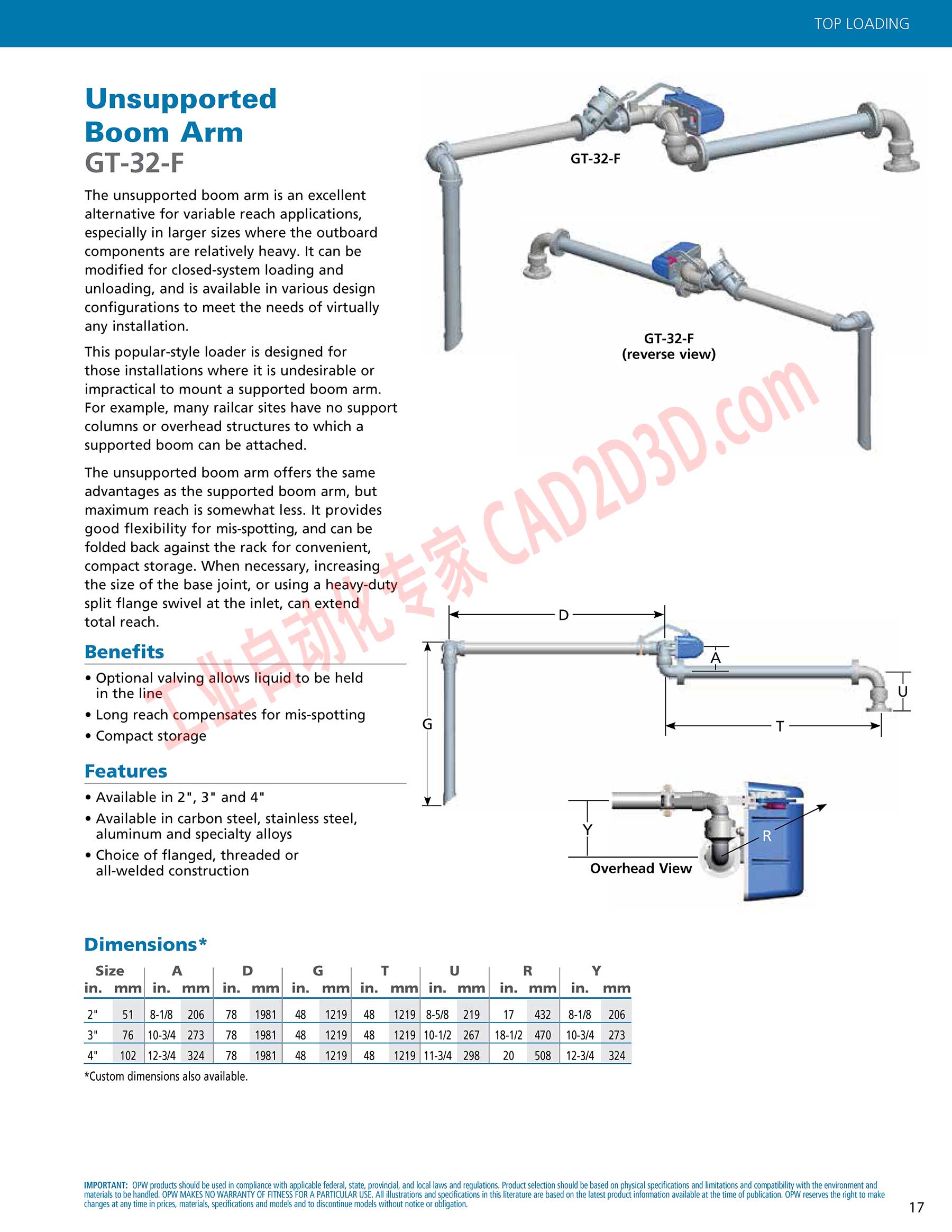

无支撑吊杆式顶部装车臂
Unsupported
Boom Arm
GT-32-F
The unsupported boom arm is an excellent
alternative for variable reach applications,
especially in larger sizes where the outboard
components are relatively heavy. It can be
modified for closed-system loading and
unloading, and is available in various design
configurations to meet the needs of virtually
any installation.
GT-32-F
This popular-style loader is designed for
those installations where it is undesirable or
impractical to mount a supported boom arm.
For example, many railcar sites have no support
columns or overhead structures to which a
supported boom can be attached.
(reverse view)
The unsupported boom arm offers the same
advantages as the supported boom arm, but
maximum reach is somewhat less. It provides
good flexibility for mis-spotting, and can be
folded back against the rack for convenient,
compact storage. When necessary, increasing
the size of the base joint, or using a heavy-duty
split flange swivel at the inlet, can extend
total reach.
Benefits
¢ Optional valving allows liquid to be held
in the line
* Long reach compensates for mis-spotting
G
¢ Compact storage
Features
¢ Available in 2", 3" and 4"
e Available in carbon steel, stainless steel,
aluminum and specialty alloys
* Choice of flanged, threaded or _
all-welded construction Overhead View
Dimensions*
Size A D G T U R Y
in. mm|in. mm| in. mm| in. mm| in. mm| in. mm| in. mm| in. mm
2" 51 |8-1/8 206 | 78 1981 48 1219 48 1219858 219 | 17 432 | 81/8 206
3" 76 |10-34 273 | 78 1981 1219| 48 121910-1/2 267 | 18-1/2 470 | 10-3/4 273
4" 102 112-34 324 | 78 1981 48 1219 48 1219 11-3/4 298 | 20 508 | 12-3/4 324
*Custom dimensions also available.
&
