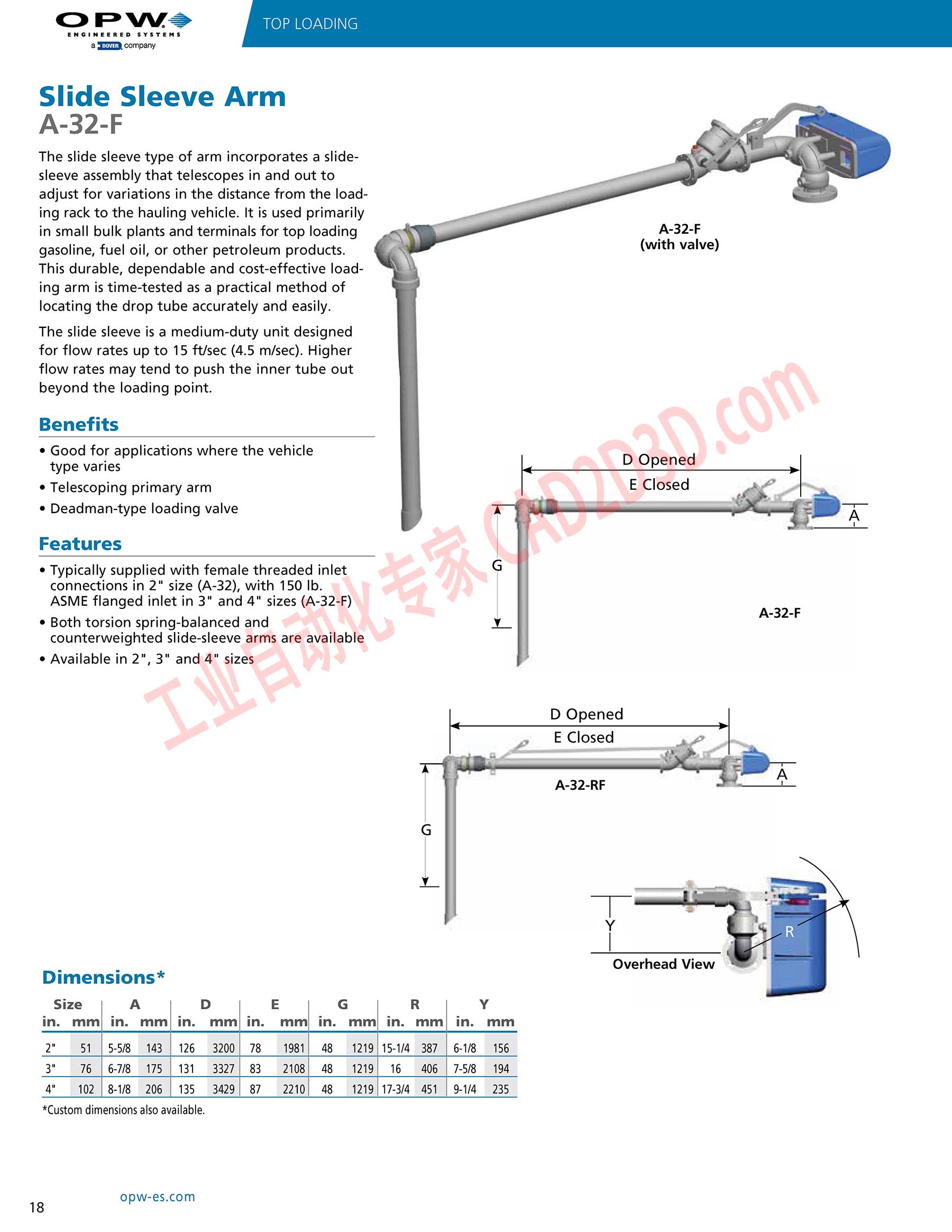

Slide Sleeve Arm
A-32-F
The slide sleeve type of arm incorporates a slide-
sleeve assembly that telescopes in and out to
adjust for variations in the distance from the load-
ing rack to the hauling vehicle. It is used primarily
in small bulk plants and terminals for top loading
gasoline, fuel oil, or other petroleum products.
This durable, dependable and cost-effective load-
ing arm is time-tested as a practical method of
locating the drop tube accurately and easily.
(with valve)
The slide sleeve is a medium-duty unit designed
for flow rates up to 15 ft/sec (4.5 m/sec). Higher
flow rates may tend to push the inner tube out
beyond the loading point.
Benefits
* Good for applications where the vehicle
type varies
* Telescoping primary arm
¢ Deadman-type loading valve
D Opened
E Closed
Features
。Typically supplied with female threaded inlet G
connections in 2" size (A-32), with 150 lb.
ASME flanged inlet in 3" and 4" sizes (A-32-F)
¢ Both torsion spring-balanced and
counterweighted slide-sleeve arms are available
® Available in 2", 3" and 4" sizes
D Opened
E Closed
A-32-RF
FF 一
_ - Overhead View
Dimensions*
Size A D E G R Y
in. mm| in. mm|in. mm|in. mm| in. mm| in. mm| in. mm
2" 51 |5-58 143 | 126 3200| 78 1981| 48 1219|15-1/4 387 | 6-18 156
3" 76 |6-78 175 | 131 3327| 83 2108| 48 1219| 16 406 | 7-58 194
4" 102 | 8-1/8 206 | 135 3429 87 2210| 48 1219 17-3/4 451 | 9-1/4 235
*Custom dimensions also available.
