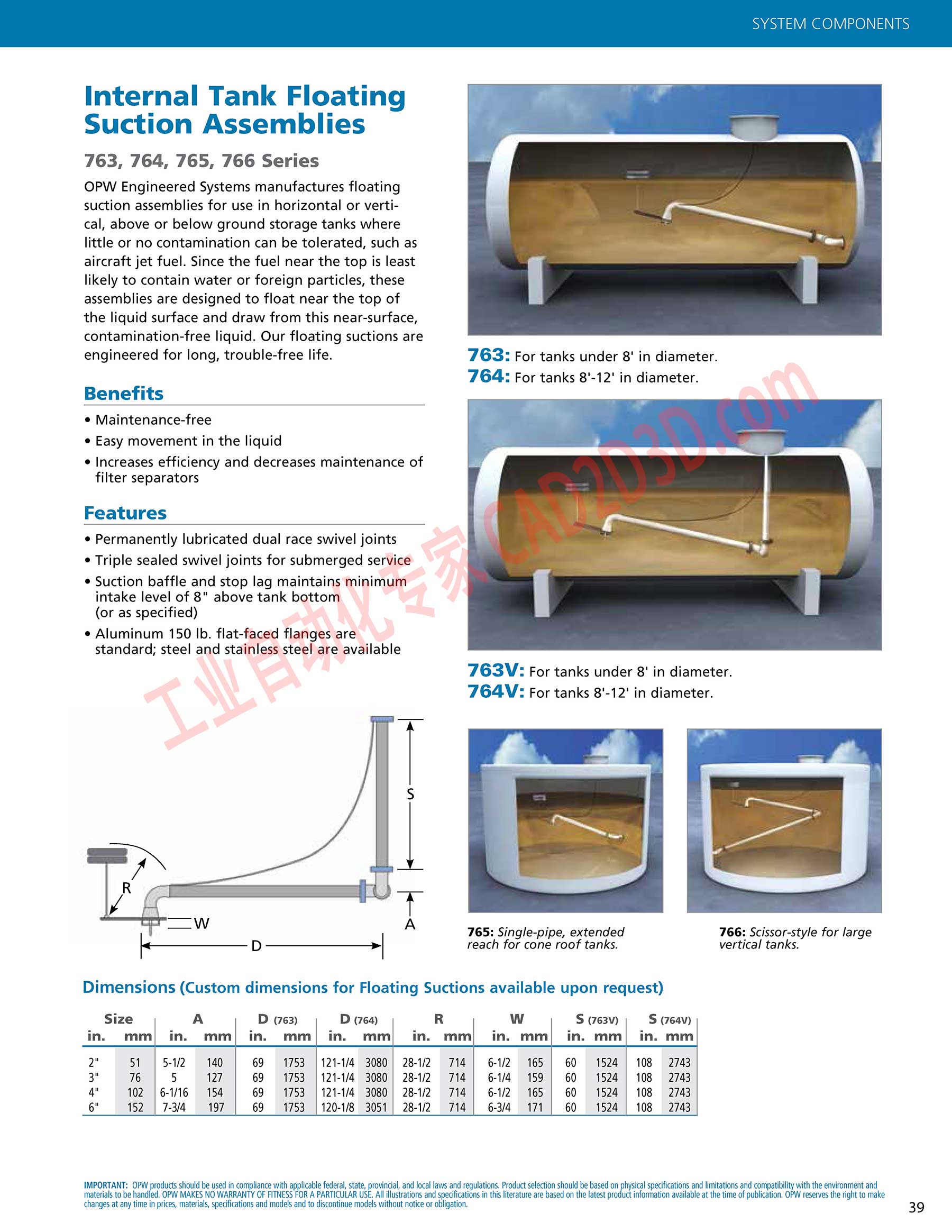

SYSTEM COMPONENTS
Internal Tank Floating
Suction Assemblies
763, 764, 765, 766 Series
OPW Engineered Systems manufactures floating
suction assemblies for use in horizontal or verti-
cal, above or below ground storage tanks where
little or no contamination can be tolerated, such as
aircraft jet fuel. Since the fuel near the top is least
likely to contain water or foreign particles, these
assemblies are designed to float near the top of
the liquid surface and draw from this near-surface,
contamination-free liquid. Our floating suctions are
engineered for long, trouble-free life. 763: For tanks under 8' in diameter.
764: For tanks 8'-12' in diameter.
Benefits
¢ Maintenance-free
* Easy movement in the liquid
e Increases efficiency and decreases maintenance of
filter separators
Features
* Permanently lubricated dual race swivel joints
e Triple sealed swivel joints for submerged service
e Suction baffle and stop lag maintains minimum
intake level of 8" above tank bottom
(or as specified)
e Aluminum 150 Ib. flat-faced flanges are
standard; steel and stainless steel are available
763V: For tanks under 8' in diameter.
764V : For tanks 8'-12' in diameter.
765: Single-pipe, extended 766: Scissor-style for large
reach for cone roof tanks. vertical tanks.
Dimensions (Custom dimensions for Floating Suctions available upon request)
Size A
D (763) D (769) R w S (763v) S (764V)
in. mml in.
mm| in. mm| in. mm| in. mm| in. mm| in. mm| in. mm
2" 51 | 512 140 69 1753 |121-1/4 3080 | 28-172 714 | 6-1/2 165 | 60 1524 | 108 2743
3 76 5 127 69 1753 |121-1/4 3080 | 28-12 714 | 6-1/4 159 | 60 1524 | 108 2743
4" 102 | 6-1/16 154 69 1753 |121-1/4 3080 | 28-12 714 | 6-12 165 | 60 1524 | 108 2743
6" 152 | 7-34 197 69 1753 [120-1/8 3051 | 28-172 714 | 6-3/4 171 | 60 1524 | 108 2743
IMPORTANT: OPW products should be used in compliance with applicable federal, state, provincial, and local laws and regulations. Product selection should be based on physical speifications and limitations and compatibility with the environment and
materials to be handled. OPW MAKES NO WARRANTY OF FITNESS FOR A PARTICULAR USE. All illustrations and specifications in this literature are based on the latest product information available at the time of publication. OPW reserves the right to make
changes at any time in prices, materials, specifications and models and to discontinue models without notice or obligation. 39
