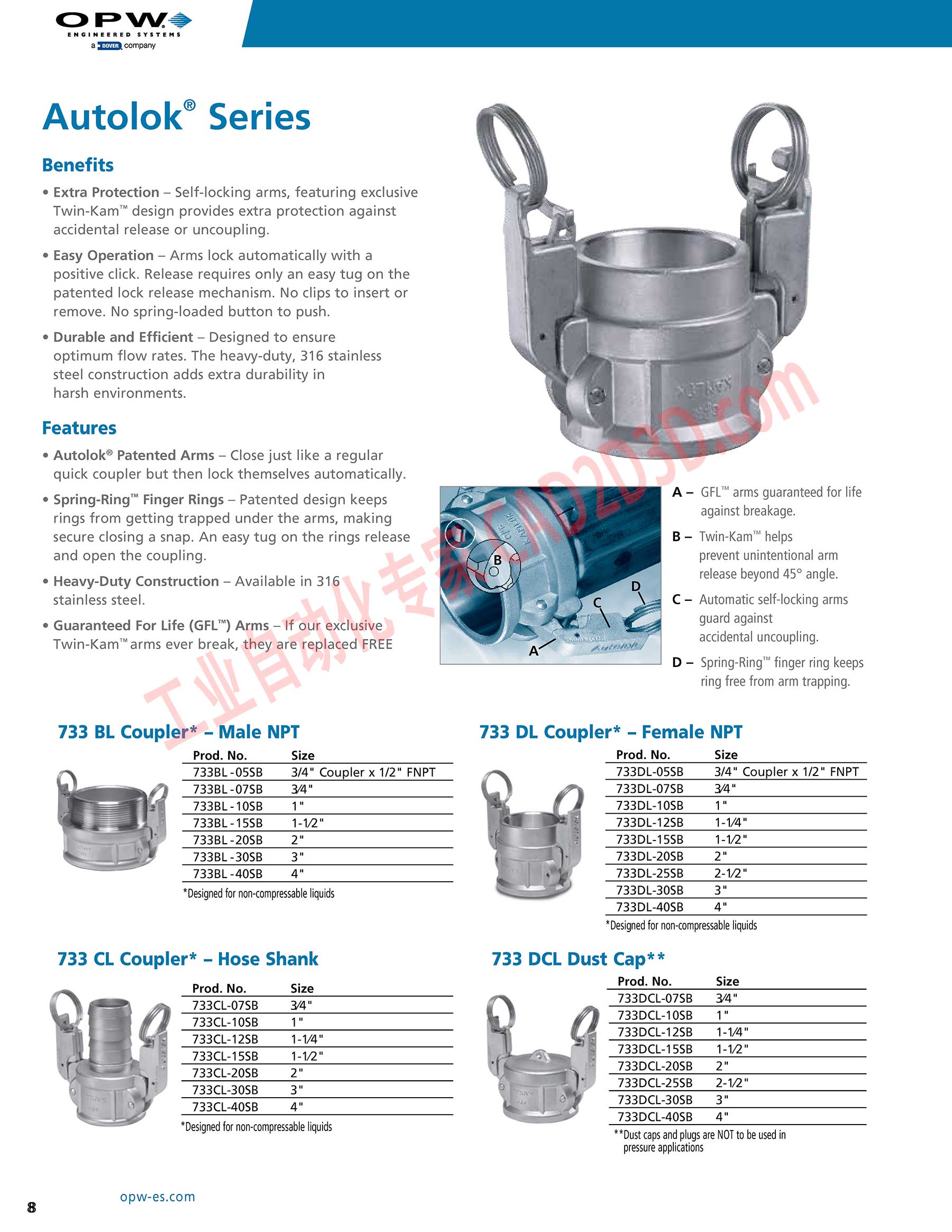

REXT Autolok® Series Benefits * Extra Protection — Self-locking arms, featuring exclusive Twin-Kam™ design provides extra protection against accidental release or uncoupling. e Easy Operation — Arms lock automatically with a positive click. Release requires only an easy tug on the patented lock release mechanism. No clips to insert or remove. No spring-loaded button to push. * Durable and Efficient — Designed to ensure optimum flow rates. The heavy-duty, 316 stainless steel construction adds extra durability in harsh environments. Features ¢ Autolok® Patented Arms — Close just like a regular quick coupler but then lock themselves automatically. A - GFL™ arms guaranteed for life ¢ Spring-Ring™ Finger Rings — Patented design keeps . against breakage. rings from getting trapped under the arms, making secure closing a snap. An easy tug on the rings release and open the coupling. B - Twin-Kam™ helps prevent unintentional arm ¢ Heavy-Duty Construction — Available in 316 release beyand A57angle. stainless steel. C - Automatic self-locking arms guard against e Guaranteed For Life (GFL™) Arms - If our exclusive - i accidental uncoupling. Twin-Kam™arms ever break, they are replaced FREE D - Spring-Ring™ finger ring keeps ring free from arm trapping. 733 BL Coupler* - Male NPT 733 DL Coupler* - Female NPT Prod. No. Size Prod. No. Size 733BL-05SB 3/4" Coupler x 1/2" FNPT 733DL-05SB 3/4" Coupler x 1/2" FNPT 733BL-07SB 34" 733DL-07SB 34" 733BL-10SB i 733DL-10SB = 733BL-15SB 1-12" 733DL-12SB 1-14" 733BL-20SB 2" 733DL-15SB 1-12" 733BL -30SB 3 733DL-20SB 2r 733BL-40SB 4" 733DL-25SB 2-12" *Designed for non-compressable liquids 733DL-30SB 3" 733DL-40SB 4" *Designed for non-compressable liquids 733 CL Coupler* - Hose Shank 733 DCL Dust Cap** Prod. No. Size 733DCL-07SB 34" 733DCL-10SB 1" 733DCL-12SB 1-14" 733DCL-15SB 1-12" 733DCL-20SB 2" 733DCL-255B 2-12" 733DCL-30SB 3" 733DCL-40SB 4" **Dust caps and plugs are NOT to be used in pressure applications Prod. No. Size 733CL-07SB 34" 733CL-10SB 1 733CL-12SB 1-14" 733CL-15SB 1-12" 733CL-20SB 2" 733CL-30SB 3 733CL-40SB 4" *Designed for non-compressable liquids opw-es.com
