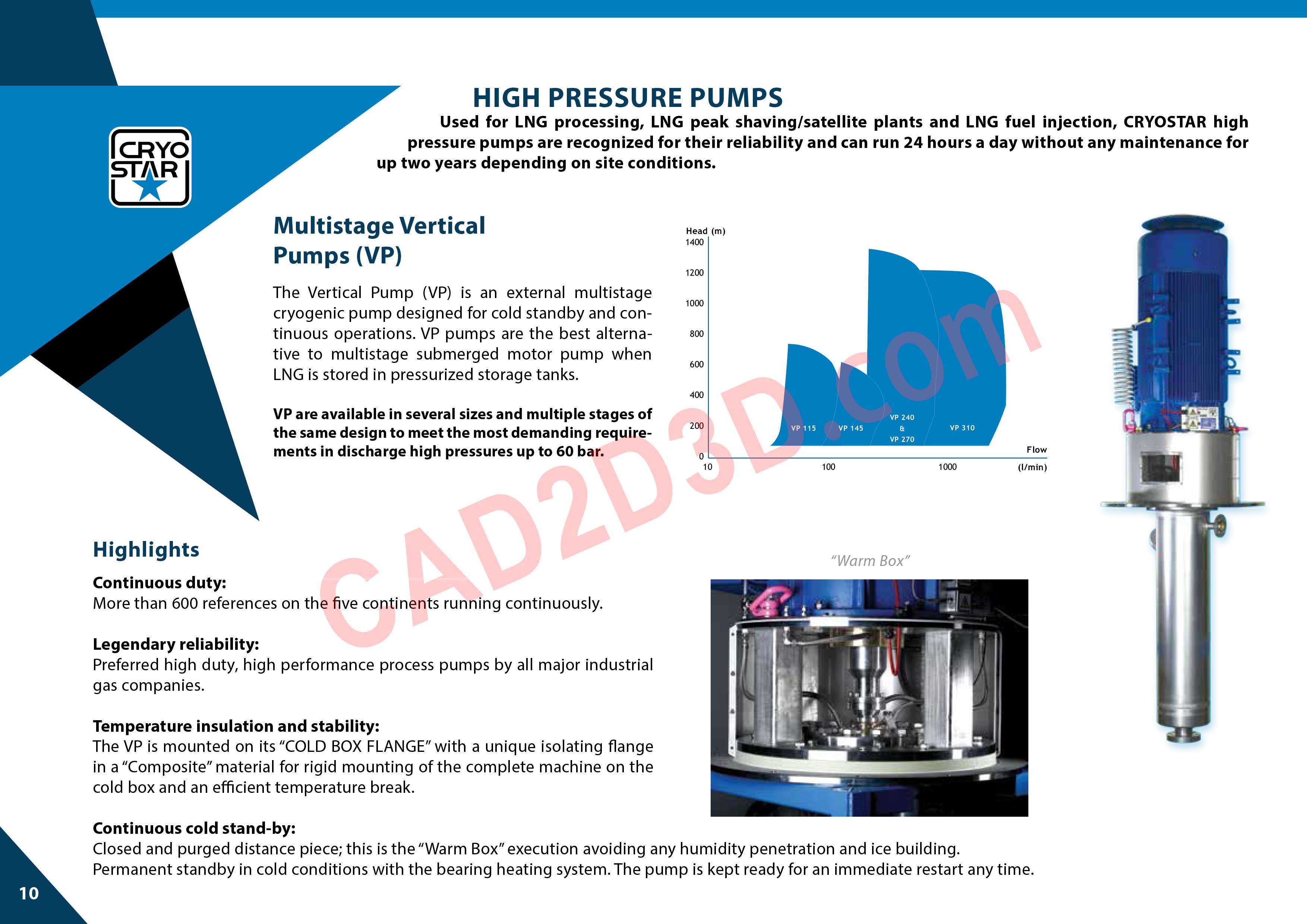

HIGH PRESSURE PUMPSUsed for LNG processing, LNG peak shaving/satellite plants and LNG fuel injection, CRYOSTAR highpressure pumps are recognized for their reliability and can run 24 hours a day without any maintenance forup two years depending on site conditions.Multistage Vertical Head tmPumps (VP)The Vertical Pump (VP) is an external multistagecryogenic pump designed for cold standby and con-tinuous operations. VP pumps are the best alterna- 800tive to multistage submerged motor pump whenLNG is stored in pressurized storage tanks.12001000VP are available in several sizes and multiple stages ofthe same design to meet the most demanding require-ments in discharge high pressures up to 60 bar. P WV 0000 Flw10 100 1000 (/min)200 VP 115 VP 145 HighlightsContinuous duty:More than 600 references on the five continents running continuously.“Warm Box”Legendary reliability:Preferred high duty, high performance process pumps by all major industrialgas companies.Temperature insulation and stability:The VP is mounted on its “COLD BOX FLANGE” with a unique isolating flangein a “Composite” material for rigid mounting of the complete machine on thecold box and an efficient temperature break. Continuous cold stand-by:Closed and purged distance piece; this is the “Warm Box" execution avoiding any humidity penetration and ice building.Permanent standby in cold conditions with the bearing heating system. The pump is kept ready for an immediate restart any time.
