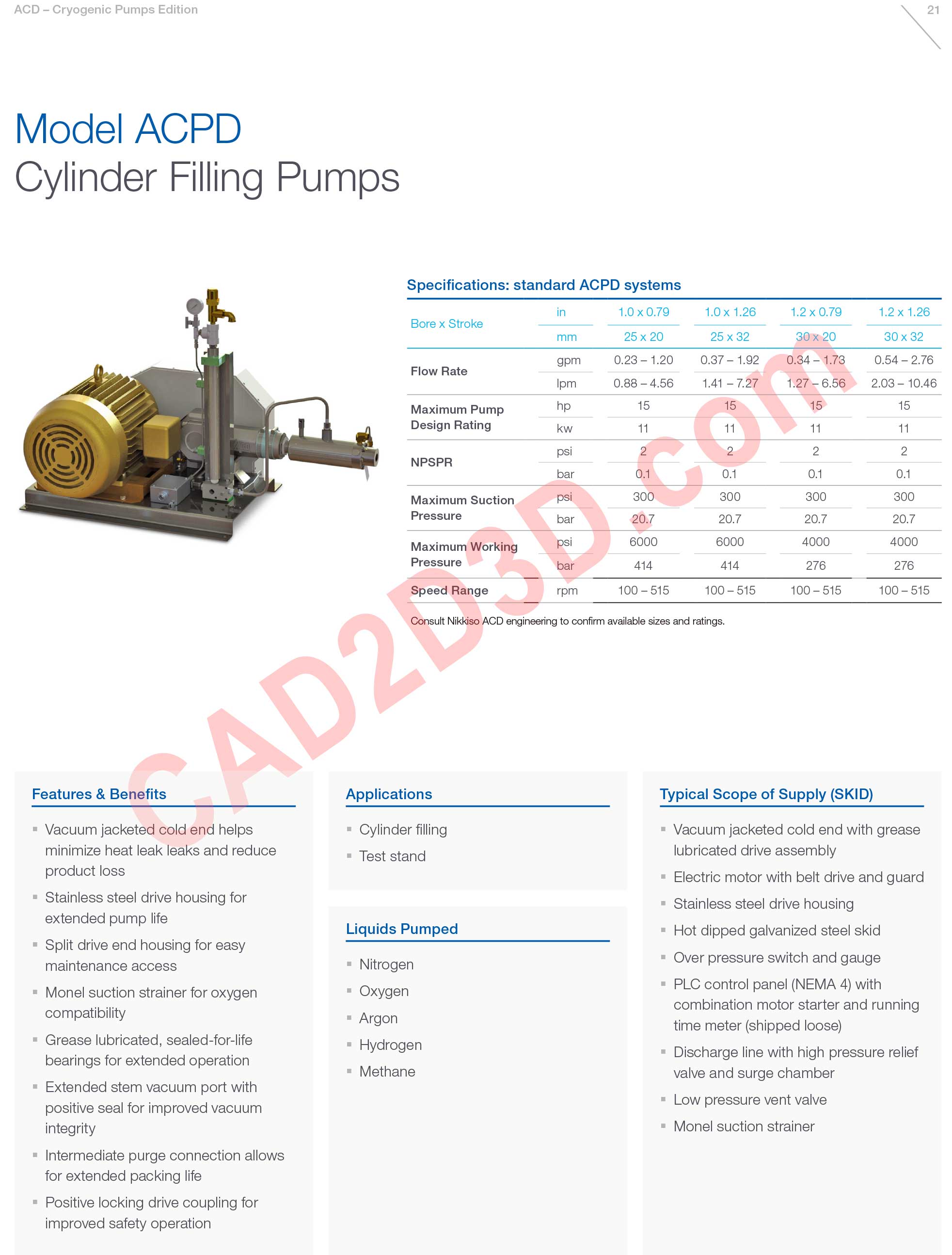

Model ACPDCylinder Filling Pumps Features & Benefits= Vacuum jacketed cold end helpsminimize heat leak leaks and reduceproduct loss= Stainless steel drive housing forextended pump lifeSplit drive end housing for easymaintenance access= Monel suction strainer for oxygencompatibilityGrease lubricated, sealed-for-lifebearings for extended operationExtended stem vacuum port withpositive seal for improved vacuumintegrity= Intermediate purge connection allowsfor extended packing life= Positive locking drive coupling forimproved safety operationSpecifications: standard ACPD systems in 1.0x0.79 1.0x1.26 1.2x0.79 1.2x1.26Bore x Strokemm 25x 20 25x 32 30%x:20 30x32gpm 0.23-1.20 0.37-1.92 0.34-1.73 0.54-2.76Flow Rate 2l —Ipm 0.88 - 4.56 141 -7.27 1.27 - 6.56 2.03 - 10.46Maximum Pump hp 15 in B 15 15Design Rating kw 1 11 1 11psi 2 2 2 2NPSPR = -bar 0.1 0.1 0.1 0.1Maximum Suction psi 300 300 300 300Pressure bar 20.7 20.7 20.7 20.7Maximum Working psi 6000 6000 4000 4000Pressure bar 414 414 276 276rpm 100 - 515 100 - 515 100 - 515 100 - 515Speed Range Consult Nikkiso ACD engineering to confirm available sizes and ratings.Applications= Cylinder fillingTest standLiquids PumpedNitrogen= Oxygen= Argon= HydrogenMethaneTypical Scope of Supply (SKID)= Vacuum jacketed cold end with greaselubricated drive assemblyElectric motor with belt drive and guard= Stainless steel drive housing= Hot dipped galvanized steel skid= Over pressure switch and gaugePLC control panel (NEMA 4) withcombination motor starter and runningtime meter (shipped loose)Discharge line with high pressure reliefvalve and surge chamber= | ow pressure vent valve= Monel suction strainer
