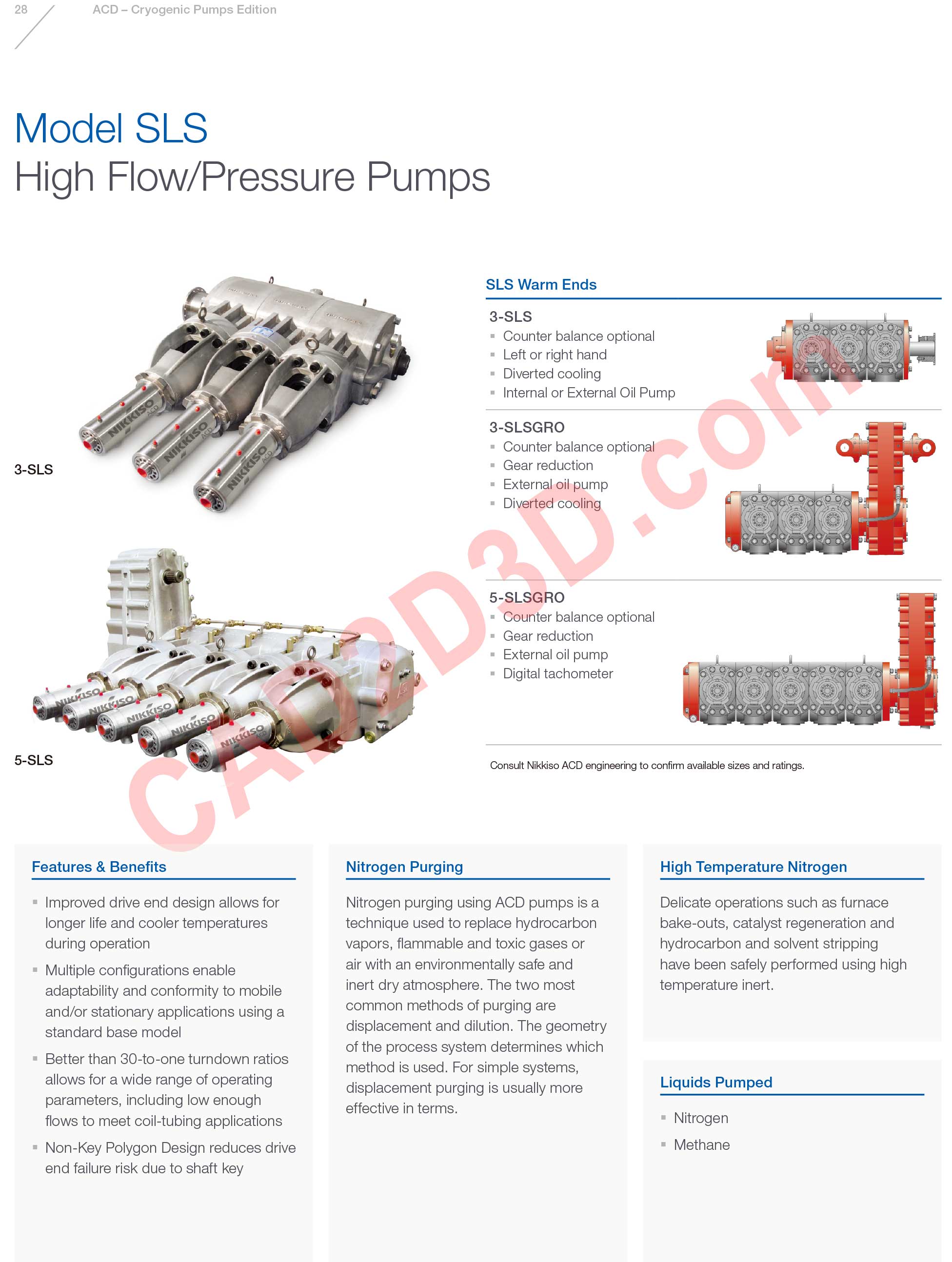

28/// ACD - Cryogenic Pumps Edition/Model SLSHigh Flow/Pressure Pumps3-SLS Features & Benefits=mnImproved drive end design allows forlonger life and cooler temperaturesduring operationMultiple configurations enableadaptability and conformity to mobileand/or stationary applications using astandard base modelBetter than 30-to-one turndown ratiosallows for a wide range of operatingparameters, including low enoughflows to meet coil-tubing applicationsNon-Key Polygon Design reduces driveend failure risk due to shaft key SLS Warm Ends3-SLS= Counter balance optional= Left or right hand= Diverted cooling= Internal or External Oil Pump3-SLSGRO= Counter balance optional= Gear reduction= External oil pump= Diverted cooling5-SLSGRO= Counter balance optional= Gear reduction= External oil pump= Digital tachometer Consult Nikkiso ACD engineering to confirm available sizes and ratings.Nitrogen PurgingNitrogen purging using ACD pumps is atechnique used to replace hydrocarbonvapors, flammable and toxic gases orair with an environmentally safe andinert dry atmosphere. The two mostcommon methods of purging aredisplacement and dilution. The geometryof the process system determines whichmethod is used. For simple systems,displacement purging is usually moreeffective in terms.temperature inert.Liquids Pumped= Nitrogen= MethaneHigh Temperature NitrogenDelicate operations such as furnacebake-outs, catalyst regeneration andhydrocarbon and solvent strippinghave been safely performed using high
