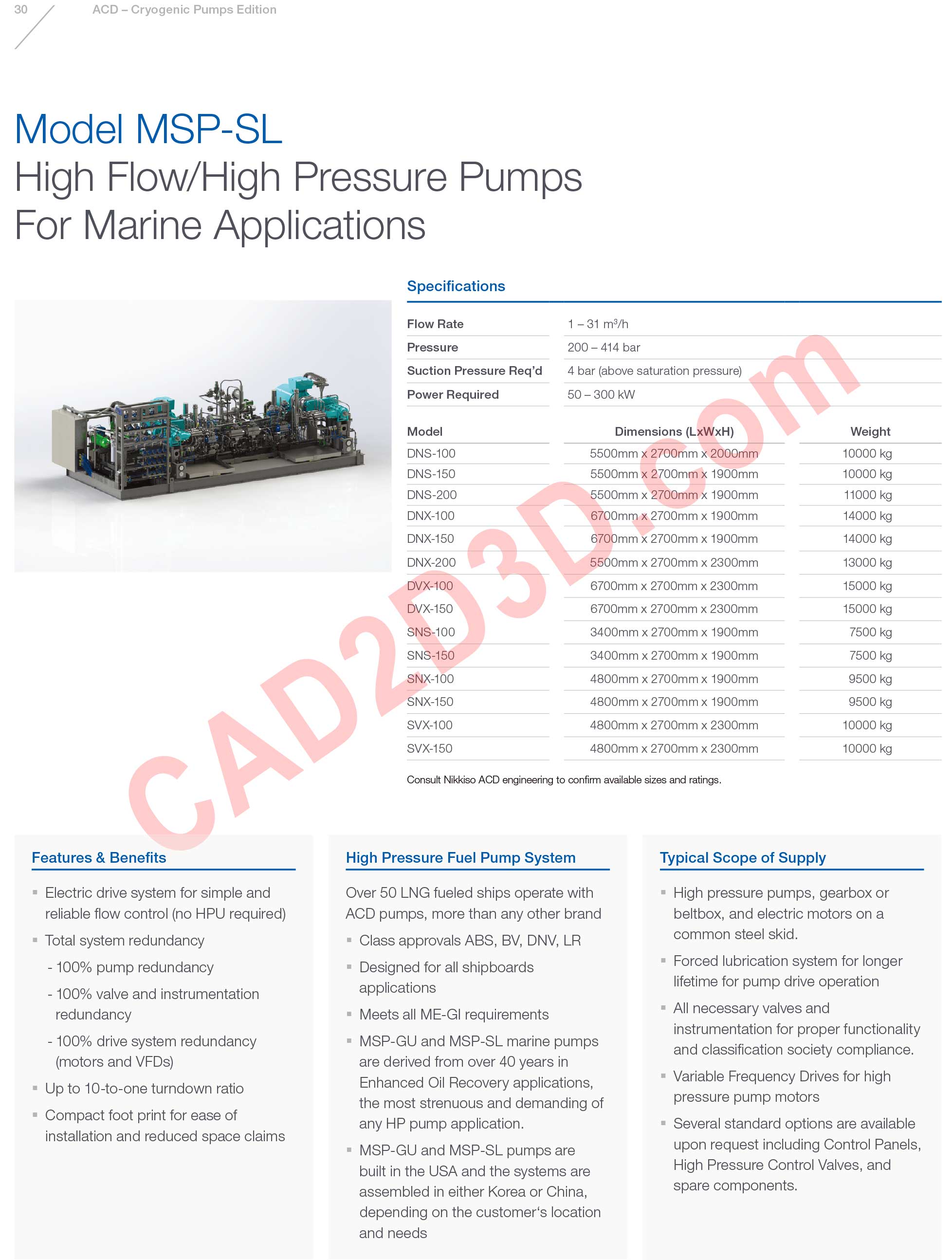

Model MSP-SLHigh Flow/High Pressure PumpsFor Marine ApplicationsSpecificationsFlow Rate 1-31méhPressure 200 - 414 barSuction Pressure Req’'d 4 bar (above saturation pressure) Features & Benefits= Electric drive system for simple andreliable flow control (no HPU required)= Total system redundancy- 100% pump redundancy- 100% valve and instrumentationredundancy- 100% drive system redundancy(motors and VFDs)= Up to 10-to-one turndown ratioCompact foot print for ease ofinstallation and reduced space claimsPower Required 50 - 300 kWModel Dimensions (LxWxH) WeightDNS-100 5500mm x 2700mm x 2000mm 10000 kgDNS-150 5500mmx 2700mmix 1900mm 10000 kgDNS-200 5500mm x 2700mm x 1900mm 11000 kgDNX-100 6700mmx 2700mm x 1900mm 14000 kgDNX-150 < 67oommX 2700mm x 1900mm 14000 kgDNX-200 S B 3 550omm X 2700mm x 2300mm 13000 kgDvm Y v 6700mm x 2700mm x 2300mm 15000 kgDVX-150 6700mm x 2700mm x 2300mm 15000 kgSNS-100 3400mm x 2700mm x 1900mm 7500 kgSNS-156 多 3400mm x 2700mm x 1900mm 7500 kgSNX-100 4800mm x 2700mm x 1900mm 9500 kgSNX-150 4800mm x 2700mm x 1900mm 9500 kgSVX-100 4800mm x 2700mm x 2300mm 10000 kgSVX-150 4800mm x 2700mm x 2300mm 10000 kgConsult Nikkiso ACD engineering to confirm available sizes and ratings.High Pressure Fuel Pump SystemOver 50 LNG fueled ships operate withACD pumps, more than any other brandClass approvals ABS, BV, DNV, LRDesigned for all shipboardsapplicationsMeets all ME-GI requirementsMSP-GU and MSP-SL marine pumpsare derived from over 40 years inEnhanced Oil Recovery applications,the most strenuous and demanding ofany HP pump application.MSP-GU and MSP-SL pumps arebuilt in the USA and the systems areassembled in either Korea or China,depending on the customer's locationand needsTypical Scope of SupplyHigh pressure pumps, gearbox orbeltbox, and electric motors on acommon steel skid.Forced lubrication system for longerlifetime for pump drive operationAll necessary valves andinstrumentation for proper functionalityand classification society compliance.Variable Frequency Drives for highpressure pump motorsSeveral standard options are availableupon request including Control Panels,High Pressure Control Valves, andspare components.
