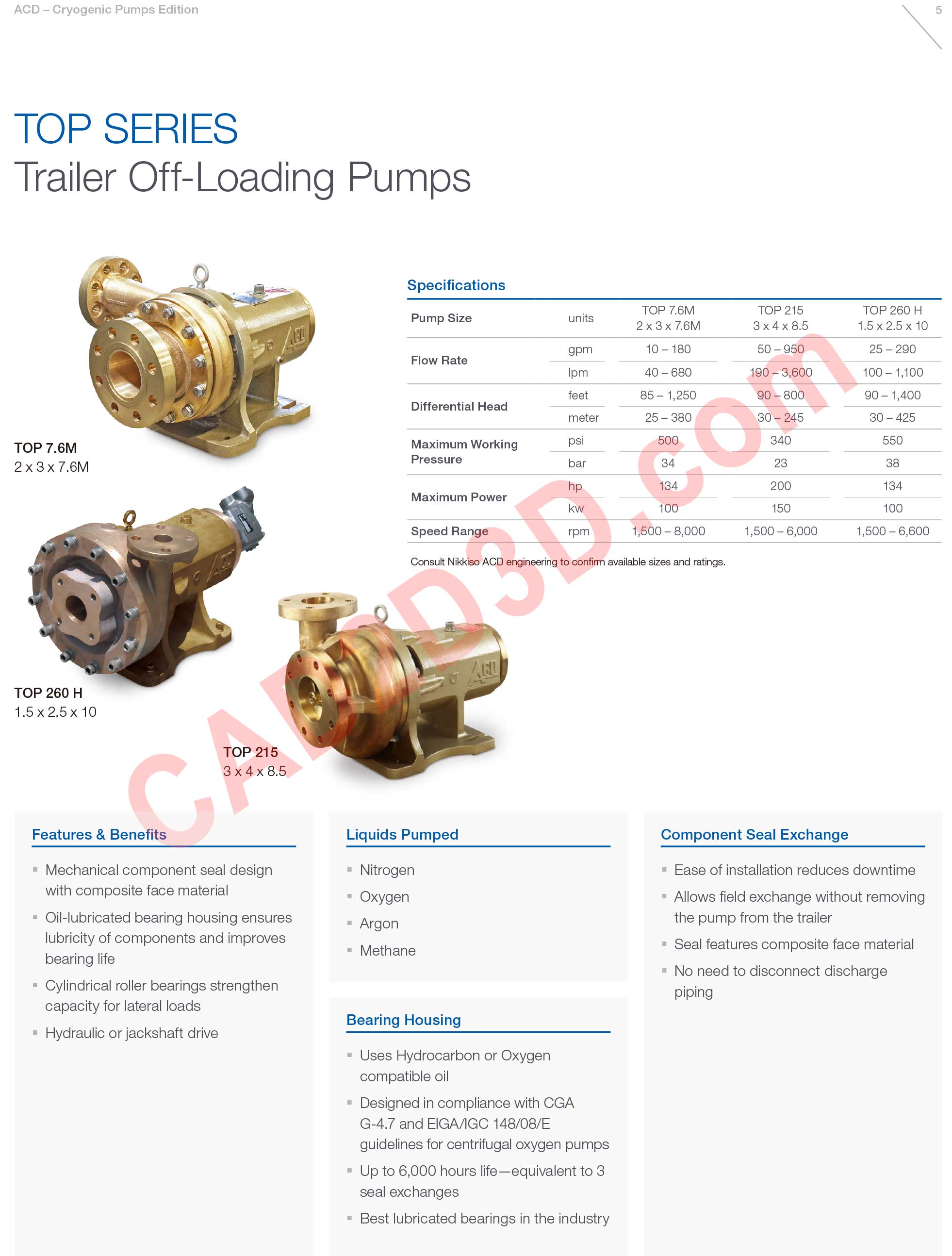

ACD - Cryogenic Pumps EditionTOP SERIESTrailer Off-Loading PumpsTOP 7.6M2x3x7.6M TOP 260 H1.56x2.5x10TOP 21583x4x85Features & BenefitsMechanical component seal designwith composite face material"Oil-lubricated bearing housing ensureslubricity of components and improvesbearing lifemCylindrical roller bearings strengthencapacity for lateral loadsHydraulic or jackshaft drive Specifications/ Pump Size units TOP 7.6M TOP 215 TOP 260 HP 2x3x7.6M 3x4x85 1.56x25x10gpm 10-180 50 - 950 25 - 290Flow Rate —— NIpm 40 -680 190 - 3,600 100-1,100feet 85-1,250 90 - 800 90 - 1,400Differential Head A U Vvmeter 25-380 30-245 30-425Maximum Working psi £ W 340 550Pressure bar 34 23 38hp 134 200 134Maximum Powerkw 100 150 100Speed Range rpm 1,600 - 8,000 1,500 - 6,000 1,500 - 6,600 Consult Nikkiso ACD engineering to confirm available sizes and ratings. Liquids Pumped= Nitrogen= Oxygen= Argon= MethaneBearing HousingmUses Hydrocarbon or Oxygencompatible oilDesigned in compliance with CGAG-4.7 and EIGA/IGC 148/08/Eguidelines for centrifugal oxygen pumpsUp to 6,000 hours life—equivalent to 3seal exchangesmBest lubricated bearings in the industryComponent Seal Exchange= Ease of installation reduces downtime= Allows field exchange without removingthe pump from the trailer= Seal features composite face material= No need to disconnect dischargepiping
