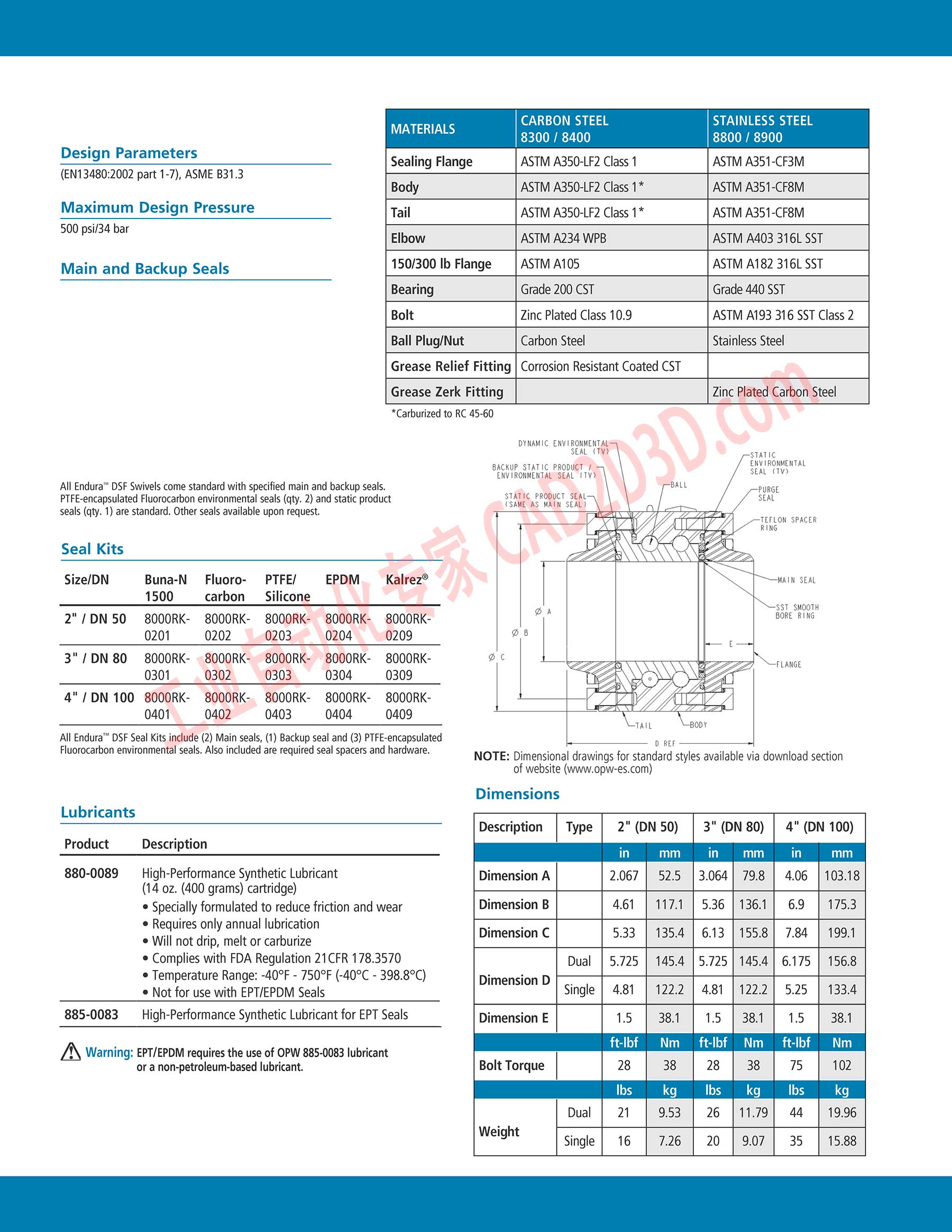

(NSNS Design Parameters Sealing Flange CARBON STEEL 8300 / 8400 ASTM A350-LF2 Class 1 STAINLESS STEEL 8800 / 8900 ASTM A351-CF3M (EN13480:2002 part 1-7), ASME B31.3 ASTM A350-LF2 Class 1* ASTM A351-CF8M ASTM A350-LF2 Class 1* ASTM A351-CF8M Body Maximum Design Pressure Tail 500 psi/34 ba persbar Elbow ASTM A234 WPB ASTM A403 316L SST Main and Backup Seals 150/300 Ib Flange Bearing ASTM A105 ASTM A182 316L SST Grade 440 SST Bolt Ball Plug/Nut Carbon Steel Grade 200 CST Zinc Plated Class 10.9 ASTM A193 316 SST Class 2 Stainless Steel Grease Relief Fitting | Corrosion Resistant Coated CST Grease Zerk Fitting *Carburized to RC 45-60 All Endura™ DSF Swivels come standard with specified main and backup seals. PTFE-encapsulated Fluorocarbon environmental seals (qty. 2) and static product seals (qty. 1) are standard. Other seals available upon request. Seal Kits Size/DN Buna-N Fluoro- PTFE/ EPDM Kalrez® 1500 Carbon Silicone 2" /DN 50 8000RK- 8000RK- 8000RK- 8000RK- 8000RK- 0201 0202 0203 0204 0209 3" /DN 80 8000RK- 8000RK- 8000RK- 8000RK- 8000RK- 0301 0302 0303 0304 0309 4" / DN 100 8000RK- 8000RK- 8000RK- 8000RK- 800ORK- 0401 0402 0403 0404 0409 All Endura™ DSF Seal Kits indudé (2) Main seals, (1) Backup seal and (3) PTFE-encapsulated Fluorocarbon environmental seals. Also included are required seal spacers and hardware. Lubricants Product Description 880-0089 High-Performance Synthetic Lubricant (14 oz. (400 grams) cartridge) e Specially formulated to reduce friction and wear se Requires only annual lubrication se Will not drip, melt or carburize o Complies with FDA Regulation 21CFR 178.3570 © Temperature Range: -40°F - 750°F (-40°C - 398.8°C) e Not for use with EPT/EPDM Seals High-Performance Synthetic Lubricant for EPT Seals 885-0083 人 Warning: EPT/EPDM requires the use of OPW 885-0083 lubricant or a non-petroleum-based lubricant. DYNAMIC ENVIRONMENTAL- SEAL (TV) BACKUP STATIC PRODUCT / ENVIRONMENTAL SEAL (TV) STATIC PRODUCT SEAL (SAME AS MAIN SEAL) ? it 人 -一 0 REF STATIC ENVIRONMENTAL SEAL (TV) PURGE SEAL TEFLON SPACER RING | 一 一 AIN SEAL [™ss1 suoomw BORE RING \HANGE NOTE: Dimensional drawings for standard styles available via download section of website (www.opw-es.com) Dimensions Description | Type Dimension A 2" (DN50) | 3" (DN 80) 4" (DN 100) Dimension B Dimension C Dimension D Dimension E
