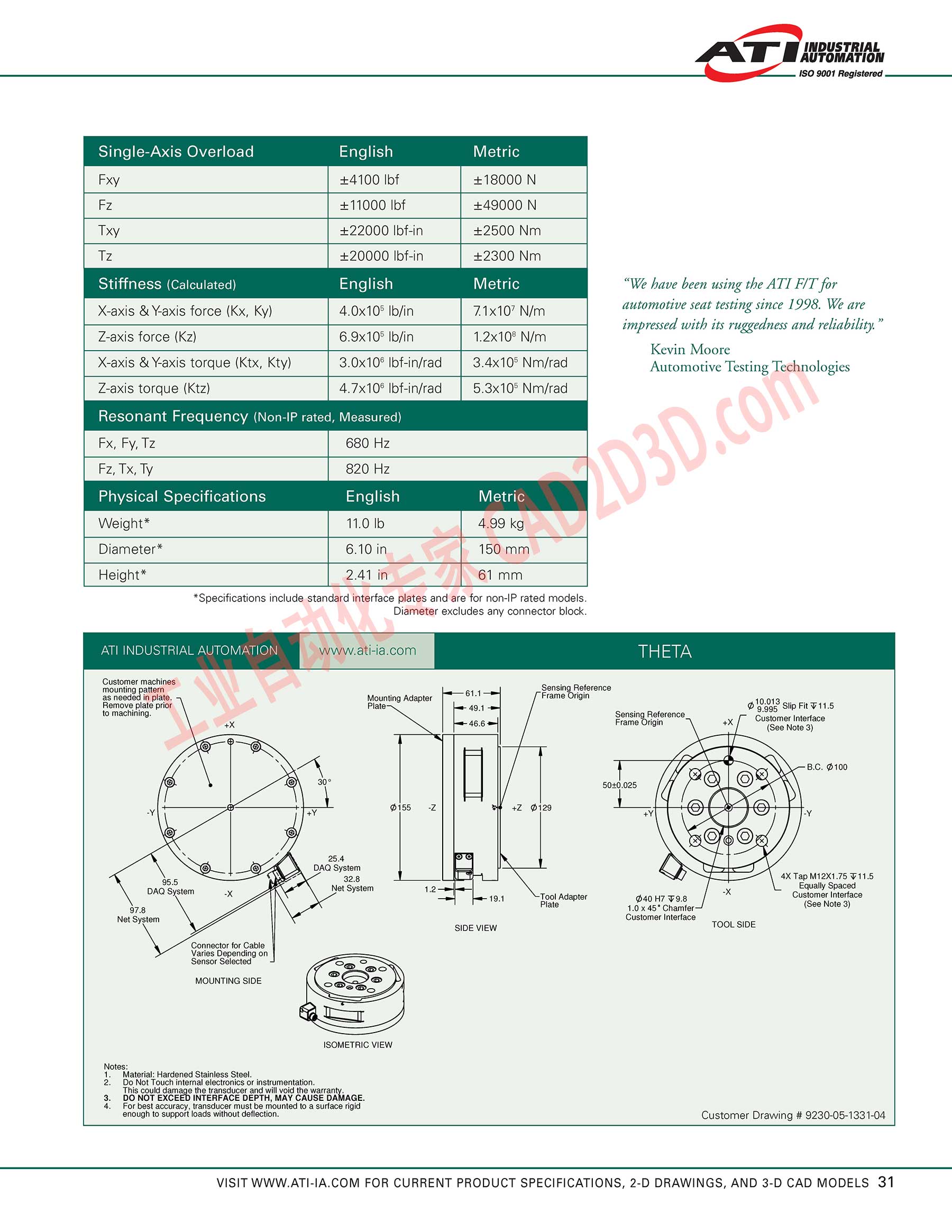

THETA 技术参数 Technical Parameters
Single-Axis Overload English Metric
Fxy +4100 Ibf +18000 N
Ez +11000 Ibf +49000 N
Txy +22000 Ibf-in +2500 Nm
iz +20000 Ibf-in +2300 Nm
Stiffness (Calculated) English Metric
X-axis & Y-axis force (Kx, Ky) 4.0x10° Ib/in 7.1x10” N/m
Z-axis force (Kz) 6.9x10° Ib/in 1.2x10° N/m
X-axis & Y-axis torque (Ktx, Kty) 3.0x10° Ibf-in/rad 3.4x10° Nm/rad
Z-axis torque (Ktz) 4.7x10° |bf-in/rad 5.3x10° Nm/rad
EX, Fy. Tz 680 Hz
Fz, Tx, Ty 820 Hz
Physical Specifications English Metric
Weight* 11.0 Ib 4.99 kg
Diameter* 6.10 in | 150mm
Height* 241 in | 61 mm
*Specifications include standard interface plates and are for non-IP rated models.
Diameter excludes any connector block.
ATl INDUSTRIAL AUTOMATION
INDUSTRIAL
AUTOMATION
1S0 9001 Registered
“We have been using the ATI FIT for
automotive seat testing since 1998. We are
impressed with its ruggedness and reliability.”
Kevin Moore
Automotive Testing Technologies
Customer machines
mounlmgdpznsm
as needed in plate.
Remove plate prior
to machining.
DAQ
9.5
DAQ System
Connector for Cable
Varies Depending on
Sensor Selected
MOUNTING SIDE
enough to support loads without deflection.
254
System
328
Net System
61.1
Mounting Adapter
Plate Y i F
Frame Origin
49.1
46.6 =
+Z @129
19.1 Tool Adapter
: Plate
SIDE VIEW
ISOMETRIC VIEW
Notes:
1. Material: Hardened Stainless Steel.
2. Do Not Touch interal electronics or instrumentation.
This could damage the transducer and will void the warranty.
3. DO NOT EXCEED INTERFACE DEPTH, MAY CAUSE DAMAGE.
4. Forbest acouracy, transducer must be mounted to a surface rigid
Sensing Reference
10013 sip by
Sensing Reference. DonosiSREVILS
Frame Origin Customer Interface
(See Note 3)
B.C. 9100
500.025
4X Tap M12X1.75 ¥ 11.5
Equally Spaced
Customer Interface
P40 H7 9.8 (See Note 3)
1.0 x 45° Chamfer
Customer Interface
TOOL SIDE
Customer Drawing # 9230-05-1331-04
VISIT WWW.ATI-IA.COM FOR CURRENT PRODUCT SPECIFICATIONS, 2-D DRAWINGS, AND 3-D CAD MODELS 31
