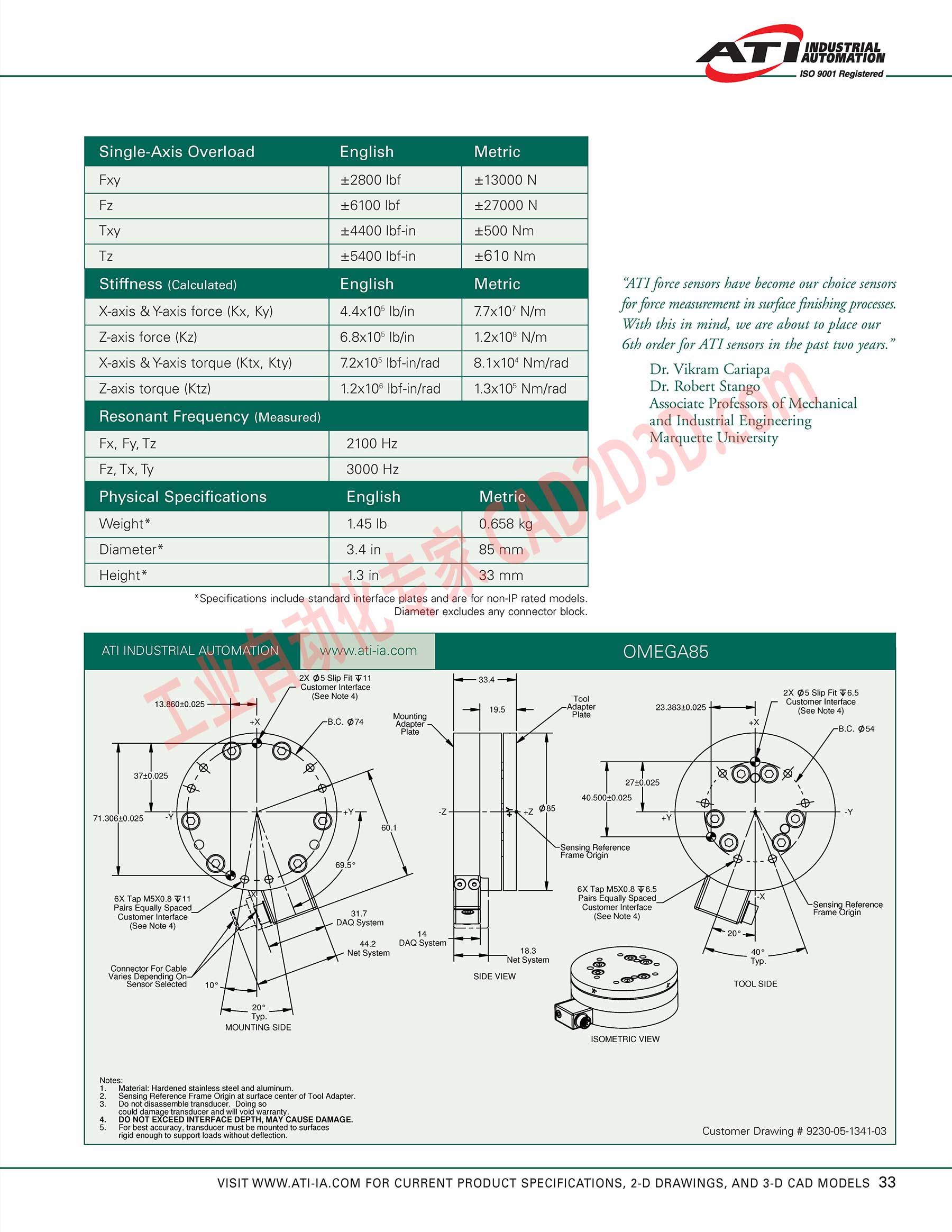

OMEGA85 技术参数 Technical Parameters
Am 一 /sos001 hegistered ~
AT INDUSTRIAL
AUTOMATION
Single-Axis Overload English Metric
Fxy +2800 Ibf +13000 N
Fz +6100 Ibf +27000 N
Txy +4400 Ibf-in +500 Nm
Tz +5400 Ibf-in +610 Nm
Stiffness (Calculated) English Metric AT force sensors have become our choice sensors
TR o o el 44510 Ibjin 77x10 Nm Jor force measurement in surfuce finishing processes.
- —— = With this in mind, we are about to place our
Zaxis force (Ka) OBx108lo/in Lo Gth order for ATI sensors in the past two years.”
X-axis & Y-axis torque (Ktx, Kty) 72x10° Ibf-in/rad 8.1x10* Nm/rad Dr. Vikram Cariapa
Z-axis torque (Ktz) 1.2x10° Ibf-in/rad 1.3x10° Nm/rad Dr. Robert Stango
Associate Professors of Mechanical
and Industrial Engineering
Resonant Frequency (Measured)
Fx, Fy, Tz 2100 Hz Marquette University
Fz,Tx, Ty 3000 Hz
Physical Specifications English Metric
Weight* 145 1b 0.658 kg
Diameter* 3.4in 85 mm
Height* 1.3 in 33 mm
*Specifications include standard interface plates and are for non-IP rated models.
Diameter excludes any connector block.
ATI INDUSTRIAL AUTOMATION
OMEGA85
2X @5 Slip Fit 允 11 33.4
Customer Interface
(See Note 4) Tool
2X @5 Slip Fit ¥6.5
13.860£0.025 Customer Interface
—{ 195 -Adapter 23.38340.025
Mounting Plate (See Note 4)
lapteF
Ps B.C. P54
37+0.025
40.500+0.025
+z 985
71.306£0.025
Sensing Reference
Frame Origin
6X Tap M5X0.8 ¥6.5
Pairs Equally Spaced
Customer Interface
(See Note 4)
6X Tap M5X0.8 ¥ 11
Pairs Equally Spaced
Customer Interface
(See Note 4)
Sensing Reference
317 Frame Origin
DAQ System
14
442 DAQSystem
Net System
183
Net System
SIDE VIEW
Typ.
Connector For Cable /
Varies Depending On
Sensor Selected TOOL SIDE
MOUNTING SIDE
ISOMETRIC VIEW
Notes:
Material: Hardened stainless steel and aluminum.
Sensing Reference Frame Origin at surface center of Tool Adapter.
Do not disassemble transducer. Doing so
could damage transducer and will void warranty.
DO NOT EXCEED INTERFACE DEPTH, MAY CAUSE DAMAGE.
For best accuracy, transducer must be mounted to surfaces
tigid enough to support loads without deflection.
op RN
Customer Drawing # 9230-05-1341-03
VISIT WWW.ATI-IA.COM FOR CURRENT PRODUCT SPECIFICATIONS, 2-D DRAWINGS, AND 3-D CAD MODELS 33
