DAQ Cards
Our DAQ F/T System works with DAQ cards we specify
or with differentially-ended or single-ended analog
inputs on your DAQ hardware; however, differentially-
ended inputs are preferred for the best noise immunity.
Note:
The DAQ F/T outputs amplified, conditioned strain gage signals
to a data acquisition card—not the resolved force and torque
data. ATI software (included) running on the host computer
performs computations to convert the strain gage voltage data
into force/torque data. You must acquire all six strain gage
channels in order to calculate any of the forces and torques.
ATI Supports the Following Bus-Types:
e PCI
e PC| Express
e CompactPCl
e PC Card (PCMCIA)
。 USB
Contact ATI regarding other bus-types. Most bus-types
are available in 16-bit resolution.
Note:
Most laptop computers and PC Card (PCMCIA) peripherals do
not have provisions for proper signal grounding. External
grounding may be necessary to reduce some of the resulting
additional noise.

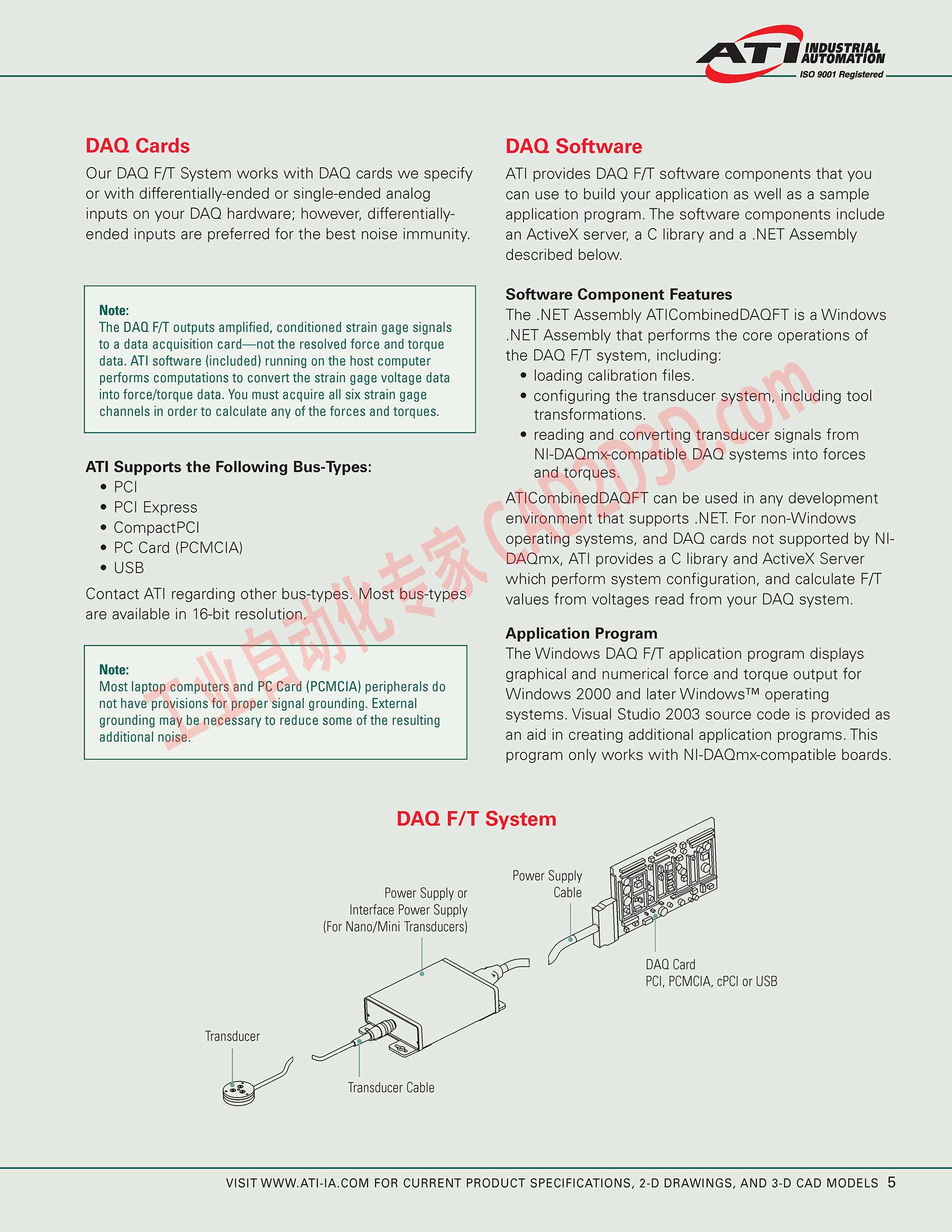

DAQ F/T System
Power Supply or
Interface Power Supply
(For Nano/Mini Transducers)
Transducer
=
=)
Transducer Cable
fi—? INDUSTRIAL
AUTOMATION
DAQ Software
ATI provides DAQ F/T software components that you
can use to build your application as well as a sample
application program. The software components include
an ActiveX server, a C library and a .NET Assembly
described below.
Software Component Features
The .NET Assembly ATICombinedDAQFT is a Windows
.NET Assembly that performs the core operations of
the DAQ F/T system, including:
e |oading calibration files.
e configuring the transducer system, including tool
transformations.
e reading and converting transducer signals from
NI-DAQmx-compatible DAQ systems into forces
and torques.
ATICombinedDAQFT can be used in any development
environment that supports .NET. For non-Windows
operating systems, and DAQ cards not supported by NI-
DAQmx, ATl provides a C library and ActiveX Server
which perform system configuration, and calculate F/T
values from voltages read from your DAQ system.
Application Program
The Windows DAQ F/T application program displays
graphical and numerical force and torque output for
Windows 2000 and later Windows™ operating
systems. Visual Studio 2003 source code is provided as
an aid in creating additional application programs. This
program only works with NI-DAQmx-compatible boards.
Power Supply
DAQ Card
PCL PCMCIA, cPCI or USB
