Net F/T
The Network Force/Torque (Net F/T) sensor system
measures six components of force and torque (Fx, Fy,
Fz, Tx, Ty, Tz). The Net F/T provides an EtherNet/IP™
and CAN bus communication interface and is
compatible with standard Ethernet. The Net F/T system
is available with all of our transducer models.
Product Features
e Fully ODVA™-compliant EtherNet/IP interface.
e Environmental sealing is available. The Net F/T
interface (Net Box) is sealed to IP65 (water splash-
proof), most Net F/T transducers and cables can be
sealed to IP68 (submergibility in fresh water, to a
depth of 10 meters).
Powered by Power over Ethernet (PoE) or by an
external power supply (11VDC to 24VDC).
Multiple transducer calibrations can be permanently
stored in the system and can be selected by the user.
Product Advantages
Multiple Interfaces: Ethernet, EtherNet/IP and CAN
bus, to support a wide range of automation and
research applications. PROFINET interface available soon.

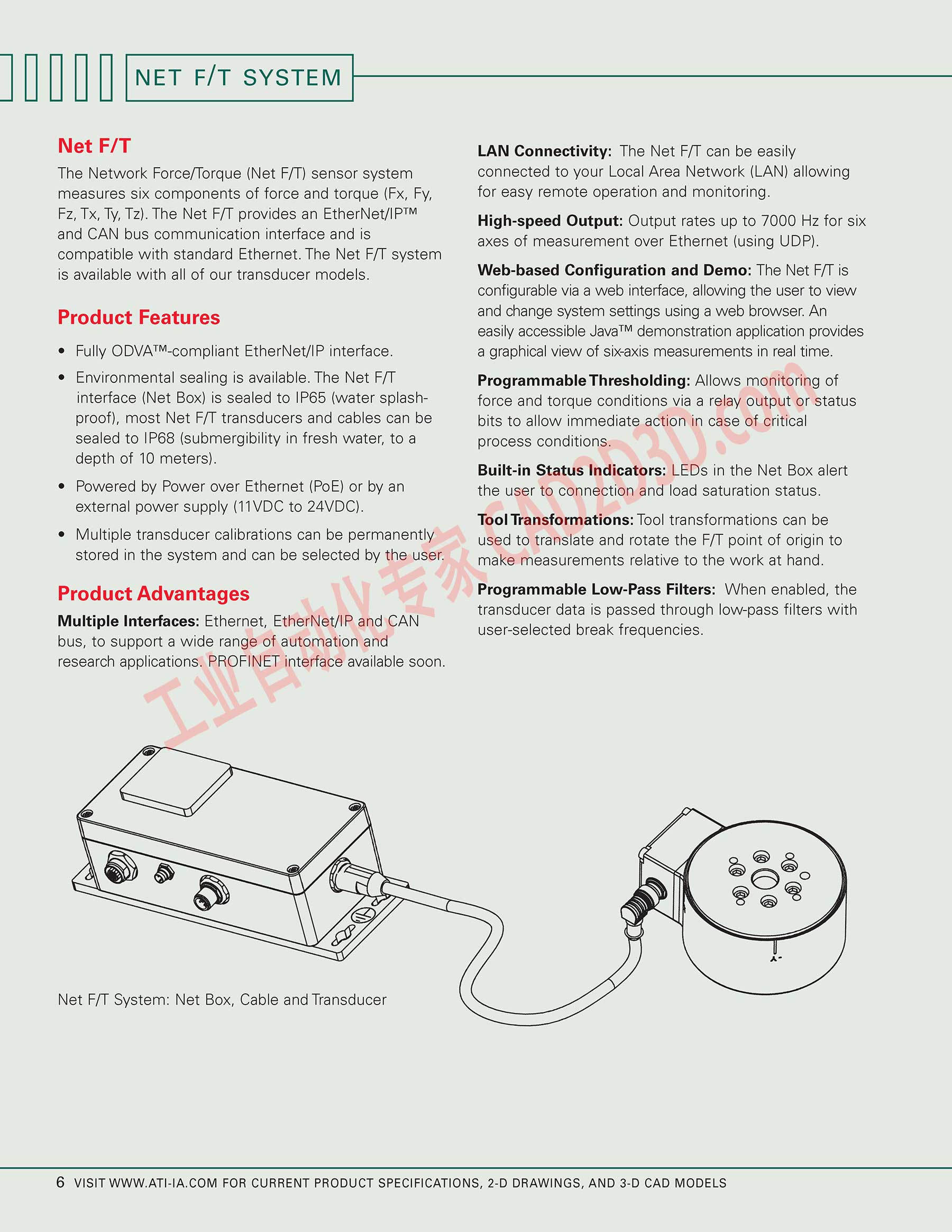

Net F/T System: Net Box, Cable and Transducer
LAN Connectivity: The Net F/T can be easily
connected to your Local Area Network (LAN) allowing
for easy remote operation and monitoring.
High-speed Output: Output rates up to 7000 Hz for six
axes of measurement over Ethernet (using UDP).
Web-based Configuration and Demo: The Net F/T is
configurable via a web interface, allowing the user to view
and change system settings using a web browser. An
easily accessible Java™ demonstration application provides
a graphical view of six-axis measurements in real time.
Programmable Thresholding: Allows monitoring of
force and torque conditions via a relay output or status
bits to allow immediate action in case of critical
process conditions.
Built-in Status Indicators: LEDs in the Net Box alert
the user to connection and load saturation status.
Tool Transformations: Tool transformations can be
used to translate and rotate the F/T point of origin to
make measurements relative to the work at hand.
Programmable Low-Pass Filters: \/Vhen enabled, the
transducer data is passed through low-pass filters with
user-selected break frequencies.
