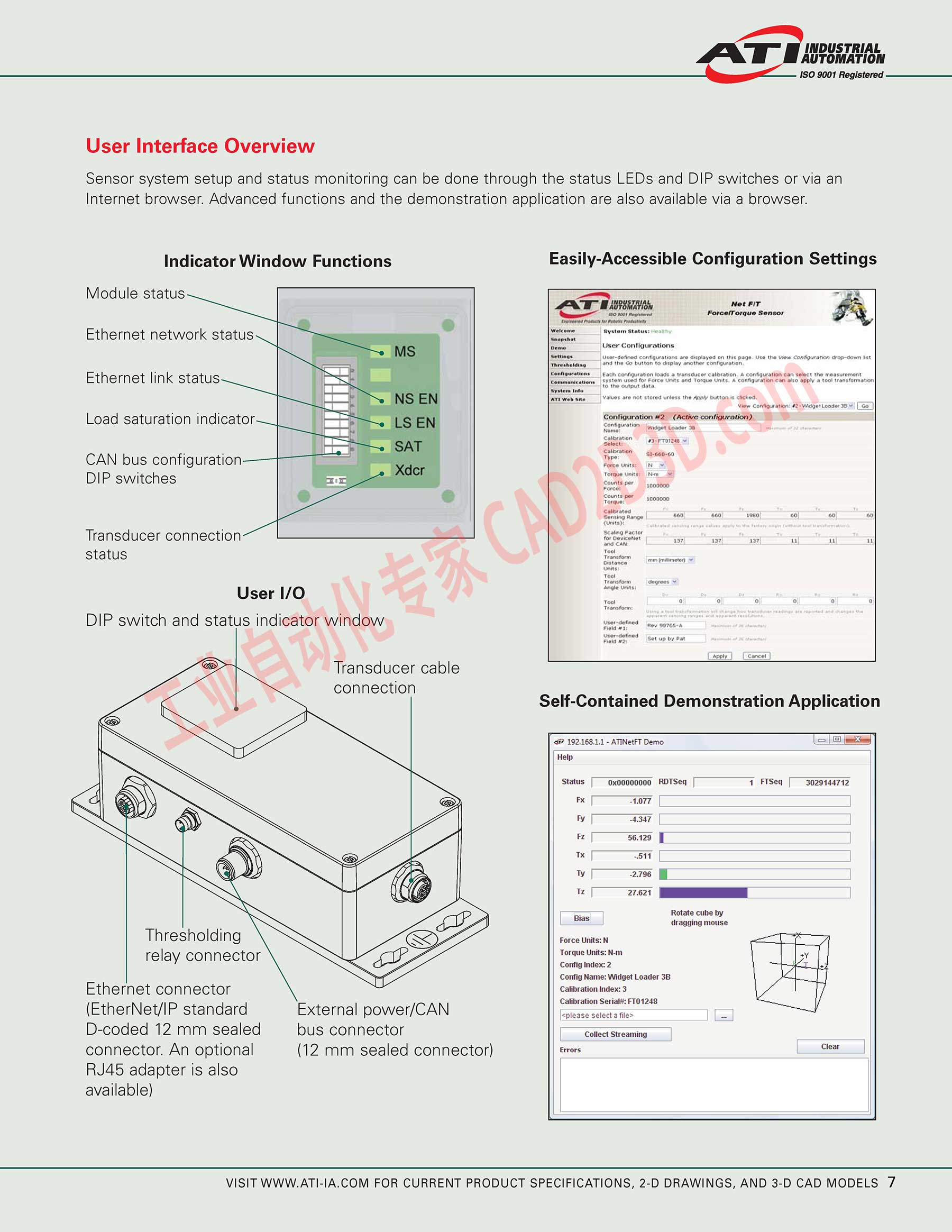

User Interface Overview
AUTOMATION
ISO 9001 Registered
Sensor system setup and status monitoring can be done through the status LEDs and DIP switches or via an
Internet browser. Advanced functions and the demonstration application are also available via a browser.
Indicator Window Functions
Module status
Ethernet network status
Ethernet link status
Load saturation indicator
CAN bus configuration
DIP switches
Transducer connection
status
User I/0
DIP switch and status indicator window
Transducer cable
connection
Thresholding
relay connector
Ethernet connector
(EtherNet/IP standard
D-coded 12 mm sealed
connector. An optional
RJ45 adapter is also
available)
External power/CAN
bus connector
(12 mm sealed connector)
