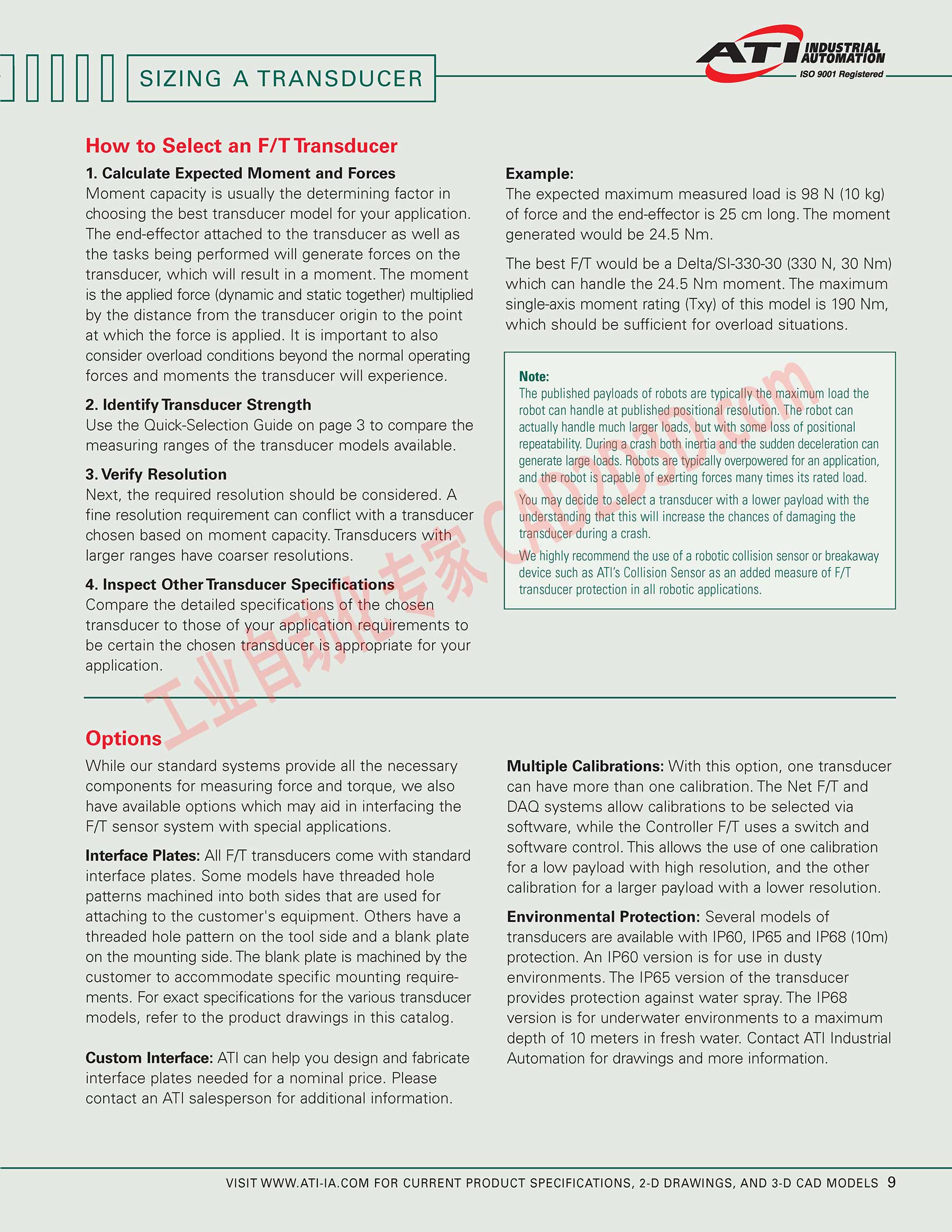

选型方法 SIZING A TRANSDUCER

选型方法 SIZING A TRANSDUCER

10000 How to Select an F/T Transducer 1. Calculate Expected Moment and Forces Moment capacity is usually the determining factor in choosing the best transducer model for your application. The end-effector attached to the transducer as well as the tasks being performed will generate forces on the transducer, which will result in a moment. The moment is the applied force (dynamic and static together) multiplied by the distance from the transducer origin to the point at which the force is applied. It is important to also consider overload conditions beyond the normal operating forces and moments the transducer will experience. 2. Identify Transducer Strength Use the Quick-Selection Guide on page 3 to compare the measuring ranges of the transducer models available. 3. Verify Resolution Next, the required resolution should be considered. A fine resolution requirement can conflict with a transducer chosen based on moment capacity. Transducers with larger ranges have coarser resolutions. 4. Inspect Other Transducer Specifications Compare the detailed specifications of the chosen transducer to those of your application requirements to be certain the chosen transducer is appropriate for your application. Options While our standard systems provide all the necessary components for measuring force and torque, we also have available options which may aid in interfacing the F/T sensor system with special applications. Interface Plates: All F/T transducers come with standard interface plates. Some models have threaded hole patterns machined into both sides that are used for attaching to the customer's equipment. Others have a threaded hole pattern on the tool side and a blank plate on the mounting side. The blank plate is machined by the customer to accommodate specific mounting require- ments. For exact specifications for the various transducer models, refer to the product drawings in this catalog. Custom Interface: ATI can help you design and fabricate interface plates needed for a nominal price. Please contact an ATl salesperson for additional information. K-.—? INDUSTRIAL AUTOMATION SIZING A TRANSDUCER 150 9001 Rogistered — Example: The expected maximum measured load is 98 N (10 kg) of force and the end-effector is 25 cm long. The moment generated would be 24.5 Nm. The best F/T would be a Delta/SI-330-30 (330 N, 30 Nm) which can handle the 24.5 Nm moment. The maximum single-axis moment rating (Txy) of this model is 190 Nm, which should be sufficient for overload situations. Note: The published payloads of robots are typically the maximum load the robot can handle at published positional resolution. The robot can actually handle much larger loads, but with some loss of positional repeatability. During a crash both inertia:and the sudden deceleration can generate large loads. Robots are typically overpowered for an application, and the robot is capable of exerting forces many times its rated load. You may decide to select a transducer with a lower payload with the understanding that this will increase the chances of damaging the transducer during a crash. We highly recommend the use of a robotic collision sensor or breakaway device such as ATl's Collision Sensor as an added measure of F/T transducer protection in all robotic applications. Multiple Calibrations: \ith this option, one transducer can have more than one calibration. The Net F/T and DAQ systems allow calibrations to be selected via software, while the Controller F/T uses a switch and software control. This allows the use of one calibration for a low payload with high resolution, and the other calibration for a larger payload with a lower resolution. Environmental Protection: Several models of transducers are available with IP60, IP65 and IP68 (10m) protection. An IP60 version is for use in dusty environments. The IP65 version of the transducer provides protection against water spray. The IP68 version is for underwater environments to a maximum depth of 10 meters in fresh water. Contact ATl Industrial Automation for drawings and more information. VISIT WWW.ATI-IA.COM FOR CURRENT PRODUCT SPECIFICATIONS, 2-D DRAWINGS, AND 3-D CAD MODELS 9
