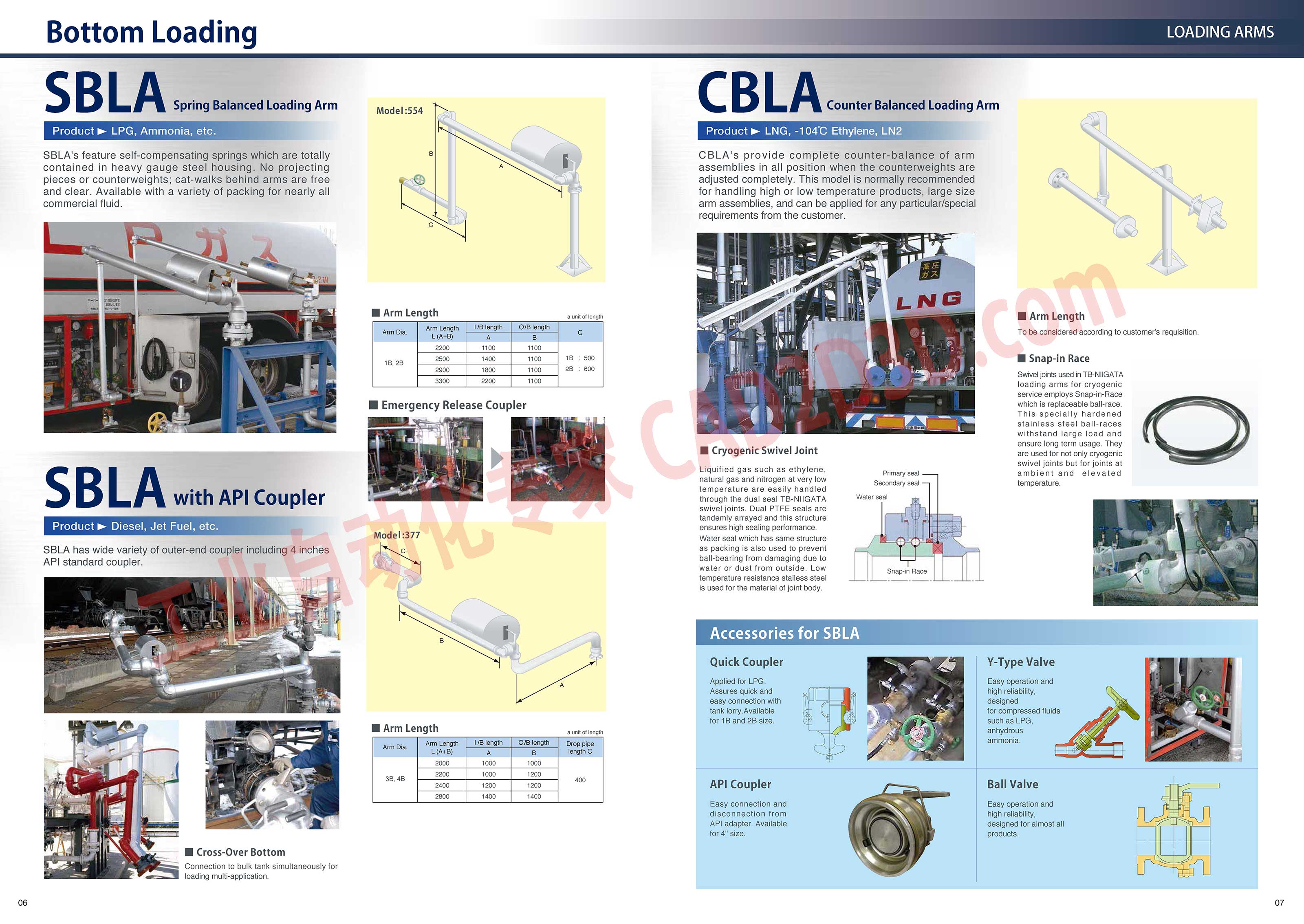

06 Bottom Loading S B L A Spring Balanced Loading Arm duct » LPG, Ammon G, SBLA's feature self-compensating springs which are totally contained in heavy gauge steel housing. No projecting pieces or counterweights; cat-walks behind arms are free and clear. Available with a variety of packing for nearly all commercial fluid. S B LA with API Coupler Product » Diesel, Jet Fuel, etc. | SBLA has wide variety of outer-end coupler including 4 inches API standard coupler. M Cross-Over Bottom Connection to bulk tank simultaneously for loading multi-application. Model:554 B i i 人 全 C 国 Arm Length aunitoflength Am Length | _UBIength | OBlength Arm Dia. TAB) - = c 2200 1100 1100 18,28 2500 1400 1100 1B : 500 2900 1800 1100 2B : 600 3300 2200 1100 B Arm Length 男 Emergency Release Coupler aunitof length Arm Dia. Arm Length L (A+B) 2000 1/B length O/B length A 1000 B 1000 3B, 4B 2200 1000 1200 2400 1200 1200 2800 1400 1400 Drop pipe length C 400 c B L A Counter Balanced Loading Arm oduct > LN 04T Ethylene, LN2 CBLA's provide complete counter-balance of arm assemblies in all position when the counterweights are adjusted completely. This model is normally recommended for handling high or low temperature products, large size arm assemblies, and can be applied for any particular/special requirements from the customer. M Cryogenic Swivel Joint Liquified gas such as ethylene, natural gas and nitrogen at very low temperature are easily handled through the dual seal TB-NIIGATA swivel joints. Dual PTFE seals are tandemly arrayed and this structure ensures high sealing performance. Water seal which has same structure as packing is also used to prevent ball-bearing from damaging due to water or dust from outside. Low temperature resistance stailess steel il 5 kil is used for the material of joint body. Primary seal Secondary seal Water seal Accessories for SB LOADING M Arm Length To be considered according to customer's requisition M Snap-in Race Swivel joints used in TB-NIIGATA loading arms for cryogenic service employs Snap-in-Race which is replaceable ball-race. This specially hardened stainless steel ball-races withstand large load and ensure long term usage. They are used for not only cryogenic swivel joints but for joints at ambient and elevated temperature. Quick Coupler Y-Type Valve Applied for LPG. Easy operation and Assures quick and high reliability, easy connection with designed tank lorry. Available for compressed fluids for 1B and 2B size. such as LPG, anhydrous ammonia. API Coupler Ball Valve 站 & Easy connection and Easy operation and disconnection from high reliability, 和 APlI adapter. Available designed for almost all for 4" size. products. 07
