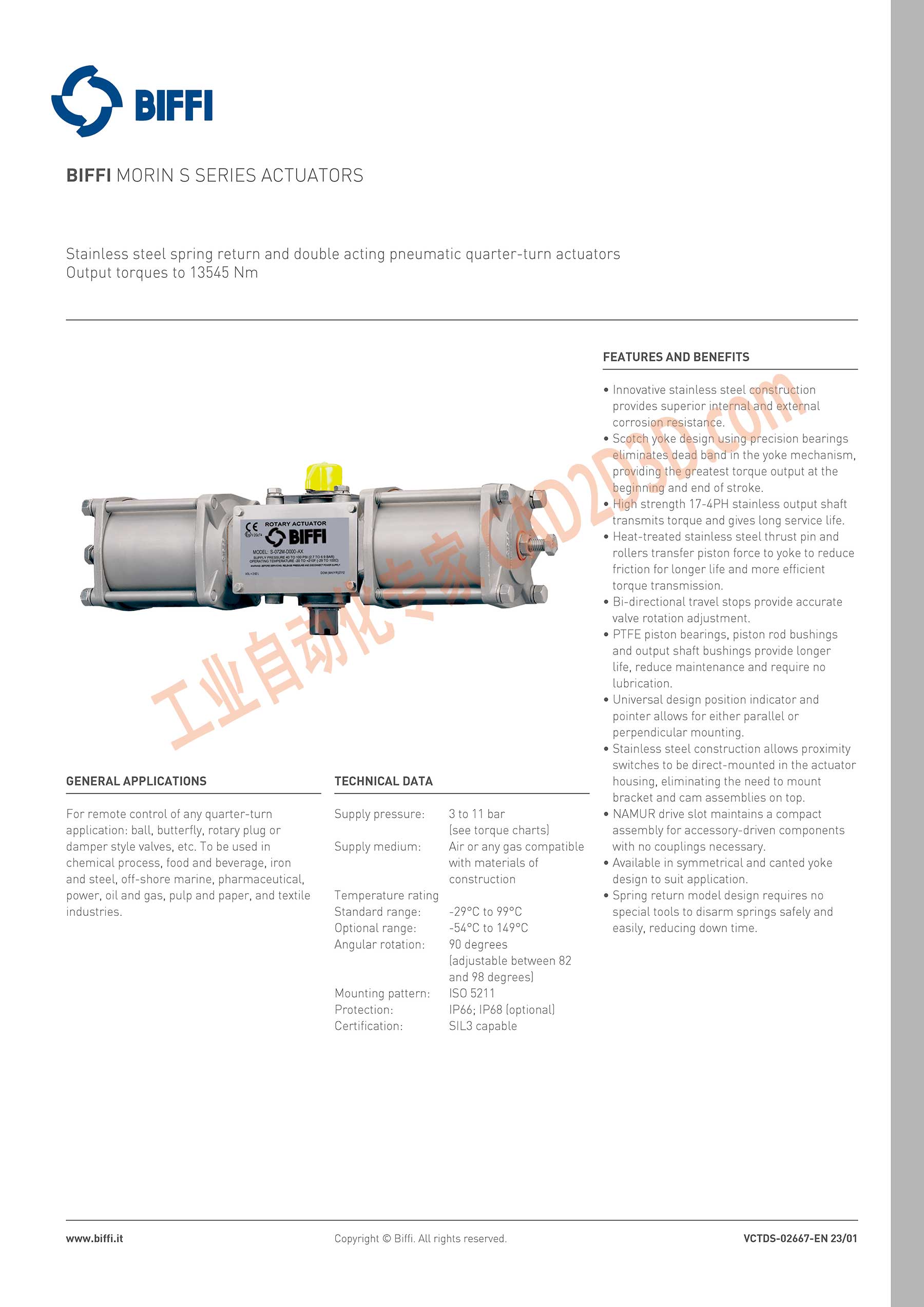

BIFFI MORIN S SERIES ACTUATORS
Stainless steel spring return and double acting pneumatic quarter-turn actuators
Output torques to 13545 Nm
GENERAL APPLICATIONS
TECHNICAL DATA
For remote control of any quarter-turn
application: ball, butterfly, rotary plug or
damper style valves, etc. To be used in
chemical process, food and beverage, iron
and steel, off-shore marine, pharmaceutical,
power, oil and gas, pulp and paper, and textile
industries.
3to 11 bar
[see torque charts)
Air or any gas compatible
with materials of
construction
Supply pressure:
Supply medium:
Temperature rating
Standard range: -29°C to 99°C
Optional range: -54°C to 149°C
Angular rotation: 90 degrees
ladjustable between 82
and 98 degrees)
Mounting pattern: SO 5211
Protection: IP66; 1P68 (optional)
Certification: SIL3 capable
FEATURES AND BENEFITS
* Innovative stainless steel
hh strength 17-4PH stainless output shaft
transmits torque and gives long service life.
Heat-treated stainless steel thrust pin and
rollers transfer piston force to yoke to reduce
riction for longer life and more efficient
torque transmission.
Bi-directional travel stops provide accurate
valve rotation adjustment.
PTFE piston bearings, piston rod bushings
and output shaft bushings provide longer
ife, reduce maintenance and require no
ubrication.
Universal design position indicator and
pointer allows for either parallel or
perpendicular mounting.
Stainless steel construction allows proximity
switches to be direct-mounted in the actuator
housing, eliminating the need to mount
bracket and cam assemblies on top.
* NAMUR drive slot maintains a compact
assembly for accessory-driven components
with no couplings necessary.
* Available in symmetrical and canted yoke
design to suit application.
* Spring return model design requires no
special tools to disarm springs safely and
easily, reducing down time.
.
°
www.biffi.it
Copyright © Biffi. All rights reserved
VCTDS-02667-EN 23/01
