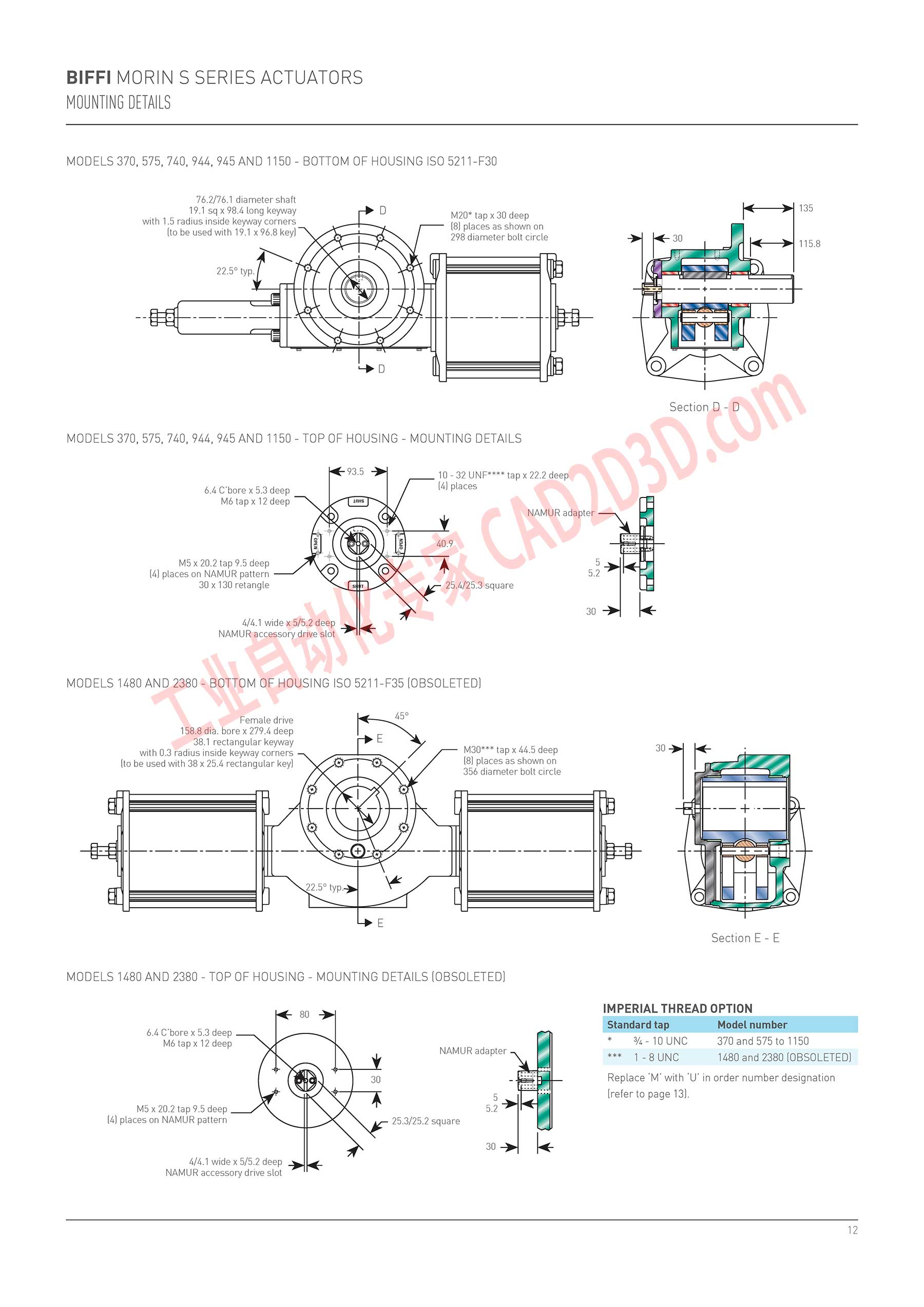

BIFFI MORIN S SERIES ACTUATORS
MOUNTING DETAILS
MODELS 370, 575, 740, 944, 945 AND 1150 - BOTTOM OF HOUSING IS0 5211-F30
76.2/76.1 diameter shaft
19.1 sqx 98.4 long keyway
with 1.5 radius inside keyway corners
[to be used with 19.1 x 96.8 key)
\
22.5°typ,
135
M20* tap x 30 deep °
[8] places as shown on
298 diameter bolt circle
SectionD - D
TING DETAILS
10 - 32 UNF**** tap x 22.2 deep
(4) places
6.4 C'bore x 5.3 deep
Mé tap x 12 deep
NAMUR adapter
409
A
25.4/25.3 square
M5 x 20.2 tap 9.5 deep
(4) places on NAMUR pattern
30 % 130 retangle
30
4/4.1 wide x5/5.2 deep
NAMUR accessory drive slot
MODELS 1480 AND 2380 - BOTTOM OF HOUSING ISQ 5211-F35 (0BSOLETED)
Female drive 45°
158.8dia. bore x 279.4 deep
38.1 rectangular keyway »E -
with 0.3 radius inside keyway corners M30*** tap x 44.5 deep 30
[to be used with 38 x 25.4 rectangular key) (8] places as shown on
356 diameter bolt circle
N 22.5° typ.»! \k A
|
] 市 [ |
> E
Section E - E
MODELS 1480 AND 2380 - TOP OF HOUSING - MOUNTING DETAILS (0BSOLETED]
80 IMPERIAL THREAD OPTION
o 5
6.4 C'bore x 5.3 deep L o6
Mé tap x 12 deep nt * % - 10 UNC 370 and 575 to 1150
Reaper =+ 1-8UNC 1480 and 2380 (OBSOLETED)
30 Replace ‘"M’ with ‘U’ in order number designation
5 [refer to page 13).
M5 x 20.2 tap 9.5 deep 5.2
(4) places on NAMUR pattern 25.3/25.2 square
30
4/4.1 wide x 5/5.2 deep
NAMUR accessory drive slot >
