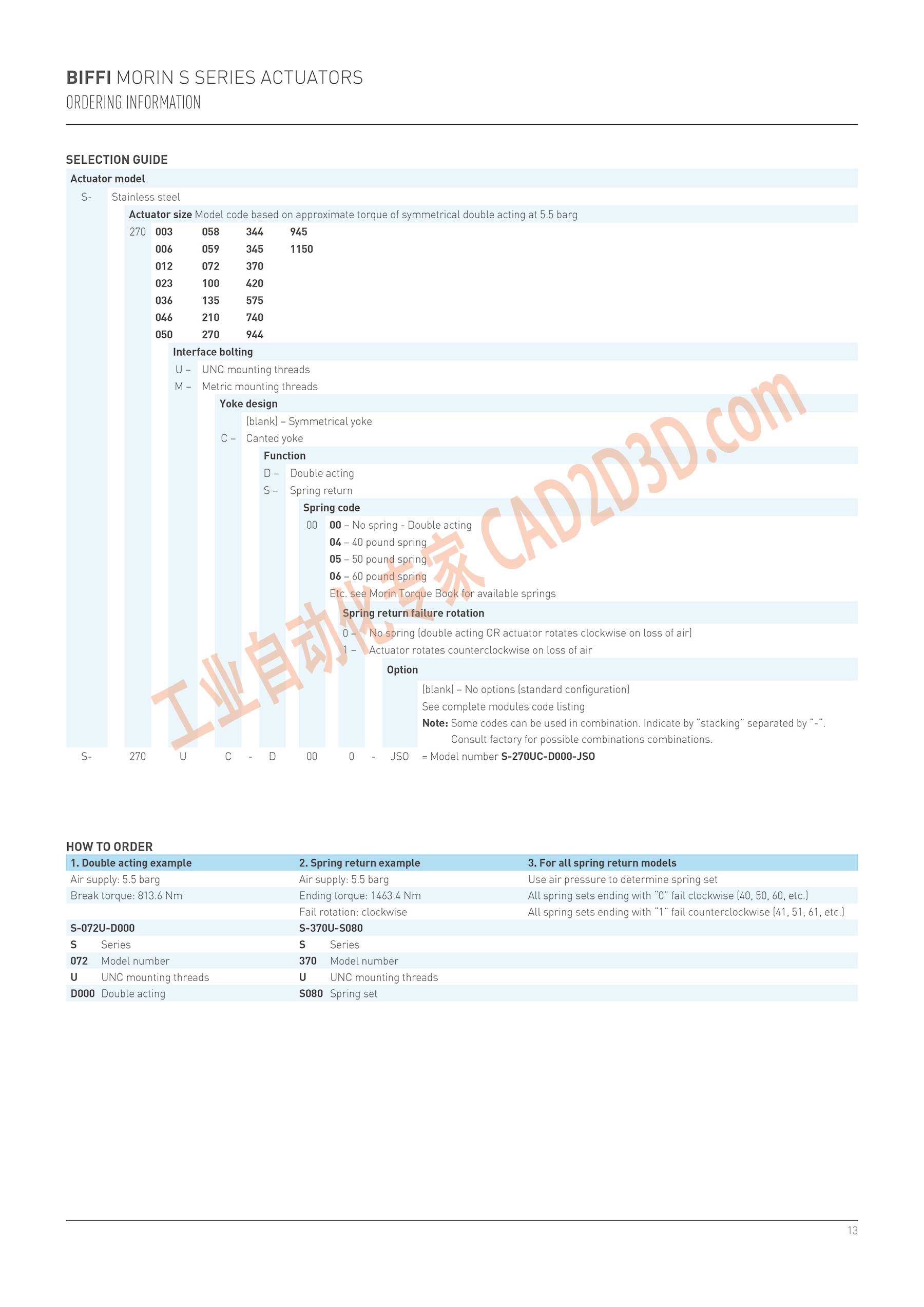

BIFFI MORIN S SERIES ACTUATORS
ORDERING INFORMATION
SELECTION GUIDE
Actuator model
S- Stainless steel
Actuator size Model code based on approximate torque of symmetrical double acting at 5.5 barg
270 003 058 344 945
006 059 345 1150
012 072 370
023 100 420
036 135 575
046 210 740
050 270 944
Interface bolting
U- UNC mounting threads
M- Metric mounting threads
Yoke design
[blank] - Symmetrical yoke 人
C- Cantedyoke
Function AN %
D- Double acting
S- Spring return
Spring code
00 00 - No spring - Double acting
04 - 40 pound DA
05 - 50 pou
06 -60 po
e ravailable springs
sprin
returi e rotation
0 ring [double acting OR actuator rotates clockwise on loss of air)
- " Actuator rotates counterclockwise on loss of air
\ Option
[blank] - No options [standard configuration)
See complete modules code listing
Note: Some codes can be used in combination. Indicate by “stacking” separated by "-".
S- 270 u
Consult factory for possible combinations combinations.
c - D 00 0 - JSO =Model number S$-270UC-D000-JSO
HOW TO ORDER
Air supply: 5.5 barg Air supply: 5.5 barg Use air pressure to determine spring set
Break torque: 813.6 Nm Ending torque: 1463.4 Nm All spring sets ending with “0" fail clockwise (40, 50, 60, etc.)
Fail rotation: clockwise All spring sets ending with “1” fail counterclockwise (41,51, 61, etc.)
S-072U-D000 S-370U-S080
S Series S Series
072 Model number 370 Model number
u UNC mounting threads u UNC mounting threads
D000 Double acting S080 Spring set
