瑞士斯达拉格(Starrag)卧式5轴加工中心Ecospeed机床技术规格书和主轴论文

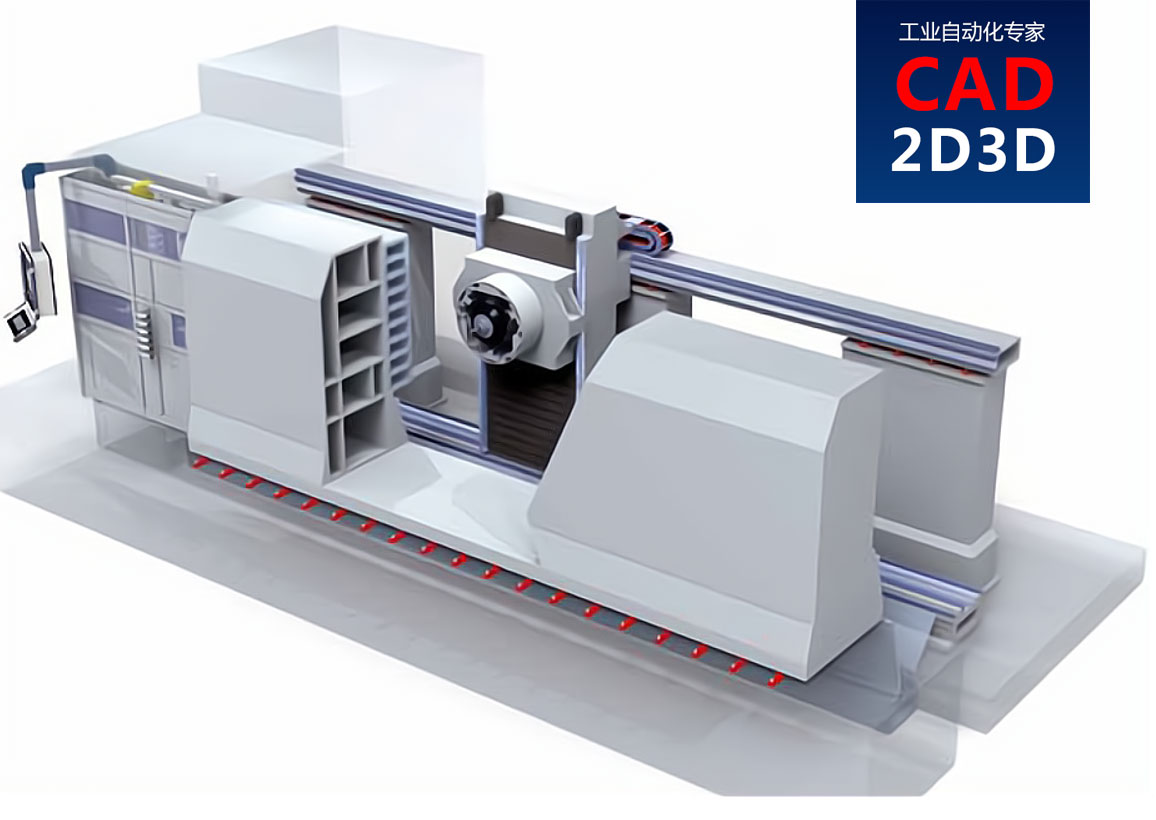

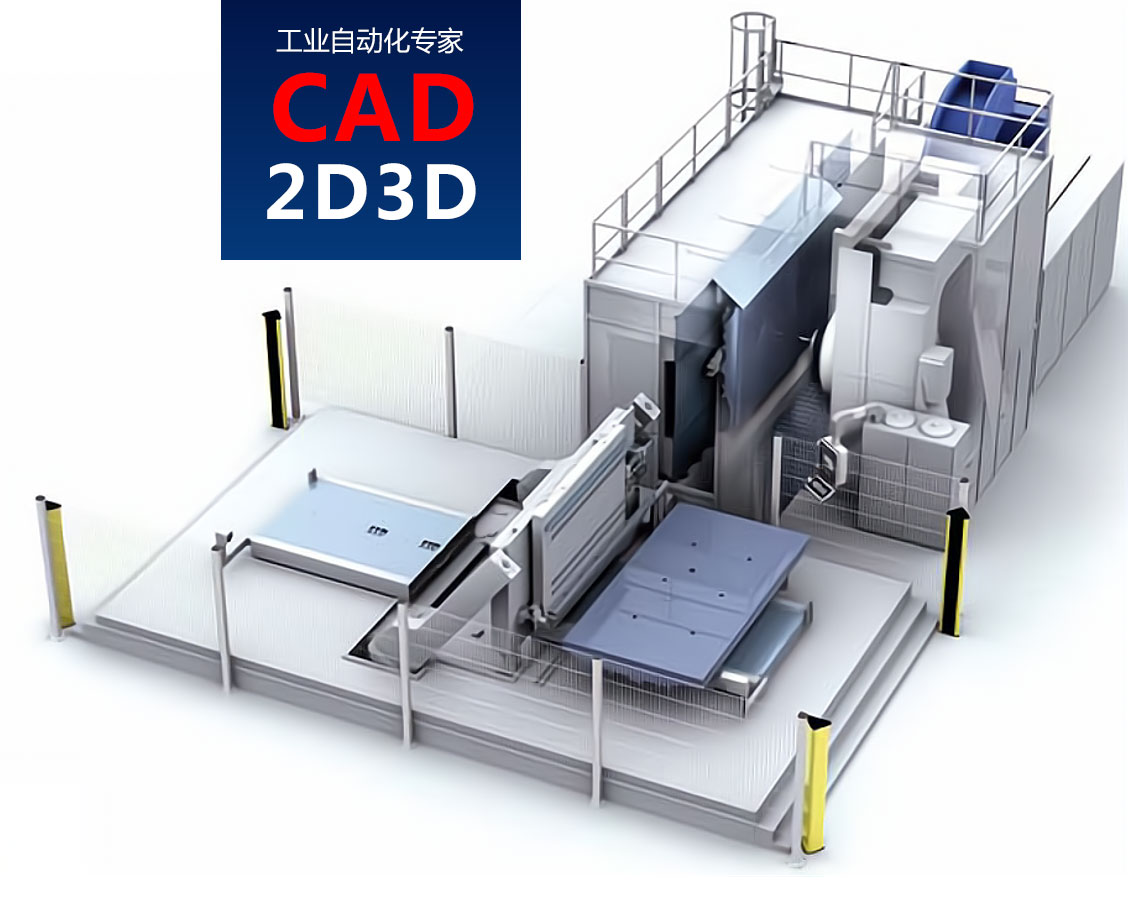

卧式5轴加工中心Ecospeed系列,专门用来加工航空航天类零件,工作台竖直,可以线外装夹工件,快速上下料,主轴采用Sprint Z3机械结构,Sprint Z3球头是由3个直线模组并联驱动的,直线模组和球头之间采用连杆连接在一起,主轴可以在±40°球锥内活动。

Ecospeed系列机床有点与众不同,特别是主轴机械结构这一块,对Sprint Z3运动机构感兴趣的,请直接下载论文,自行研究。

机床Ecospeed技术规格书和主轴 Sprint Z3论文下载地址:见页面底部 下载地址

瑞士斯达拉格(Starrag)卧式5轴加工中心Ecospeed系列机床及主轴技术规格书

瑞士斯达拉格(Starrag)卧式5轴加工中心Ecospeed系列机床及主轴技术规格书

主轴采用Sprint Z3机械机构。

The parallel kinematic concept

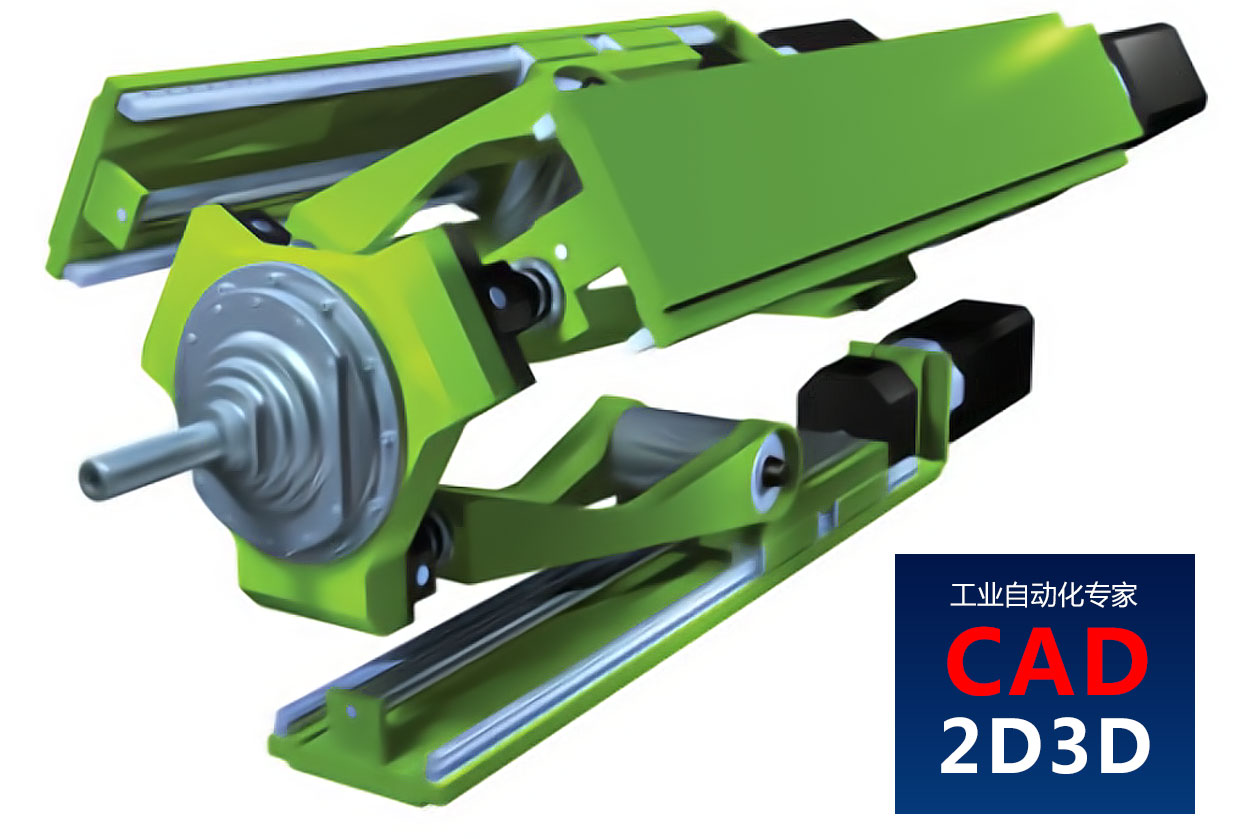

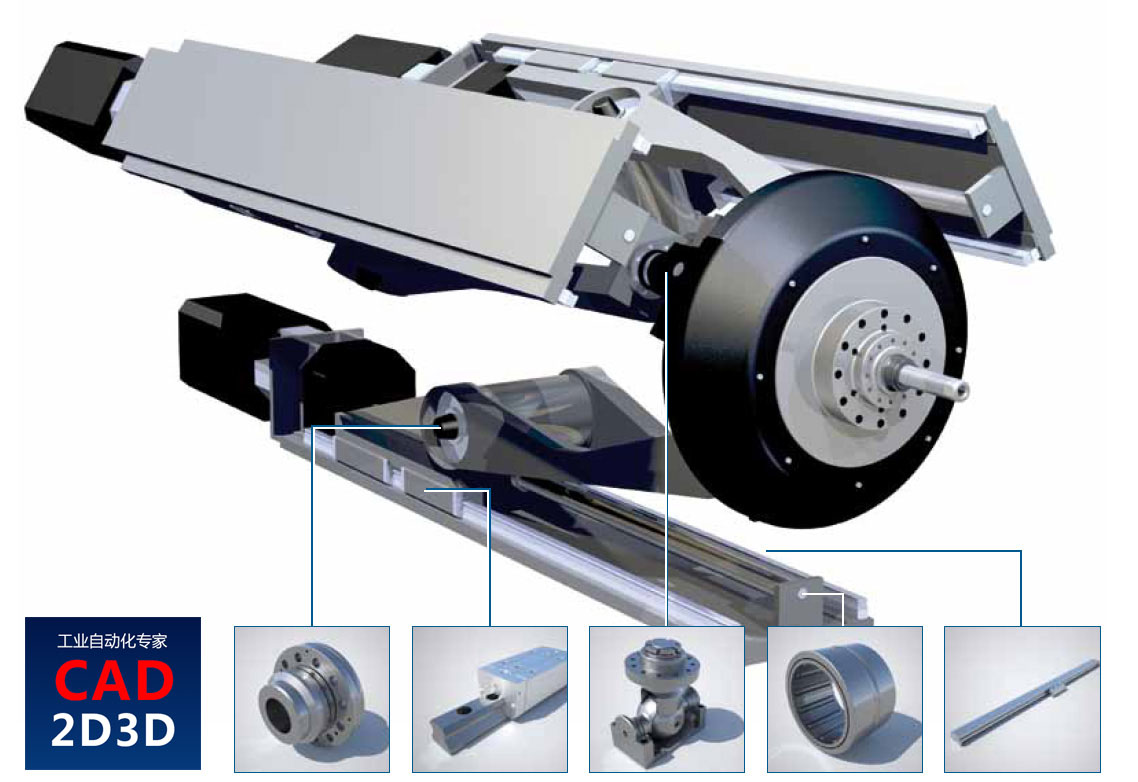

Three parallel linear axis drives are mounted radially equispaced in a barrel-shaped headstock. The spindle platform is connected to each drive by means of rigid levers with a simple pivot at one end, and a ball joint at the other end. A high performance motor spindle is mounted to the spindle platform.

The headstock is mounted horizontally and moves vertically inside the column. This arrangement offers minimum movable mass resulting in unprecedented dynamic characteristics.

When all three axes are moved equally and simultaneously,the spindle is moved in a straight line in Z-direction.

If the three axes move differentially, the spindle platform will be tilted in the A/B-planes. Synchronized motion of the three Z axes allows the spindle to describe any path within a spherical cone of ± 40 degrees.

Work area

- Cubic working area through linear motion of X-, Y and Z-axis.

- Conical working envelope with ± 40 degrees of angularfreedom.

瑞士斯达拉格(Starrag)卧式5轴加工中心Ecospeed系列机床及主轴技术规格书

瑞士斯达拉格(Starrag)卧式5轴加工中心Ecospeed系列机床及主轴技术规格书
