底部装车 A型框架式装车臂

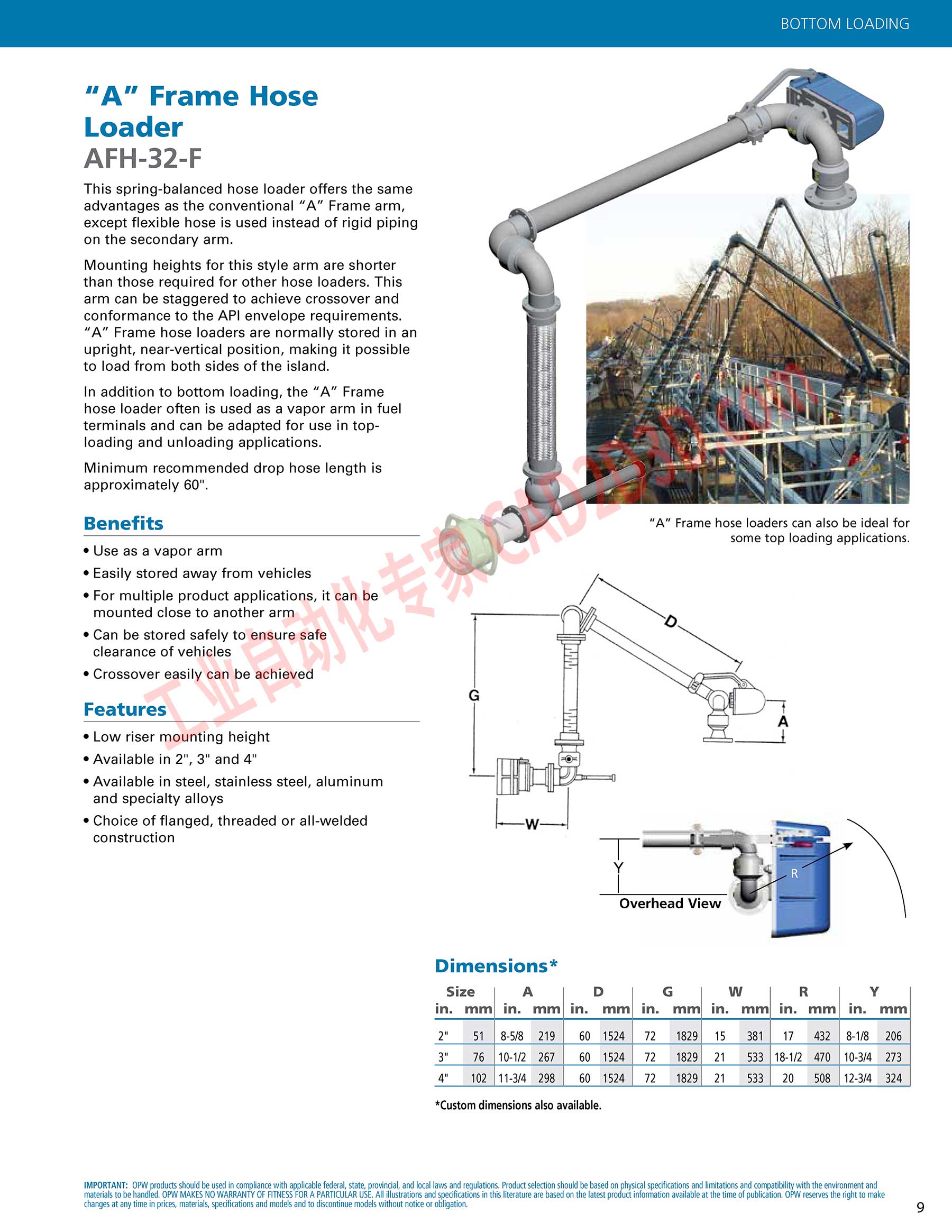

“A" Frame Hose
Loader
AFH-32-F
This spring-balanced hose loader offers the same
advantages as the conventional “A” Frame arm,
except flexible hose is used instead of rigid piping
on the secondary arm.
Mounting heights for this style arm are shorter
than those required for other hose loaders. This
arm can be staggered to achieve crossover and
conformance to the APl envelope requirements.
“A"” Frame hose loaders are normally stored in an
upright, near-vertical position, making it possible
to load from both sides of the island.
In addition to bottom loading, the “A” Frame
hose loader often is used as a vapor arm in fuel
terminals and can be adapted for use in top-
loading and unloading applications.
Minimum recommended drop hose length is
approximately 60".
“A" Frame hose loaders can also be ideal for
Benefits
some top loading applications.
e Use as a vapor arm
Easily stored away from vehicles
¢ For multiple product applications, it can be
mounted close to another arm
¢ Can be stored safely to ensure safe
clearance of vehicles
* Crossover easily can be achieved
Features
* Low riser mounting height
® Available in 2", 3" and 4"
® Available in steel, stainless steel, aluminum
and specialty alloys
¢ Choice of flanged, threaded or all-welded
construction
Overhead View
Dimensions*
Size A D G w R Y
n. mm in. mm in mm in， mm In mm| in. mm| in. mm
2" 51 | 858 219 60 1524 | 72 1829| 15 381 | 17 432 | 81/8 206
3" 76 |10-V2 267 60 1524 | 72 1829| 21 533 |18-1/2 470 | 10-34 273
4" 102 | 11-3/4 298 60 1524 | 72 1829 21 533 | 20 508 | 12-3/4 324
*Custom dimensions also available.
