装卸臂概述
Counterbalance
Materials and seals must be generally
compatible. A properly balanced loading
arm will allow operators to move the arm
into and out of the loading position
effortlessly and safely.
790 Torsion Spring
* Safe, Easy Spring Adjustment
¢ Self Contained and Space Efficient
* Wide Range of Motion
* No Special Tools Required
Pneumatic Cylinder
® |[deal for Heavy Load
Applications
¢ Eliminates Strenuous
Pushing, Pulling,
or Lifting
® Push-Button
Pendant
Controller
Inlet Connection
* Typically 150-pound flange
* Some applications may require
300-pound flange
Drylok™
o Driest disconnect in the industry
(less than 1cc from 3" fitting)
* Ideal for high-pressure applications
* 360° orientation ensures seating
and alignment
* Rugged design ideal for loading rack
NTS Series Breakaway
¢ Added Protection of People,
Equipment and the Environment
Durable and Reusable
High Flow Rate

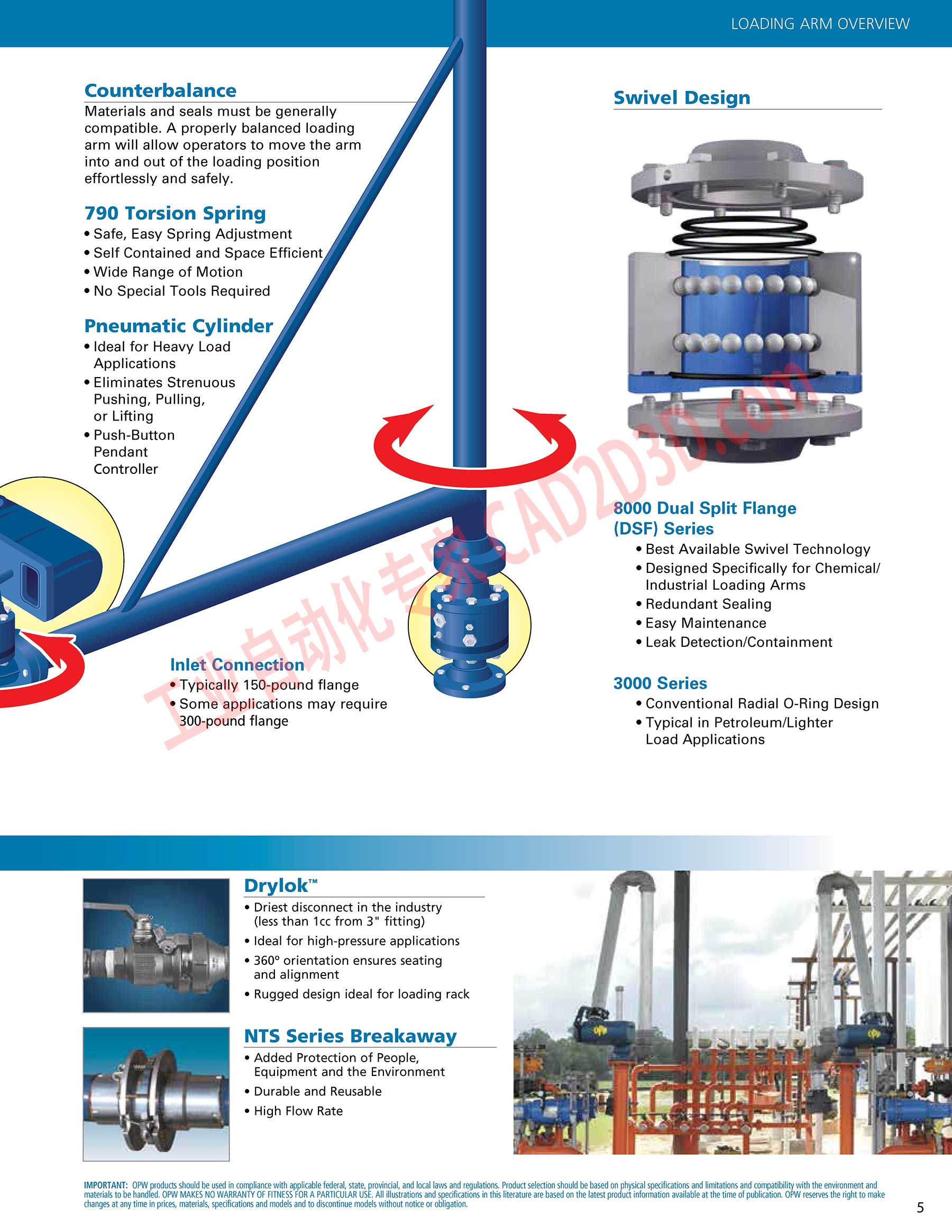

LOADING ARM OVERVIEW
Swivel Design
8000 Dual Split Flange
(DSF) Series
* Best Available Swivel Technology
¢ Designed Specifically for Chemical/
Industrial Loading Arms
¢ Redundant Sealing
* Easy Maintenance
¢ Leak Detection/Containment
3000 Series
¢ Conventional Radial O-Ring Design
* Typical in Petroleum/Lighter
Load Applications
IMPORTANT: OPW products should be used in compliance with applicable federal, state, provincial, and local laws and regulations. Product selection should be based on physical specifications and limitations and compatibility with the environment and
materials to be handled. OPW MAKES NO WARRANTY OF FITNESS FOR A PARTICULAR USE. All illustrations and specifications in this literature are based on the latest product information available at the time of publication. OPW reserves the right to make
changes at any time in prices, materials, specifications and models and to discontinue models without notice or obligation. 5
